AIMB-788G2-00A1

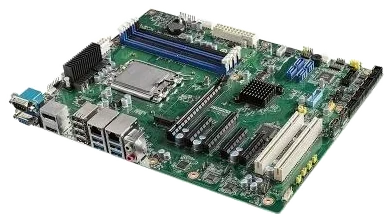

Advantech AIMB-788 ATX industrial motherboard designed for 0 ~ 60 °C environments, with remote out-of-band iBMC power management and AWS IoT Greengrass certification. The board carries an LGA1700 socket for 12th/13th/14th Gen Intel Core and Series 2 processors, the Q670E chipset, 4 DDR4 3200 memory slots up to 128GB, three independent displays and a wide range of PCIe/PCI expansion slots.
- 0 ~ 60 °C operating range depending on CPU load and the cooling solution
- Advantech iBMC remote out-of-band power management on DeviceOn software
- AWS (Amazon Web Service) IoT Greengrass certified
- Supports 12th/13th/14th Gen Intel Core i9/i7/i5/i3 and Intel Core Processor Series 2 with the Intel Q670E chipset
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (depends on CPU loading and system thermal solution) |
|---|---|
| Mounting | ATX Chassis, 2U chassis or higher |
| Dimensions (mm) | 304.8 x 244 |
| Certifications | AWS IoT Greengrass qualified |
Computing
| Chipset | Intel Q670E |
|---|---|
| Socket | LGA1700 |
| RAM | DDR4 3200 Non-ECC UDIMM · 4 slots · up to 128GB |
| Storage | 4× SATA 3.0 · M.2 PCIe Gen 4 x4 M-key 2280 |
| GPU | Intel UHD Graphics |
| PCI/PCIe expansion slots | 4 |
Connectivity & I/O
| COM | 1× RS-232 · 4× RS-232 · 1× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 1× 10/100/1000 Mbps Intel I210-AT |
| USB | 2× USB USB 3.2 Gen 2 · 4× USB USB 3.2 Gen 1 · 8× USB USB 2.0 |
| Display outputs | 1× VGA · 1× HDMI · 1× DisplayPort |
| Expansion | 1× PCIe x16 Gen 4 · 3× PCIe x4 Gen 3 · 2× PCI |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (15 items)
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
|---|---|
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1970005349T000 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU Base Power=35~65W) |
| 1970005436T001 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU Base Power=125W) |
| 1970005934N001 | CPU cooler for 4U chassis (for CPU Base Power = 125W) |
| 1701090401 | Single COM port cable(40 cm) |
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700022749-11 | SATA power cable |
| 1700022749-12 | SATA power cable |
| 1700022749-13 | SATA power cable |
| PCA-TPMSPI-00A1 | dTPM 2.0 SPI module to enable TPM and vPro technologies |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R431F-21A1E | 2U riser card with 1 PCIex16 & 1 PCIex1 expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIex16 & 2 PCI expansion |
| AIMB-R4301-03A2E | 2U riser card with 1 PCIex1 expansion |
