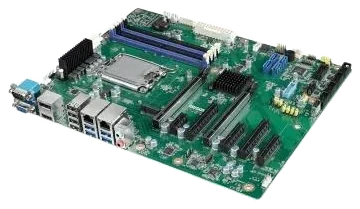

AIMB-788E-00A1
ATX industrial motherboard for 12th/13th/14th Gen Intel Core and Intel Core Series 2 processors with the Intel Q670E chipset, with out-of-band iBMC remote management, 7 PCIe expansion slots, non-ECC DDR5 memory up to 192GB and a wide 0~60°C operating range for industrial applications.
- Advantech iBMC out-of-band remote power management on DeviceOn software
- Industrial design for reliable operation from 0 to 60°C
- Supports 12th/13th/14th Gen Intel Core and Intel Core Series 2 processors with the Q670E chipset
- 4 DDR5 UDIMM slots up to 192GB
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (Depends on CPU load and heat dissipation solution) |
|---|---|
| Mounting | Chassis 2U, Chassis 4U, Wallmount |
| Dimensions (mm) | 304.8 x 244 |
Computing
| Chipset | Q670E |
|---|---|
| Socket | LGA1700 |
| RAM | DDR5 UDIMM · 4 slots · up to 192GB |
| Storage | 4× SATA 3.0 · M.2 M-key 2280 (PCIe x4 Gen 4) |
| GPU | Intel UHD Graphics integrated in chipset |
| PCI/PCIe expansion slots | 7 |
Connectivity & I/O
| COM | 5× RS-232 · 1× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel I219-LM · 1× 10/100/1000 Mbps Intel I210-AT |
| USB | 6× USB USB 3.2 Gen 1 · 7× USB USB 2.0 |
| Display outputs | 1× VGA · 1× HDMI · 1× DisplayPort |
| Expansion | 2× PCIe x16 · 2× PCIe x8 · 2× PCIe x4 · 1× PCIe x1 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (11 items)
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) |
|---|---|
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) |
| 1970005349T000 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU Base Power=35~65W) |
| 1970005436T001 | CPU cooler for 2U, 4U, and wallmount chassis (for CPU Base Power=125W) |
| 1970005934N001 | CPU cooler for 4U chassis (for CPU Base Power = 125W) |
| 1701090401 | Single COM port cable(40 cm) |
| 1701092300 | Dual COM port cable(28.5 cm) |
| 1700022749-11 | SATA power cable |
| 1700022749-12 | SATA power cable |
| 1700022749-13 | SATA power cable |
| PCA-TPMSPI-00A1 | dTPM 2.0 SPI module to enable TPM and vPro technologies |
