- 0~50°COperating temp
- IP65Ingress rating
- FanlessCooling
- 12–9 VDCPower input
- 6COM ports
- 2LAN ports
UTC-S1782A-3
17-inch industrial Panel PC, IP65-rated dust/water-resistant front panel, fanless design, 12V DC input with optional wide 9-36V DC range. Equipped with Intel Core i7-7500U CPU, DDR4 RAM up to 16GB, 300-nit capacitive touchscreen, and a full set of ports: 6 COM, 2 LAN, 6 USB.
- IP65-rated front panel, dust and splash resistant in manufacturing environments
- Fanless design, reduces the risk of dust-related component damage
- 12V DC input, optional wide 9-36V DC range for industrial applications
- 17-inch LED display, capacitive touch, 300-nit brightness
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (extended temperature range is optional) |
|---|---|
| Power input | 12V DC (9-36V DC optional) |
| Power connector | 3 Pin Phoenix Connector |
| Mounting | Panel mount (cutout), VESA mount & Buckles (with VESA bracket and buckles) |

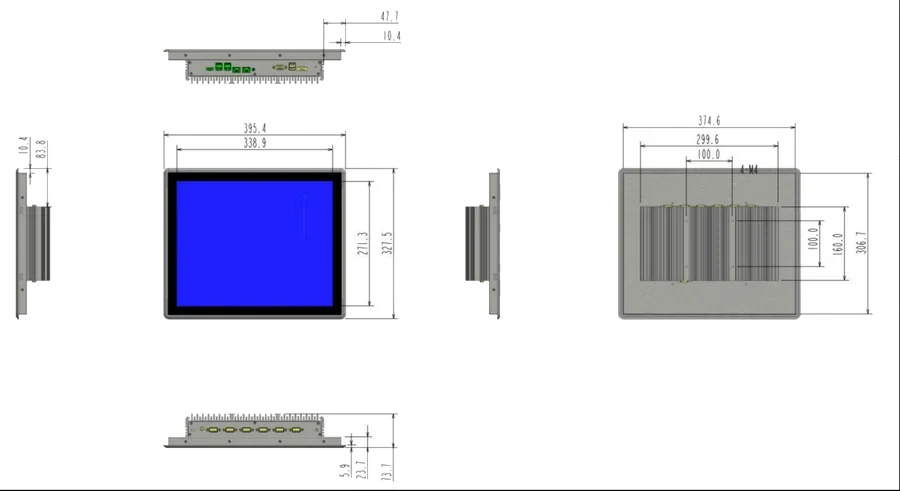

| Dimensions (mm) | 395.4x327.5x73.7 (W*D*H); cutout 374.6x306.7 |
| Weight (kg) | 7.2 |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, RoHS |
Computing
| CPU | Intel Core i7-7500U (Dual Core, 2.70-3.50GHz, 4M Cache) |
|---|---|
| RAM | DDR4 SO-DIMM · 1 slots · up to 16GB |
| Storage | mSATA SSD (Full Size) · SATA 2.5" SSD |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 6× RS232 (DB9), 2 of which are selectable RS485/RS422 |
|---|---|
| LAN | 2× 10/100/1000Mbps |
| USB | 4× USB USB 3.0 (Type-A) · 2× USB USB 2.0 (Type-A) |
| Display outputs | 1× HDMI (max 1920x1200@30Hz) · 1× VGA (max 1920x1200@30Hz) |
| Expansion | 1× Mini-PCIe |
Display
| Screen size | 17" |
|---|---|
| Resolution | 1280x1024 (4:3) |
| Brightness (nit) | 300 |
| Touch | Capacitive Touch |
| Front IP rating | IP65 |
