UTC-S1522C

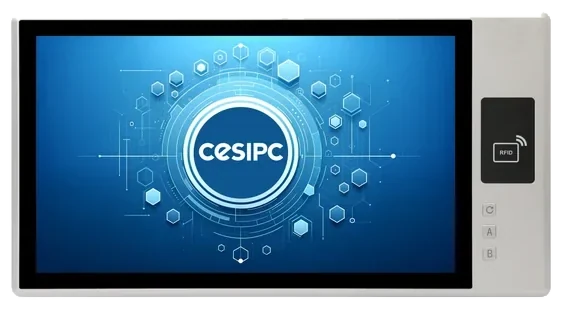

15-inch fanless Panel PC, extruded aluminum frame + metal plate housing, IP65-rated front panel, 0-50°C operating temperature range (optional extended -40~70°C). Supports integrated RFID. Uses 12th Gen Intel Core i3-1215U CPU, 8GB RAM, 256GB SSD standard.
- Fanless extruded aluminum frame, IP65-rated front panel
- 0~50°C operating temperature range, optional extended -40~70°C
- 9-36V DC power via 3-pin terminal block, AT/ATX switch
- Integrated RFID reader (IC Card, optional ID Card)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (-40~70°C optional) |
|---|---|
| Power input | 9-36V (optional) |
| Power connector | 3-pin pluggable terminal block |
| Mounting | Wall Mount, VESA Mount |
| Dimensions (mm) | 436.0 x 282.0 x 69.2 (cutout 417.9 x 266.8) |
| Weight (kg) | 5 |
| IP protection rating | IP65 (front panel) |
| Certifications | ISO9001:2015, CE, FCC |
Computing
| PCI/PCIe expansion slots | 0 |
|---|

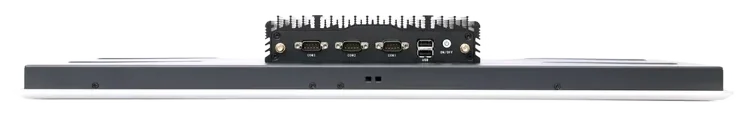

Connectivity & I/O
| COM | 4× RS232 · 2× RS485 |
|---|---|
| LAN | 2× Intel I210 |
| USB | 2× USB USB 2.0 · 4× USB USB 3.0 |
| Display outputs | 1× VGA · 1× HDMI |
| Expansion | 1× RFID Reader |
Display
| Screen size | 15" |
|---|---|
| Resolution | 1024x768 |
| Brightness (nit) | 300 |
| Touch | Projected Capacitive (P-CAP), Resistive 5-wire optional |
| Frame type | 4:3 |
| Front IP rating | IP65 |
