UPC-309R
Fanless industrial computer UPC-309R with dual redundant power supply and warning light, automatically switches to backup power on main power failure, 0~50°C temperature range (optional -40~70°C). Equipped with Intel Core i3-10110U CPU, DDR4 RAM, suited for railway, data centers, and telecom stations requiring high reliability.
- Dual redundant power supply with warning light, automatic failover on main power loss
- Suited for railway, data centers, industrial control, energy management, telecom stations - where continuous operation is required
- Fanless, 0~50°C temperature range (optional -40~70°C)
- Intel Core i3-10110U CPU (2 cores/4 threads), DDR4 RAM up to 32GB
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (mac dinh; tuy chon mo rong -40~70°C) |
|---|---|
| Mounting | Bracket Mount, VESA Mount |

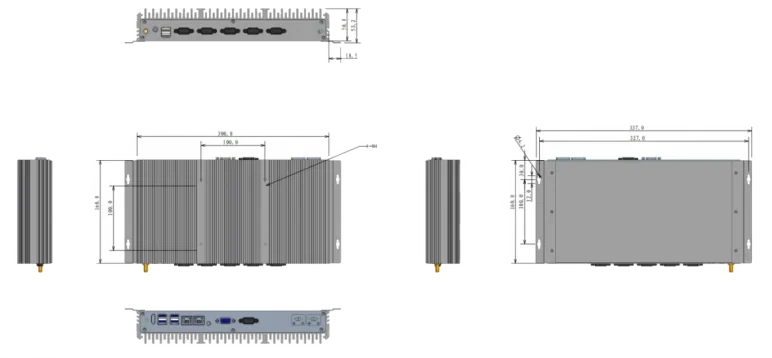

| Dimensions (mm) | 300 x 160 x 50 (cutout 337 x 160 x 53.2) |
| Weight (kg) | 3.7 |
| Certifications | CE, FCC, ISO 9001:2015 (nha may) |
Computing
| CPU | Intel Core i3-10110U (2 nhan/4 luong, 2.1-4.1GHz, cache 4MB, do hoa Intel UHD Graphics) |
|---|---|
| RAM | DDR4 · up to 32GB |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O

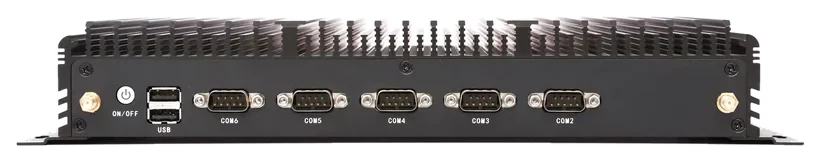

| COM | 4× RS232 · 2× RS485 |
|---|---|
| LAN | 2× Gigabit Ethernet Intel I210 |
| USB | 2× USB USB2.0 · 4× USB USB3.0 |
| Display outputs | 1× VGA · 1× HDMI |
