UPC-309C
Fanless industrial computer in CESIPC's UPC-309C series, 0~50°C operating temperature range (optional extended -40~70°C), wide 9-36V DC input, integrated SIM and TF card slots, optional Wi-Fi and 4G LTE support, suited for smart transportation, mobile monitoring, remote monitoring and IoT gateways. Equipped with an Intel Core i3-10110U (10th Gen) CPU.
- Integrated SIM + TF card slots, supports 4G LTE connectivity for mobile/remote applications
- Fanless, board-to-board design for high stability
- LEGO MODE with customizable function cards, i-Door technology
- 0~50°C operating temperature range, optional extended -40~70°C
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (extended temperature -40~70°C optional) |
|---|---|
| Mounting | Bracket Mount, VESA Mount |
| Dimensions (mm) | 300 x 160 x 50 mm (cutout 337 x 160 x 53.2 mm) |
| Weight (kg) | 3.7 |
| Certifications | CE, FCC, EN 55032, EN 55035, EN IEC 61000-3-2, ISO 9001:2015 (factory certification) |
Computing
| CPU | Core i3-10110U |
|---|---|
| RAM | DDR4 · up to 32GB |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O

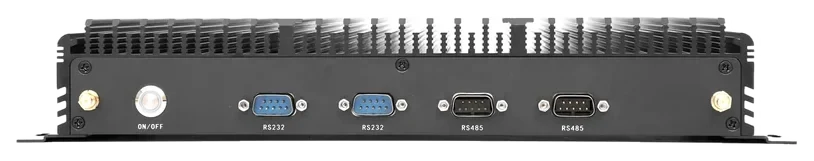

| COM | 2× RS232 · 2× RS485 |
|---|---|
| LAN | 2× Gigabit Intel I210 |
| USB | 0× USB USB 2.0 · 4× USB USB 3.0 |
| Display outputs | 1× HDMI |
| Expansion | LEGO MODE Function Card · Slot card |
