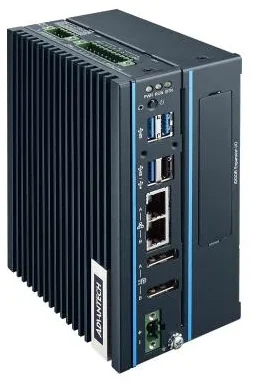

UNO-410-E1HX
Máy tính điều khiển công nghiệp chống cháy nổ gắn DIN-rail, đạt chứng nhận ATEX/IECEx Zone 2 và UL C1D2, hỗ trợ dải nhiệt độ rộng -40 đến 70°C, nguồn 10 ~ 36 VDC, chống rung 4 Grms, trang bị vi xử lý Intel Atom E3940, 8 GB RAM và tích hợp sẵn ổ cứng 64 GB 2.5" SSD.
- Đạt chuẩn chống cháy nổ Class 1, Division 2, ATEX Zone 2 và IECEx Zone 2
- Tích hợp sẵn ổ cứng 64 GB 2.5" SSD mặc định
- Cách ly 2500 VDC cho 8 DI, 8 DO và 2 cổng COM
- Dải nhiệt độ hoạt động công nghiệp mở rộng từ -40°C đến 70°C
giá tham khảo (ước theo phân khúc) · updated 2026-08-09
41.200.000đ – 75.600.000đ
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model UNO-410-E1HX within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (Không khí tĩnh: -40 ~ 55°C với SSD/WiFi dải nhiệt rộng, -40 ~ 40°C với LTE. Có luồng khí 0.7m/s: -40 ~ 70°C với SSD 2.5"/WiFi/LTE dải nhiệt rộng, -40 ~ 60°C với M.2 SSD dải nhiệt rộng.) |
|---|---|
| Power input | 10 ~ 36 VDC |
| Power connector | 1 x 2-pin terminal block |
| Mounting | DIN rail |
| Dimensions (mm) | 70 x 105 x 150 |
| Weight (kg) | 1 |
| Vibration resistance | 4 Grms, random, 5 ~ 500 Hz, 1hr/axis (SSD) — IEC 60068-2-64 |
| IP protection rating | IP40 |
| Certifications | CE, FCC, CCC, UL 61010-2-201, Class I, Division 2, Groups A, B, C, D, ATEX Zone 2, IECEx Zone 2 |
Computing
| CPU | Intel Atom E3940 |
|---|---|
| RAM | DDR3L · up to 8GB |
| Storage | 1× 2.5" SATA SSD · 1× M.2 2242 SATA SSD |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 (isolated) |
|---|---|
| LAN | 2× 10/100/1000 Mbps Intel i210-IT |
| USB | 3× USB USB 3.2 Gen 1 · 1× USB USB 2.0 |
| DIO | 8 in / 8 out (optically isolated) |
| Display outputs | 2× DP |
| Expansion | 1× M.2 · 1× mPCIe · 1× Nano SIM · 1× iDoor |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (19 items)
| SQF-SM4M2-64G-SBE | 64 GB M.2 SSD, SQFlash 640, SATA III (-40 ~ 85 °C) |
|---|---|
| SQF-SM4M2-128G-SBE | 128 GB M.2 SSD, SQFlash 640, SATA III (-40 ~ 85 °C) |
| SQF-SM4M2-256G-SBE | 256 GB M.2 SSD, SQFlash 640, SATA III (-40 ~ 85 °C) |
| SQF-S25M4-64G-SBE | 64 GB, 2.5" MLC SSD, SQFlash 640 (-40 ~ 85 °C) |
| SQF-S25M4-128G-SBE | 128 GB, 2.5" MLC SSD, SQFlash 640 (-40 ~ 85 °C) |
| SQF-S25M4-256G-SBE | 256 GB, 2.5" MLC SSD, SQFlash 640 (-40 ~ 85 °C) |
| SQF-S25M4-512G-SBE | 512 GB, 2.5" MLC SSD, SQFlash 640 (-40 ~ 85 °C) |
| EWM-W190H02E | mPCIe module (802.11 a/b/g/n/ac with BT4.2) (-40 ~ 85 °C) |
| 1750008798-01 | Cable antenna SMA/F-R-BH MHF1/113 black L250 |
| 1750002842 | Wireless antenna R-AN2450-5701RS R/P SMA.M 10.9 cm |
| PCM-24S2WF-BE | iDoor module (802.11 a/b/g/n/ac w/BT4.1) (-20 ~ 65 °C) |
| 968AD00426 | Sierra EM7565 LTE Cat-12 M.2 module (global band) |
| 968AD00590 | Quectel EM06-E LTE Cat-6 M.2 module (EMEA/Brazil/APAC) |
| 1750008862-01 | Cable Ant.SMA/F-BH MHF4/113 BLK L250 LTE |
| 1750008303-01 | Antenna AN0727-64SP6BSM |
| C-PCM-24S24G-4AV-1 | MultiTECH iDOOR, LTE Cat 4 (AT&T/Verizon) |
| 9893UH09000 | MultiTECH Riser Card_M.2 B-key |
| 20703WX9ES0045 | Img WIN10LTSC x64 v6.06 B010 UNO-137/410 Entry |
| 20703LEB1S0105 | Image AdvLinuxTu V2.1.2 for UNO/TPC/WISE |
Other configurations in the UNO-400 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
Atom E3940 · 2× COM · 2× LAN · -40 ~ 70 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · has DIO
Compare side by side → Celeron J1900 · 4× COM · 2× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · enough COM ports · enough LAN ports · similar price range
Compare side by side → Atom x7433RE · 2× COM · 2× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · enough COM ports · enough LAN ports · has DIO
Compare side by side → Atom E3845 · 2× COM · 3× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · enough COM ports · enough LAN ports · has DIO
Compare side by side → 6th/7th Gen Core i / Pentium / Celeron · 4× COM · 2× LAN · -10 ~ 50 °C
Why it’s equivalent: same CPU performance class · enough COM ports · enough LAN ports · similar price range
Compare side by side → 10th Gen Intel Core i / Pentium / Celeron · 2× COM · 2× LAN · -10 ~ 60 °C
Why it’s equivalent: same CPU performance class · enough COM ports · enough LAN ports · similar price range
Compare side by side →
