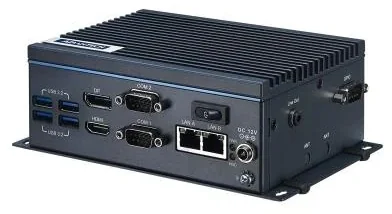

UNO-238-83N1AE
Compact fanless industrial IoT Edge computer, operates across a wide -20 to 60°C temperature range, DC 12V power via a screw-lock jack, equipped with an Intel Core i3-8145UE processor.
- Compact fanless design with an efficient aluminum cooling housing
- Durable operation across an extended -20°C to 60°C temperature range
- DC 12V power via a screw-lock jack to prevent accidental disconnection
- 50G shock resistance and 3Grms vibration resistance to IEC 60068
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (with 0.7m/s air flow and extended temperature peripherals) |
|---|---|
| Power input | 12VDC |
| Power connector | 1 x Lockable DC jack |
| Mounting | Stand, DIN rail |
| Dimensions (mm) | 150 x 107 x 60 |
| Weight (kg) | 1.8 |
| Vibration resistance | 3Grms, random, 5 ~ 500Hz, 1hr/axis — IEC 60068-2-64 |
| Certifications | CE, FCC, UL, CCC, BSMI |
Computing
| CPU | Intel Core i3-8145UE |
|---|---|
| RAM | DDR4 · 2 slots · up to 32GB |
| Storage | eMMC 5.1 Onboard · M.2 B Key 2280 (SATA or NVMe PCIe x2) |
| GPU | Intel UHD Graphics 620 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 1× 10/100/1000 Mbps Intel i219 · 1× 10/100/1000 Mbps Intel i210-IT |
| USB | 4× USB USB 3.2 |
| Display outputs | 1× HDMI 1.4 · 1× DP 1.2 |
| Expansion | 1× M.2 B Key 3042 · 1× M.2 E Key 2230 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| 1702002600 | Power cable, 3-pin, 1.8 M, US plug |
|---|---|
| 1700018705 | Power cable, 3-pin, 1.8 M, EU plug |
| 1702031801 | Power cable, 3-pin, 1.8 M, UK plug |
| 1700000237 | Power cable, 3-pin, 1.8M, PSE, Japan |
| UNO-200-DMKAE | DIN-rail kit |
| 1700031518-01 | DB9 CANbus cable (connect to CN35) |
| UNO-2000G-VMKAE | UNO & FPM integration VESA Mount kit |
