UNO-1372G-J021AE

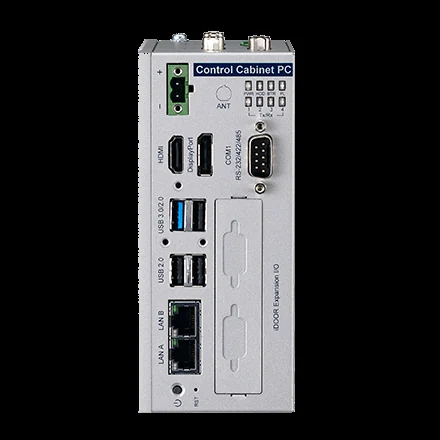

Compact DIN-rail-mounted industrial control computer, fanless design, operating temperature range from -20 to 60°C, wide 10-36VDC power range, high shock and vibration resistance, equipped with an Intel Celeron J1900 processor, 4GB DDR3L RAM, isolated COM/DIO ports, and flexible iDoor expansion capability.
- Compact DIN-rail design, a one-piece fanless aluminum housing purpose-built for industrial control cabinets
- Wide operating temperature range from -20 to 60°C with 0.7m/s airflow when using an industrial SSD
- 50G shock resistance and 1Grms vibration resistance meeting the IEC 60068 standard
- Provides isolation protection for 4 COM ports (1500 VDC) and 4 DI / 4 DO (2500 VDC)
reference price · updated 2026-08-09
11,900,000 ₫ – 17,800,000 ₫
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model UNO-1372G-J021AE within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (5 ~ 85% RH with 0.7m/s airflow (Industry SSD)) |
|---|---|
| Power input | 10~36VDC |
| Power connector | 1 x 2 Pins, Terminal Block |
| Mounting | DIN-rail |
| Dimensions (mm) | 65 x 105 x 150 |
| Weight (kg) | 1 |
| Vibration resistance | 1Grms, random, 5 ~ 500Hz, 1 hr/axis — IEC 60068-2-64 |
| IP protection rating | IP40 |
| Certifications | CE, FCC, UL, CCC, BSMI |
Computing
| CPU | Intel Celeron J1900 |
|---|---|
| Chipset | Integrated Intel SoC Chipset |
| RAM | DDR3L · up to 8GB |
| Storage | mSATA · SATA 2.5" HDD |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 4× RS-232/422/485 (isolated) |
|---|---|
| LAN | 2× 10/100/1000 Mbps Intel i210-IT |
| USB | 3× USB USB 2.0 · 1× USB USB 3.0 |
| DIO | 4 in / 4 out (optically isolated) |
| Display outputs | 1× DP · 1× HDMI |
| Expansion | 2× mPCIe · 1× iDoor |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (22 items)
| PCM-23U1DG-BE | Internal locked USB Slot for USB Dongle |
|---|---|
| PCM-24R2GL-AE | 2-Port Gigabit Ethernet, mPCIe, RJ45 |
| PCM-24D2R2-BE | 2-Port Isolated RS-232 mPCIe, DB9 |
| PCM-24D4R2-BE | 4-Port Non-Isolated RS-232 mPCIe, DB37 |
| PCM-24S2WF-BE | WiFi 802.11 ac/a/b/g/n 2T2R w/Bluetooth 4.1 |
| PCM-24S33G-AE | Wide-Temp 3.75G HSPA and GPS, 2-in-1, Full-size mPCIe w/ Redundant SIM Card holder, 2-port SMA |
| PCM-26R2PN-MAE | 2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45, IO-Controller |
| PCM-26R2PN-SAE | 2-Port Hilscher netX100 FieldBus mPCIe, PROFINET, RJ45, IO-Device |
| PCM-26D1DB-MAE | 1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9, Master |
| PCM-26D1DB-SAE | 1-Port Hilscher netX100 FieldBus mPCIe, PROFIBUS, DB9, Slave |
| PWR-247-DE | 100-240V 60W 24V 2.5A Power Supply |
| 1702002600 | Power Cable US Plug 1.8 M (Industrial Grade) |
| 1702002605 | Power Cable EU Plug 1.8 M (Industrial Grade) |
| 1702031801 | Power Cable UK Plug 1.8 M (Industrial Grade) |
| 1700000596 | Power Cable China/Australia Plug 1.8 M (Industrial Grade) |
| UNO-IPS2460-AE | 60Watts Compact Size DIN-Rail Power Supply |
| 20703WE7PS0001 | Img WS7P x64 MUI v4.18 B010 UNO-1372G-J0xxAE |
| 20703LUB1S0002 | Image AdvLinuxTu V1.0.6 x86 for UNO-1372G-J0xxAE |
| 20703LUB1S0003 | Image AdvLinuxTu V1.0.6 x64 for UNO-1372G-J0xxAE |
| 20703WE7PS0012 | Img WS7P x86 MUI V4.18 B022 for UNO-1372G-J0xxAE |
| 20703WX6HS0014 | Img WIN10 LTSB v6.03 B003 UNO-1372G-J0xxAE |
| 20703WX9ES0029 | Img W10 LTSC V6.05 B026 UNO-1372G-J0xxAE Entry |
Other configurations in the UNO-1300 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
Celeron N3350 · 9× COM · 3× LAN · -20 ~ 70 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · also fanless · has DIO
Compare side by side → Celeron N2930 (Bay Trail SoC) · 16× COM · 2× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · also fanless · has DIO
Compare side by side → Atom E3845 · 2× COM · 2× LAN · -40 ~ 85 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough LAN ports · also fanless · has DIO
Compare side by side → Celeron J6412 Quad Core CPU Elkhart Lake (2.0GHz/2.6GHz) · 6× COM · 4× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · also fanless
Compare side by side → Celeron J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz) · 6× COM · 2× LAN · -20 ~ 60 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · also fanless
Compare side by side → Core / Pentium / Celeron (BTL-S / 14th / 13th / 12th Gen) · 4× COM · 2× LAN · -40 ~ 70 °C
Why it’s equivalent: same CPU performance class · covers the temperature range · enough COM ports · enough LAN ports · also fanless
Compare side by side →
