P1301-N97-R11

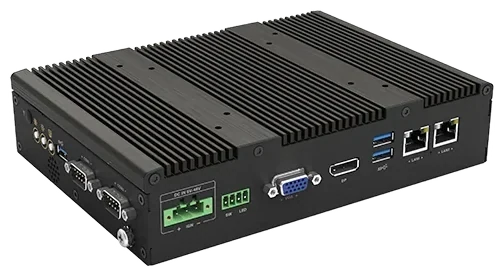

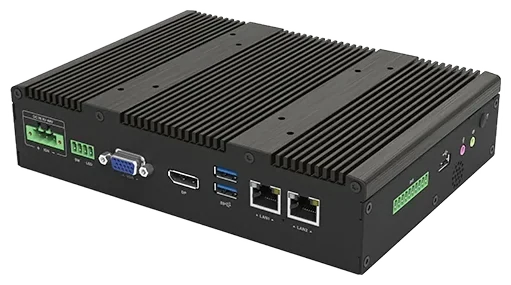

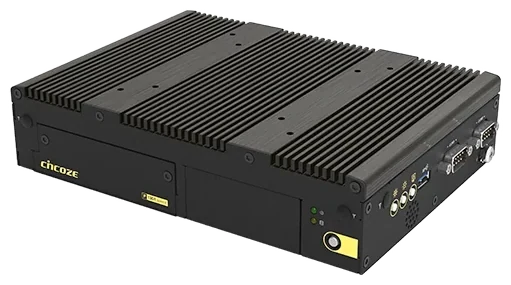

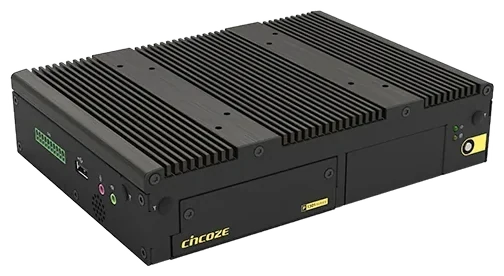

Fanless embedded industrial computer with a slim (46.5 mm) design, supports a wide -20°C to 70°C operating temperature range, 9-48VDC power, industrial-grade impact and vibration resistance. Equipped with an Intel® Processor N97 combined with proprietary CDS technology and a CFM module.
- Slim 46.5 mm fanless body, optimized for constrained installation space
- Stable operation across a wide -20°C to 70°C temperature range, withstands 50G impact and 5G vibration
- Wide 9 - 48 VDC input voltage range with an overvoltage/reverse-polarity protection mechanism
- Supports proprietary Convertible Display System (CDS) technology for display connection
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling), using wide temperature range components, with air flow) |
|---|---|
| Power input | 9 - 48VDC |
| Power connector | 3-pin Terminal Block |
| Mounting | Wall, VESA, CDS, DIN Rail |
| Dimensions (mm) | 204.5 x 149 x 46.5 |
| Weight (kg) | 1.57 |
| Vibration resistance | 1 Grms (10-500 Hz), 5 Grms (5-500 Hz) — IEC60068-2-6, IEC60068-2-64 |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, EN 61000-6-4, EN 61000-6-2, UL, cUL, CB, IEC 62368-1, EN 62368-1 |
Computing
| CPU | Intel® Processor N97 |
|---|---|
| Socket | Onboard |
| RAM | DDR5 · 1 slots · up to 16GB |
| Storage | 2.5" Front Accessible SATA HDD/SSD Bay · M.2 Key B Type 3042/3052 (SATA) |
| GPU | Intel® UHD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 2× 2.5GbE Intel® I226 |
| USB | 3× USB USB 3.2 Gen2x1 · 1× USB USB 2.0 |
| DIO | 4 in / 4 out (optically isolated) |

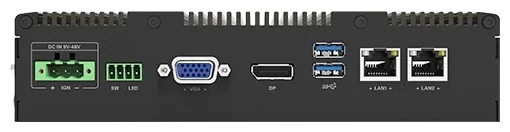

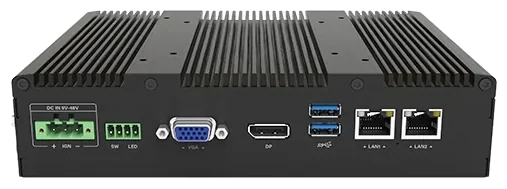

| Display outputs | 1× DisplayPort · 1× VGA · 1× CDS Connector |
| Expansion | 1× M.2 Key E · 1× M.2 Key B · 1× SIM Socket · 2× CFM Interface |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
