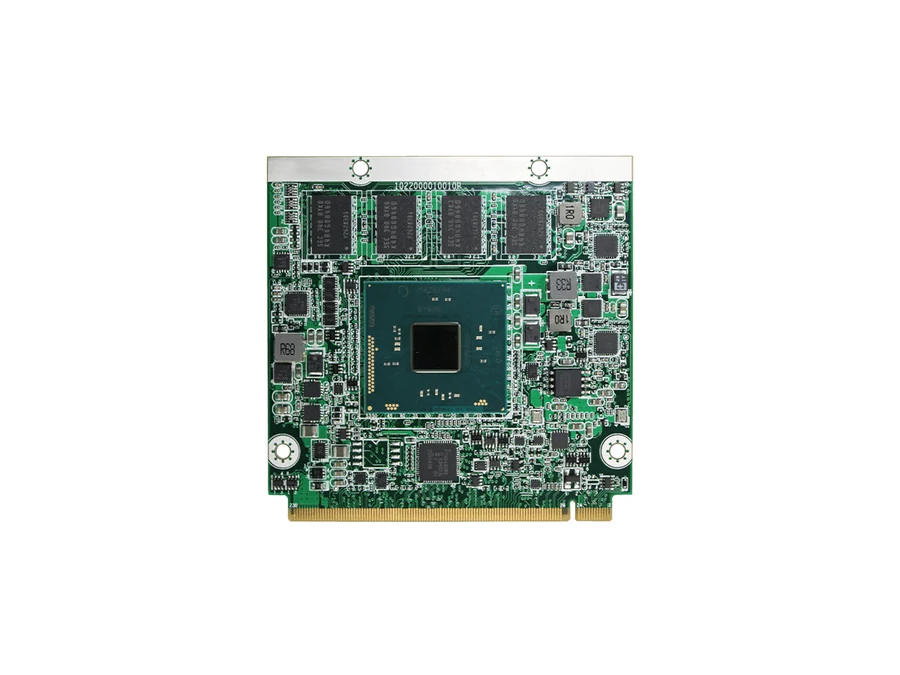

EmQ-i2200-N3160-4G
Qseven R2.0 CPU module, fanless design, -20~70°C operating temperature range, uses an Intel Celeron N3160 Quad Core with 4GB RAM soldered onboard, suited for compact industrial embedded devices.
- Fanless design, -20~70°C temperature range
- Integrated Gigabit Ethernet LAN
- Dual 24-bit LVDS and selectable DisplayPort/HDMI port
- Compact 70x70mm size
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C |
|---|
Computing
| CPU | Intel Celeron Processor N3160 (Quad Core) |
|---|---|
| Socket | Soldered onboard (Qseven R2.0) |
| RAM | DDR3L · up to 4GB |
| Storage | 2× SATA (600MB/s) |
| GPU | Intel HD Graphics 400 (integrated) |
| PCI/PCIe expansion slots | 3 |
Connectivity & I/O
| COM | 1× UART |
|---|---|
| LAN | 1× Gigabit Intel i210AT PCIe GbE controller |
| USB | 4× USB USB 2.0 · 2× USB USB 3.0 SuperSpeed |
| Display outputs | 1× DisplayPort/HDMI (selectable) · 1× LVDS dual channel 24-bit |
| Expansion | 3× PCIe x1 · SDIO/I2C |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| HS-2200-F1 | Heat spreader |
|---|---|
| HS-0000-W3 | Universal evaluation heatsink cho Qseven CPU module |
| PBQ-900L | Qseven R2.0 EPIC form factor carrier board |
| CBK-06-900L-00 | Cable kit: 1 x USB cable, 2 x COM cables, 1 x SATA cable, 1 x SATA power cable, 1 x AUDIO cable |
