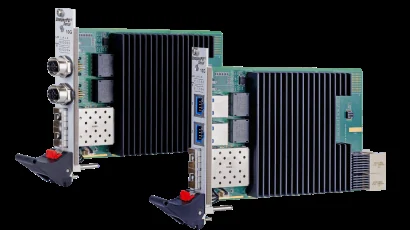

MIC-3861-A1S1
3U CompactPCI Serial 10 Gigabit Ethernet network board, industrial design meeting railway standards EN50155, EN50121-3-2 and medical standard EN-60601. Withstands 2Grms vibration, 10G shock, operates from 0 to 70°C. Equipped with 2 x SFP+ ports and 2 x RJ45 10GbE ports with an Intel X710-TM4 controller.
- Meets stringent industrial standards EN50155, EN50121-3-2, EN50121-4 and EN-60601
- 2Grms vibration resistance and 10G shock resistance
- 0 to 70°C operating temperature range (requires forced airflow)
- Supports SR-IOV virtualization with up to 128 virtual functions
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 70 °C (Forced airflow is required) |
|---|---|
| Power input | 12V |
| Power connector | Backplane P1/P2 |
| Mounting | CompactPCI Serial 3U/4HP slot |
| Dimensions (mm) | 100 x 160 |
| Weight (kg) | 0.2 |
| Vibration resistance | 2Grms — 5~500 Hz, random (IEC60068-2) |
| Certifications | CE, FCC, UKCA, RoHS, EN50155, EN50121-3-2, EN50121-4, EN-60601, PICMG CompactPCI Serial |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| LAN | 2× 10GbE Intel X710-TM4 · 2× 10GbE Intel X710-TM4 |
|---|---|
| Expansion | 1× PCI Express 3.0 x8 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (11 items)
| MIC-330 Series | 3U CPCI-Serial Intel 9th Gen. processor blade |
|---|---|
| MIC-330V2 Series | 3U CPCI-Serial Intel 11th Gen. processor blade |
| MIC-300A series | 3U CPCI-Serial 84HP/44HP width, 3U/4U height chassis, with 8 slots backplane & mini fan |
| MIC-3890 | 3U CPCI-Serial DC-DC power module, 110V in/ 12V&5V output, 250W |
| XMIC330-HAC300S | 3U CPCI-Serial AC-DC power module, 12V&5V output, 300W |
| SFP-XMM-LCI-400 | SFP+-10G-SR-IT, 850nm, MM, 400m, -40~85°C, multi-mode |
| SFP-XSM-LCI-10K | SFP+-10G-LR-IT, 1310nm, SM, 10km, -40~85°C, single-mode |
| SFP-XSM-LCI-20K | SFP+-10G-ELR-IT, 1310nm, SM, 20km, -40~85°C, single-mode |
| SFP-XSM5-LCI-40K | SFP+-10G-ER40-IT, 1550nm, SM, 40km, -40~85°C, single-mode |
| SFP-XSM-LCI-80K | SFP+-10G-ZR, 1550nm, SM, 80km, -40~85°C, single-mode |
| 968AD00409 | SFP+ 10G,1310nm DFB SM, 10km, 0~70°C, XCVR W/DDM,single-mode |
