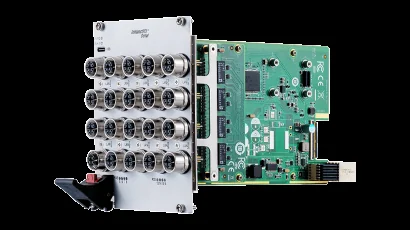

MIC-3850-B1S1
3U CompactPCI Serial 4HP Managed L2 Ethernet switch card, operating across a wide -40~70°C temperature range, meeting EN50121-4 and EN50155 standards for demanding railway environments.
- Wide -40 ~ 70°C operating temperature range, 2G rms vibration resistance
- Compliant with railway industry standards EN50121-4 and EN50155
- 3U CompactPCI Serial size standard (CPCI-S.0 R2.0), 4HP width
- Supports X-Ring Pro, X-Chain, and STP/RSTP/MSTP network ring redundancy
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (based on standard 3U chassis with forced airflow) |
|---|---|
| Power input | +12V |
| Power connector | CompactPCI Serial backplane connector P1 |
| Mounting | CompactPCI Serial Slot |
| Dimensions (mm) | 100 x 160 mm (3U/4HP) |
| Weight (kg) | 0.38 |
| Vibration resistance | 2G rms |
| Certifications | EN50121-4, EN50155, PICMG CompactPCI Serial (CPCI-S.0 R2.0) |
Computing
| RAM | DRAM · up to 1GB |
|---|---|
| Storage | Flash |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 1× RS232 (Console qua USB Type-C) |
|---|---|
| LAN | 3× 1 Gbps · 1× 10 Gbps · 3× 1 Gbps (Backplane P6) · 3× 10 Gbps (Backplane P6) |
| USB | 1× USB Type-C (Console UART) |
| Expansion | 1× Wi-Fi Dual-Band Access Point Embedded Module |
