GM-1000-R10

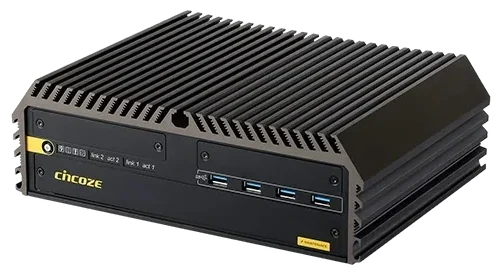

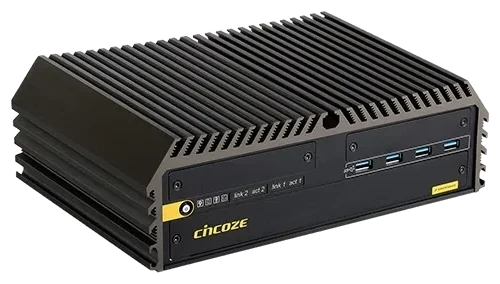

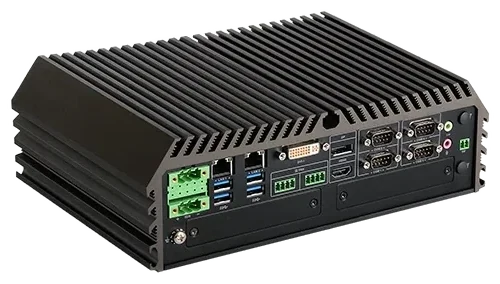

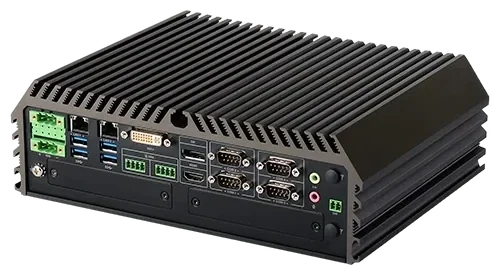

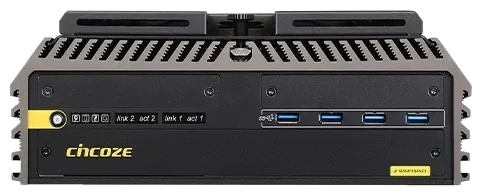

Cincoze GM-1000-R10 compact industrial GPU embedded computer supporting 9th/8th Gen Intel® Xeon®/Core™ processors, industrial-grade shock/vibration resistance (5G/50G), a wide -40°C to 70°C operating temperature range, wide 9~48VDC power, and an integrated 1x MXM 3.1 GPU expansion slot.
- Wide -40°C to 70°C operating temperature range
- High shock and vibration resistance (50G / 5G)
- Wide 9~48VDC power input with integrated Power Ignition Sensing
- Diverse mounting options: Wall Mount, VESA Mount, DIN Rail, Side Mount
Which situations does this series fit?
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model GM-1000-R10 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 70 °C (CPU 35W TDP) |
|---|---|
| Power input | 9~48VDC |
| Power connector | 2x 3-pin Terminal Block |
| Mounting | Wall Mount, VESA Mount, DIN Rail, Side Mount |
| Dimensions (mm) | 260 x 200 x 85 |
| Weight (kg) | 4.6 |
| Vibration resistance | 5 Grms, 5-500 Hz, 3 Axes — IEC60068-2-64 |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, EN 50155 (EN 50121-3-2 Only), E-mark, CISPR 32 Class A, EN/BS EN 50121-3-2 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN61000-3-3, FCC 47 CFR Part 15B Class A, LVD IEC/EN 62368-1 |
Computing
| Chipset | Intel® C246 |
|---|---|
| RAM | DDR4 · 2 slots · up to 64GB |
| Storage | 2× 2.5" SATA III HDD/SSD Trays · 3× mSATA Sockets · NVMe SSD (PCIe x4 M.2 Key M 2280 Socket) |
| GPU | Integrated Intel® UHD Graphics / MXM 3.1 Type A/B GPU Module |
| PCI/PCIe expansion slots | 0 |

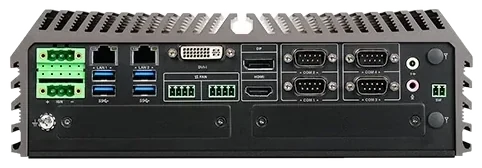

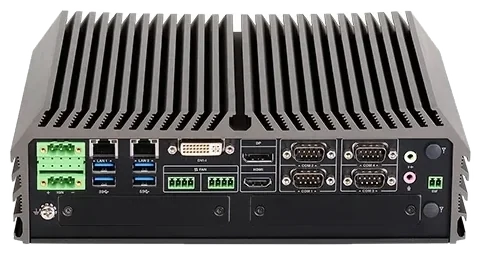

Connectivity & I/O
| COM | 4× RS-232/422/485 |
|---|---|
| LAN | 1× 1GbE Intel® I219-LM · 1× 1GbE Intel® I210 |
| USB | 4× USB USB 3.2 Gen2 · 4× USB USB 3.2 Gen1 |
| Display outputs | 1× DVI-I · 1× DisplayPort · 1× HDMI |
| Expansion | 1× MXM Carrier Board Interface · 1× M.2 Key E Socket · 3× Full-size Mini-PCIe Sockets · 2× SIM Sockets · 1× High Speed CMI Interface · 1× Low Speed CMI Interface · 1× CFM IGN Interface |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (42 items)
| MXM-AD5000-R10 | NVIDIA Embedded RTX AD5000 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad |
|---|---|
| MXM-AD3500-R10 | NVIDIA Embedded RTX AD3500 MXM Type B, 12G, 80W Kit with Heatsink and Thermal Pad |
| MXM-AD2000-R10 | NVIDIA Embedded RTX AD2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A4500-R10 | NVIDIA Embedded RTX A4500 MXM Type B, 16G, 80W Kit with Heatsink and Thermal Pad |
| MXM-A2000-R10 | NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A1000-R10 | NVIDIA Embedded RTX A1000 MXM Type A, 4G, 60W Kit with Heatsink and Thermal Pad |
| MXM-A500-R10 | NVIDIA Embedded RTX A500 MXM Type A, 4G, 40W Kit with Heatsink and Thermal Pad |
| MXM-T1000-R10 | NVIDIA Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad |
| MXM-HSKA-01 | MXM Type A Heatsink Kit for MXM-A500 |
| MXM-HSKA-02 | MXM Type A Heatsink Kit for MXM-A1000, MXM-A2000, and MXM-AD2000 |
| MXM-HSKA-03 | MXM Type A Heatsink Kit for MXM-T1000 |
| MXM-HSKB-01 | MXM Type B Heatsink Kit for MXM-A4500 |
| MXM-HSKB-03 | MXM Type B Heatsink Kit for MXM-AD3500 & MXM-AD5000 |
| CB-DP01-R10 | Carrier Board Module with 1x MXM 3.1 Interface and 4x DisplayPort Output / 1x Universal Bracket with 4x DP Cutout |
| CB-DP02-R10 | Carrier board with one MXM 3.1 interface and no DisplayPort output. (Compatible with GM-1000 standard universal bracket) |
| CB-DP04-R10/UB1329 | Carrier Board with 1x MXM 3.1 Interface and 4x DisplayPort Output / 1x Universal Bracket with 4xDP Cutout |
| CB-DP05-R10/UB1336-R10 | Carrier Board with 1x MXM 3.1 Interface and 3x DisplayPort Output / 1x Universal Bracket with 3xDP Cutout |
| CMI-LAN01-R12/UB1312 | CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series |
| CMI-2P5GLAN01-R10/UB1312 | CMI Module with 4x Intel 2.5GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series |
| CMI-10GLAN01-R10/UB1328 | CMI Module with 2x Intel® X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GM Series |
| CMI-M12LAN01-R12/UB1310 | CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series |
| CMI-XM12LAN01-R10/UB1330-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| CMI-10GXM12LAN01-R10/UB1337-R10 | CMI Module with 2x Intel 10GbE LAN, M12 X-Coded Connector / Universal Bracket with 2x M12 X-coded Cutout |
| CMI-CAN01-R10/UB1338-R10 | CMI Module with 2x CAN FD Ports / Universal Bracket with 2x DB9 and 1× Switch Cutout for CMI-CAN Expansion |
| CMI-DIO01/UB1318 | CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX & GM Series |
| CMI-COM01/UB1303 | CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series |
| CMI-LAN01-R12/UB1312/CFM-PoE01 | CMI Module with 4x Intel® I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W |
| CMI-M12LAN01-R12/UB1310/CFM-PoE01 | CMI Module with M12 Connector, 4x Intel® GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GM Series / CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-PoE01 | PoE Control Function Module, Power Boost 50-57V |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| UB0932-R10 | Universal Bracket with 3x Antenna Cutout |
| UB1332-R10 | Universal Bracket with 3x Antenna Cutout |
| MEC-COM-M212-TDB9/UB1303 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX & GM Series |
| MEC-COM-M334-TDB9/2xUB1303 | Mini-PCIe Module with 4x RS232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout forDX & GM Series |
| MEC-LAN-M102-30/UB1311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX & GM Series |
| MEC-USB-M102-30/UB1314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable / 1x Universal Bracket with 2x USB Cutout |

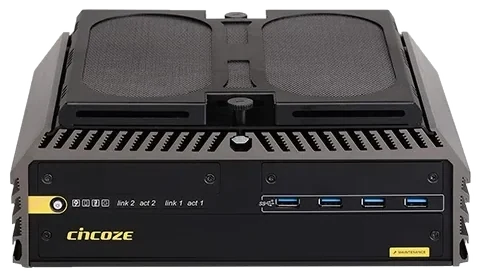

| FAN-EX102 | External Fan Kit with 2x 4pin Terminal Block Plug for GM Series, Support Smart Fan Function |
| SIDE-GM | GM Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
