- -20~50°COperating temp
- FanlessCooling
- 19–36 VDCPower input
- 2COM ports
- 10LAN ports
- 2PCIe slots
- PoEPowered LAN

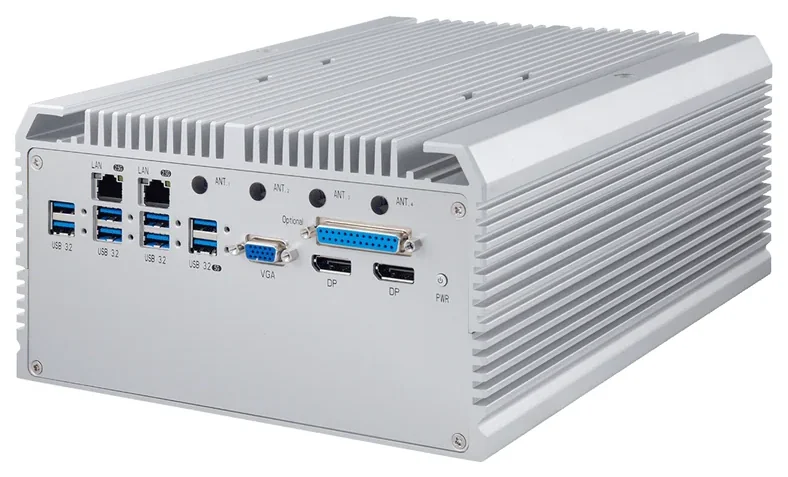

FPC-9202-P6
Industrial computer dedicated for machine vision, fanless aluminum chassis, wide-range 19~36V DC input, meeting MIL-STD-810G vibration/shock standards, integrating 6 Gigabit PoE ports for directly powering multiple industrial cameras.
- Fanless design, aluminum alloy chassis, wide-range 19~36V DC input with ignition power control
- Meets MIL-STD-810G military vibration/shock standards (Method 514.6 and 516.6), suitable for high-vibration manufacturing environments
- 6 Gigabit PoE ports per 802.3af standard, directly powering multiple industrial cameras without a separate power supply
- Supports 4 independent displays (HDMI + VGA + 2x DP) for multi-camera monitoring
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model FPC-9202-P6 within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 50 °C (ambient w/ air flow (CPU TDP 35W, fanless)) |
|---|---|
| Power input | 19~36V |

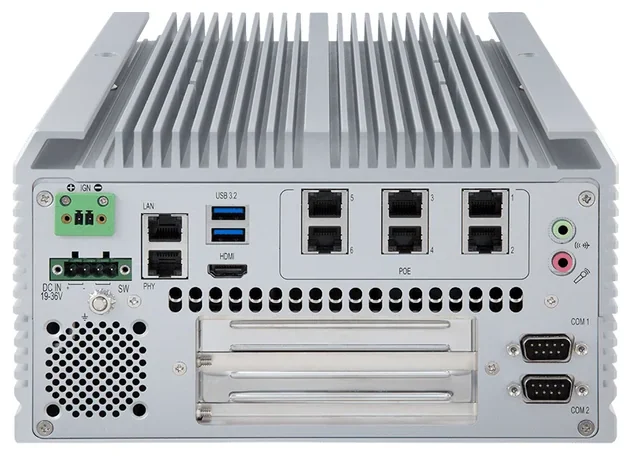

| Power connector | 4-pin DC input terminal block, combined with remote power on/off switch |
| Mounting | Wall-mount |
| Dimensions (mm) | 225 x 292 x 120 mm |
| Weight (kg) | 7 |
| Vibration resistance | MIL-STD-810G, Method 514.6 |
| Certifications | CE, FCC Class A |
Computing
| RAM | DDR5 SO-DIMM 5600MHz · 2 slots · up to 96GB |
|---|---|
| Storage | 2× 2.5” drive bay · M.2 M key (PCIe Gen4 x4 + SATA) |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9, default RS-232) |
|---|---|
| LAN | 4× GbE/2.5GbE Intel® WGI226LM / WGI210AT / WGI219LM (iAMT) · 6× GbE PoE Intel® WGI210AT PCIe controller PoE |
| USB | 8× USB USB 3.2 Gen2 (10Gbps) · 2× USB USB 3.2 Gen1 (5Gbps) |
| DIO | 8 in / 8 out |

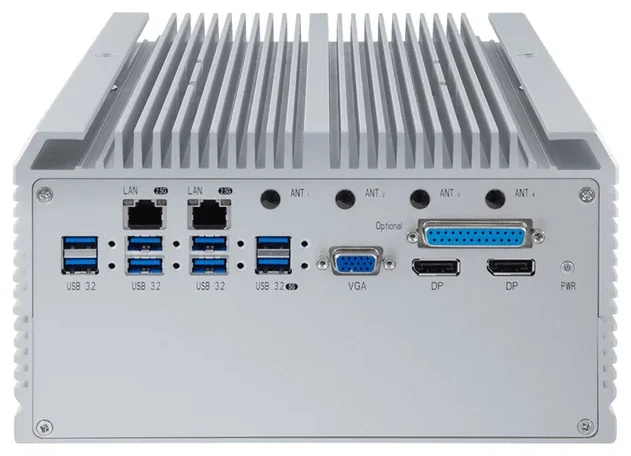

| Display outputs | 1× HDMI · 1× VGA (DB-15) · 2× DP |
| Expansion | 1× mini-card full size · 1× M.2 E key · 1× M.2 B key · 1× PCIe x8 (via x4 lanes) · 1× PCIe x16 · 1× DIO/LPT selectable |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| WMK-7000 | Wall-mount kit for FPC-7XXX Series |
|---|---|
| PAC-180W6C-FSP-ES | 180W AC/DC 19V adapter kit w/ 2-pin/ 3-pin/ 4-pin block |
| WIFI-IN2550 | Intel® AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires |
| ANT-H11 | 1 x 2dBi HSUPA Antenna |
| ANT-D11 | 1 x Wi-Fi dual-band 2.4G/5G Antenna |
| MK-5C-8G/16G/32G/48G | DDR5-4800/5600 8GB/16GB/32GB/48GB SDRAM DIMM kit |
| FAN-4020 | Fan kit (40 x 40 x 20 mm, L=250 mm, 2P) |
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
6× COM · 6× LAN · -10 ~ 60 °C
Why it’s equivalent: enough COM ports · also fanless · has PoE · has DIO · has expansion slots
Compare side by side → Xeon E3 / 6th & 7th Gen Core i7/i5/i3 · 2× COM · 9× LAN · -20 ~ 50 °C
Why it’s equivalent: covers the temperature range · enough COM ports · has PoE · has DIO · has expansion slots
Compare side by side → Core 10th Gen i9/i7/i5/i3 · 6× COM · 3× LAN · -20 ~ 70 °C
Why it’s equivalent: covers the temperature range · enough COM ports · also fanless · has DIO · has expansion slots
Compare side by side → Core 6th/7th Gen i7/i5/i3 · 4× COM · 3× LAN · -20 ~ 55 °C
Why it’s equivalent: covers the temperature range · enough COM ports · also fanless · has DIO · has expansion slots
Compare side by side → Celeron N3350 · 9× COM · 3× LAN · -20 ~ 70 °C
Why it’s equivalent: covers the temperature range · enough COM ports · also fanless · has PoE · has DIO
Compare side by side → 10th Generation Intel Xeon / Core Series Processors · 2× COM · 2× LAN · -40 ~ 70 °C
Why it’s equivalent: covers the temperature range · enough COM ports · also fanless · has expansion slots
Compare side by side →
