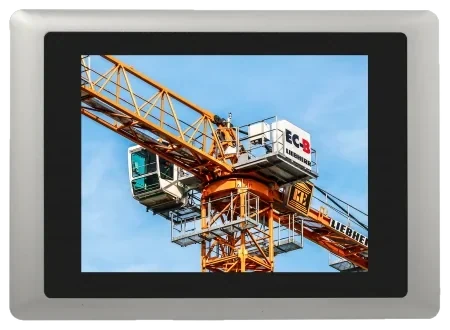

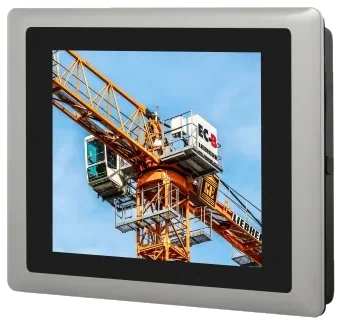

MaytinhcongnghiepCS-100/M1001
One series, 1 configurations.
Display only — no computer inside; the video signal must come from another machine.
High-brightness display, readable under direct sunlight. For places where strong light hits the screen — outdoors, near workshop doors, driver cabs.
True for every configuration in the series
The items below stay the same whichever configuration you pick — no need to re-check after choosing.
- Operating temperature range
- -5 ~ 60 °C
- DC power input
- 9–48 VDC
- IP protection rating
- IP65 FRONT PANEL
- Resolution
- 800 x 600
- Display brightness
- 1600 nit
- COM ports
- 1 ports
- Power over Ethernet
- No PoE
- Digital I/O (DIO)
- No
- Cooling
- Fan-cooled
- Touch screen
- Capacitive
Choose a configuration
Filter quickly, then click a model number for the full specs. Not sure which one, send us your installation conditions and our engineers will pick for you.
| Select for comparison | Model number | Screen size | Resolution | Brightness | Touch | CPU | Temp. range | IP rating | Cooling | DC input | Ports | PoE · DIO | Reference price |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CS-108C-R10/M1001-R12 | 8.4″ | 800 x 600 | 1600 nit | Capacitive | — | -5~60°C | IP65 FRONT PANEL | Fan-cooled | 9–48 VDC | 1 COM | — |
No configuration matches these filters. Remove a condition, or ask an engineer — the version you need may be orderable even if it is not on the site.
Tick 2–3 configurations in the first column to put them side by side — the comparison page highlights exactly the cells that differ, so you don’t have to scan every row.
Not sure which configuration fits?
Describe the installation site — temperature, vibration, power supply, devices to connect — and IPC247 engineers will build a complete configuration for those conditions.
