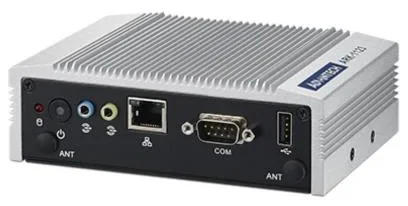

ARK-1123H-EP1A2
Máy tính công nghiệp nhúng không quạt thiết kế siêu nhỏ gọn, hỗ trợ dải nhiệt độ hoạt động từ -20 đến 60°C, nguồn 12V DC jack khóa ren chống xê dịch, tích hợp giải pháp ePaper Manager với 500 license kết nối, trang bị vi xử lý Intel Celeron J1900 Quad Core và RAM 8GB.
- Thiết kế không quạt (Fanless) với vỏ nhôm công nghiệp tản nhiệt hiệu quả
- Dải nhiệt độ vận hành rộng từ -20°C đến 60°C (với mSATA/SSD/RAM nhiệt độ rộng)
- Đầu vào nguồn 12V DC dạng jack cắm khóa ren chắc chắn
- Khả năng chống va đập 30G và chống rung 3Grms
giá tham khảo · updated 2026-08-09
11.600.000đ – 19.100.000đ
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model ARK-1123H-EP1A2 within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (Kèm SSD/mSATA/RAM nhiệt độ mở rộng với luồng khí 0.7m/s) |
|---|---|
| Power input | 12V |
| Power connector | Threaded DC jack |
| Mounting | VESA, DIN Rail, Wall Mounting |
| Dimensions (mm) | 133.8 x 43.1 x 94.2 |
| Weight (kg) | 0.8 |
| Vibration resistance | 3 Grms với mSATA/SSD, 0.5 Grms với HDD — IEC 60068-2-64 |
| Certifications | CE, FCC Class B, CCC, BSMI, UL, CB |
Computing
| CPU | Intel Celeron J1900 |
|---|---|
| Chipset | Intel Atom SoC integrated |
| RAM | DDR3L 1333MHz · 1 slots · up to 8GB |
| Storage | 1× 2.5" SATA HDD · 1× mSATA |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 1× RS-232/422/485 |
|---|---|
| LAN | 2× 10/100/1000 Mbps Intel I210 |
| USB | 2× USB 2.0 · 1× USB 3.0 |
| Display outputs | 2× HDMI |
| Expansion | 1× Full-size Mini PCIe · 1× Half-size mPCIe |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (29 items)
| 96PSA-A36W12W7 | AC to DC adapter DC 12V/3A 36W, -20 ~ 60° C |
|---|---|
| 1700001524 | Power Cable 3-pin 180cm, USA type |
| 170203183C | Power Cable 3-pin 180cm, Europe type |
| 170203180A | Power Cable 3-pin 180cm, UK type |
| 1700008921 | Power Cable 3-pin PSE Mark 183cm |
| AMK-V003E | ARK-112X series VESA mounting kit |
| AMK-R001E | ARK-112X series DIN-rail mounting kit |
| AMK-W001E | ARK-112X series Wall mounting kit |
| 1700023855-01 | 1M lockable HDMI cable |
| 1700023856-01 | 3M lockable HDMI cable |
| AMO-WIFI08E | WIFI802.11a/b/g/n, Atheros AR9462,2T2R |
| 2070013033 | WES7E 64-bit with EN/JP/TC/SC |
| 2070013371 | WE8S 64-bit with EN/JP/TC/SC |
| 2070014792 | WIN10 IoT LTSB_x64_Eng |
| 2070014334 | Win10 IoT Core_x32 V10.1.10586.0 EN |
| 2070014369 | IDP-WR3.1_x64 V1.0.1 EN |
| EPD-230-001 | 2.9 " Wireless ePaper display device solution in 2.4G |
| EPD-230-011 | 2.9 " Wireless ePaper display device solution in 2.4G |
| EPD-232-001 | 2.9 " Wireless ePaper display device solution in 2.4G |
| EPD-232-011 | 2.9 " Wireless ePaper display device solution in 2.4G |
| EPD-332-001 | 5.6" Wireless ePaper display device solution in 2.4G |
| EPD-332-011 | 5.6" Wireless ePaper display device solution in 2.4G |
| WISE-3240IOS-41A1E | Wireless EPD 2.4G WiFi Network IoT Router in industrial grade for Europe |
| WISE-3240IOS-41A1J | Wireless EPD 2.4G WiFi Network IoT Router in industrial grade for Japan |
| WISE-3240IOS-41A1N | Wireless EPD 2.4G WiFi Network IoT Router in industrial grade for North America |
| WISE-3240IOS-41A1T | Wireless EPD 2.4G WiFi Network IoT Router in industrial grade for Taiwan |
| WISE-3240IOS-41A1C | Wireless EPD 2.4G WiFi Network IoT Router in industrial grade for China |
| WISE-3240IOS-41B1E | Wireless EPD 2.4G WiFi Network IoT Router in commercial grade for Europe |
| WISE-3240IOS-41B1T | Wireless EPD 2.4G WiFi Network IoT Router in commercial grade for Taiwan |
