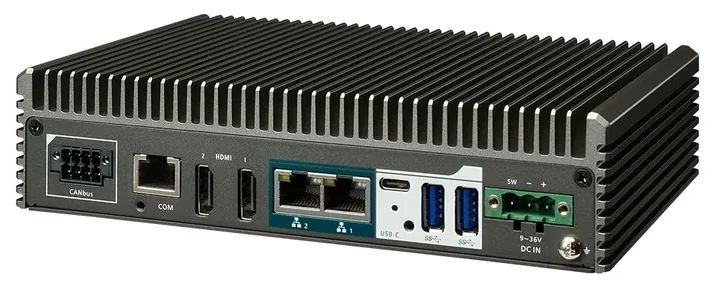

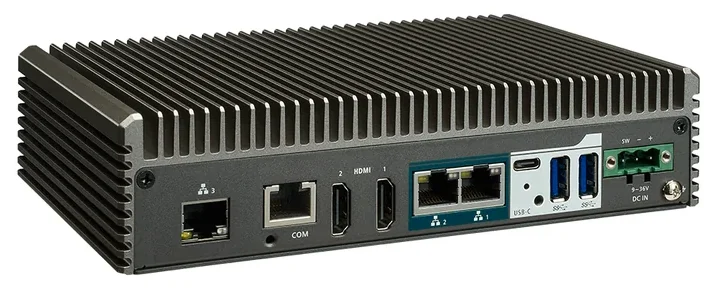

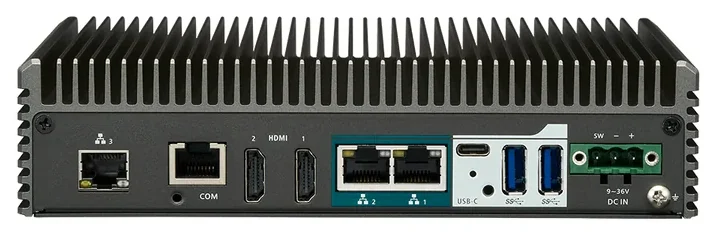

ARES-2000-LAN
Ultra-compact industrial box PC, fanless, operating temperature -20°C~60°C, DC 9~36V input with remote switch, metal + aluminum housing with vibration/shock resistance per MIL-STD-810H — uses Intel Core 5 Processor 120U CPU, 3 x 2.5GbE LAN ports, up to 3 simultaneous displays.
- Ultra-compact body 188 x 120 x 44 mm, fully fanless cooling, operating temperature range -20°C ~ 60°C with airflow
- Wide-range DC input 9~36V with remote control switch, vibration/shock resistant per MIL-STD-810H
- Intel® Core™ 5 Processor 120U (14th Gen Raptor Lake U), 1 x DDR5 SO-DIMM RAM slot
- 3 x 2.5GbE LAN, 3 x USB, 2 x HDMI + 1 x USB-C supporting up to 3 simultaneous displays
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (ambient with air flow) |
|---|---|
| Power input | 9~36V |
| Power connector | DC in + Remote Switch |
| Mounting | Wall-mount (standard), DIN-rail (optional with CTOS bracket), VESA (optional with CTOS bracket) |
| Dimensions (mm) | 188 x 120 x 44 |
| Weight (kg) | 1.1 |
| Vibration resistance | Category 4 — MIL-STD-810H Method 514.8, operating |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel® Core™ 5 Processor 120U |
|---|---|
| Chipset | SoC |
| Storage | M.2 M-key 2242 (PCIe Gen4 x4, SATA) |
| GPU | Integrated Intel® Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 1× RS-232/422/485 (via RJ45 connector) |
|---|---|
| LAN | 3× 2.5GbE Intel i226-LM |
| USB | 2× USB USB-A 3.2 Gen2 · 1× USB USB-C 3.2 (DP Alt, 10W power output 5V/2A) |
| Display outputs | 2× HDMI 2.0 · 1× USB-C DP Alt |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (2 items)
| CLB-2000 | Cable-Lock Bracket for ARES-2000 Series |
|---|---|
| WMK-1973 | Wall Mounting Bracket Kit for ARES Series |
