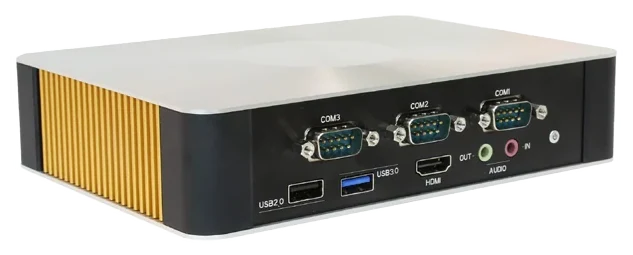

MaytinhcongnghiepARES-1230-POS
Fanless industrial embedded controller, slim lightweight aluminum alloy housing, wall-mount, 12V DC power via DC jack, wide operating temperature range -20~70°C, 60G shock resistance. Equipped with an Intel Celeron N2930 Bay Trail CPU, DDR3L RAM up to 8GB, 6 COM ports (2 with 5V/12V power support), Mini-PCIe expansion slot for 3G/4G and WiFi.
- 6 COM ports, 2 with 5V/12V power output for peripherals
- Wide operating temperature range -20~70°C
- Slim lightweight aluminum alloy housing (933g), wall-mount
- SIM card slot + Mini-PCIe for 3G/4G/WiFi connectivity
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (ambient with air flow) |
|---|---|
| Power input | 12V |
| Power connector | DC-Jack |
| Mounting | Wall-Mount |
| Dimensions (mm) | 180 x 130 x 40 |
| Weight (kg) | 0.933 |
| Vibration resistance | 5~500Hz 3Grms X,Y,Z axis w/SSD — IEC 68-2-64 |
| Certifications | CE, FCC Class A |
Computing
| CPU | Intel Celeron N2930 Quad-Core (Bay Trail SoC) |
|---|---|
| Chipset | Intel SoC |
| RAM | DDR3L-1600MHz SO-DIMM 204-pin · 1 slots · up to 8GB |
| Storage | mSATA SSD (600MB/s HDD transfer rate) |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 DB9 selectable, w/5V/12V (COM1-2) · 4× RS-232/485 DB9 selectable (COM3-6) |
|---|---|
| LAN | 2× GbE Intel i210AT |
| USB | 1× USB USB2.0 Type-A · 1× USB USB3.0/2.0 Type-A |
| Display outputs | 1× DVI-I · 1× HDMI |
| Expansion | 1× mSATA · 1× Full-Size mPCIe · 1× Half-Size mPCIe |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| PAC-P060W-04 | 12V/5A 60W AC/DC Adapter Kit |
|---|---|
| WiFi-AT2130 | Atheros AR9462 WiFi module w/ 10cm & 20cm internal wiring |
| ANT-D11 | 1 x Wi-Fi Dual-band 2.4G/5G antenna |
| MM-3IL-2G | Industrial DDR3L-1333/1600 2GB SO-DIMM SDRAM |
| MM-3IL-4G | Industrial DDR3L-1333/1600 4GB SO-DIMM SDRAM |
| 32GB SSD | mSATA MLC 32GB |
| 64GB SSD | mSATA MLC 64GB |
