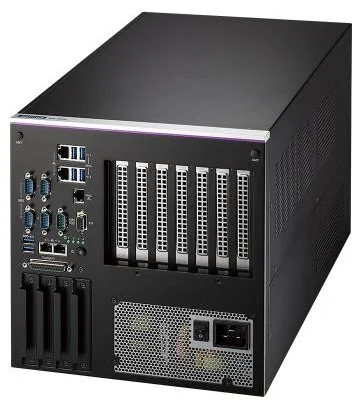

AIR-500D-T50A2
Máy chủ AI Edge công nghiệp chuẩn đĩa cứng kép/khe cắm GPU kép, hoạt động trong dải nhiệt rộng -10°C đến 50°C, tích hợp nguồn ATX 1200W, hỗ trợ lắp đặt dạng Deskmount. Được trang bị vi xử lý Intel Xeon D-1715TER (stepping Z2 mới) và hỗ trợ bộ nhớ RAM DDR4 ECC lên tới 128GB.
- Thiết kế công nghiệp chịu nhiệt độ hoạt động rộng -10 ~ 50 °C với luồng khí 0.7 m/s
- Tích hợp nguồn công suất lớn 1200W ATX cấp nguồn GPU tối đa lên tới 800W
- Hỗ trợ lắp đặt dạng Deskmount chắc chắn cho ứng dụng máy chủ cạnh công nghiệp
- Vi xử lý Intel Xeon D-1715TER (stepping Z2 mới) 4 nhân tiết kiệm điện
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 50 °C (w/ 0.7 m/s airflow (with extended temp peripherals)) |
|---|---|
| Power input | 100-240V AC |
| Mounting | Deskmount |
| Dimensions (mm) | 260 x 270 x 399 |
| Weight (kg) | 10.6 |
| Certifications | CE, FCC Class B, CCC, BSMI, CB(62368), UL(62368), RoHS COMPLIANT 2002/95/EC |
Computing
| CPU | Intel Xeon D-1715TER with new stepping Z2 |
|---|---|
| RAM | DDR4 ECC/non-ECC SO-DIMM · 4 slots · up to 128GB |
| Storage | 4× 2.5" SATAIII Swappable SSD |
| PCI/PCIe expansion slots | 4 |
Connectivity & I/O
| COM | 4× RS-232/422/485 |
|---|---|
| LAN | 4× 10/100/1000 Mbps Intel I210 GbE · 1× 10/100/1000 Mbps Aspeed AST2500 BMC (Management port) |
| USB | 6× USB USB 3.0 |
| Display outputs | 1× VGA |
| Expansion | 1× PCIe x1 · 1× PCIe x4 · 2× PCIe x16 · 1× M.2 B Key · 1× M.2 E Key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (11 items)
| PCIE-2221NP-00A1E | 2-port 10GBase-T Ethernet PCI Express Server Adapter with Intel X550 controller |
|---|---|
| PCIE-2221NP-01A1E | 1-port 10GBase-T Ethernet PCI Express Server Adapter with Intel X550 controller |
| AMO-I029A | TPM2.0 Infineon SLB9670V2.0 |
| 1700021723-02 | Power Cord UL 3P 15A 125V 183cm(IEC320-C19), USA type |
| 1700023533-01 | Power Cord EU 3P 16A 250V 183cm. EU type |
| 1700023534-01 | Power Cord BSI 3P 16A 250V 183cm, UK type |
| 1700023536-01 | Power Cord PSE 3P 20A 250V 183cm, PSE special connector |
| 20706U20DS0053 | Ubuntu Desktop 20.04 LTS |
| 20706WS96S0006 | Windows Server 2019 Standard 64bit |
| 1960104726N001 | Desk mounting kit |
| 2006500D00 | User Manual (Simplified Chinese) |
