Maytinhcongnghiep
- -10~50°COperating temp
- Fan-cooledCooling
- 12–24 VDCPower input
- 2COM ports
- 4LAN ports

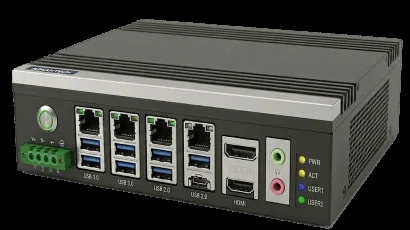

AIR-355-45A1U
AIR-355 industrial Edge AI computer supporting a wide 12~24V DC power range and an operating temperature from -10 to 50°C, integrating an Intel Core Ultra 5 325 processor for up to 95 TOPS AI computing performance.
- Supports a wide -10~50°C industrial operating temperature range
- Wide 12~24V DC input power, supports ATX/AT mode
- Equipped with an Intel Core Ultra 5 325 processor achieving up to 95 TOPS total AI performance
- DDR5 CSODIMM memory supports up to 128GB capacity
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | -10 ~ 50 °C (with 0.7m/s air flow) |
|---|---|
| Power input | 12-24 |
| Power connector | Power in plug |
| Mounting | Mounting Kit |
| Dimensions (mm) | 215 x 190 x 60 |
| Certifications | CE, FCC Class B, CB, UL, CCC, BSMI |
Computing
| CPU | Intel Core Ultra 5 325 |
|---|---|
| RAM | DDR5 6400 MT/s CSODIMM · 2 slots · up to 128GB |
| Storage | M.2 2280 M Key for NVMe · M.2 2242 M Key for NVMe |
| GPU | Intel Graphics (4Xe) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/RS-422/RS-485 |
|---|---|
| LAN | 4× 2.5GbE |
| USB | 7× USB USB 3.2 Gen2 Type A · 1× USB USB 2.0 Type A · 1× USB USB Type C w/USB4, DP alt mode |
| Display outputs | 1× HDMI 2.1 (FRL) · 1× DP 1.4a · 2× Mini DP w/MIPI CSI2 D-PHY |
| Expansion | 1× M.2 2230 E Key · 1× M.2 3052 B Key · 1× CANBus |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (13 items)
| SKY-MXM-2000A-8SDA | Quadro 2000 Ada MXM 8GB Discrete mode Type A |
|---|---|
| 96PSA-A330W24P4-3 | A/D 100-240V 330W 24V C14 TERMINAL BLOCK 4P |
| 1702002600 | Power Cord UL 3P 10A 125V 183cm (US) |
| 1702002605 | Power Cord EU 3P 10A 250V 183cm (EU) |
| 1702031801 | Power Cord BSI 3P 10A 250V 183cm (UK) |
| 1700000237 | Power Cord PSE 3P 12A 125V 183cm (Japan) |
| 1700013977 | Power Cord CCC 3P 10A 250V 200cm 90°(China) |
| AIW-173BQ-GI1 | Qualcomm Wi-Fi 7 M.2 2230 E Key |
| 1751000620-01 | 1x Cable Ant. L300mm for WIFI |
| 1751000651-01 | 1x Antenna for WIFI |
| AIW-356DQ-E01 | Qualcomm 5G M.2 3052 B-Key |
| 1751000623-01 | 1x Cable Ant. L300mm for 5G |
| 1750009372-01 | 1x Antenna for 5G |
Other configurations in the AIR-300 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
Equivalent products from other series
Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.
