AIMB-229VG2-00A1E

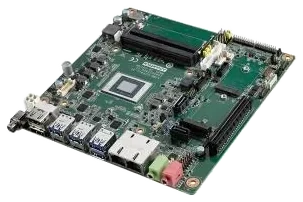

Advantech AIMB-229VG2-00A1E Mini-ITX industrial motherboard in the standard 170x170 mm form factor, running reliably across a 0~60°C range with 12V DC power in AT/ATX mode. Carries an AMD V2748 processor, four independent displays and DDR4 ECC memory up to 64GB.
- Reliable operation in industrial environments across a 0~60°C range
- Flexible 12V DC power input with AT/ATX mode support
- Industrial AMD V2748 processor (8 cores, 54W TDP)
- DDR4 3200MHz memory up to 64GB with ECC error checking
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C |
|---|---|
| Power input | 12V |
| Power connector | 1 x External DC jack (2.5 mm), 1 x Internal 4-pin (2x2) |
| Mounting | Wall mount (with optional AIMB-B2000 bracket) |
| Dimensions (mm) | 170 x 170 |
| Certifications | RoHS |
Computing
| CPU | AMD Embedded V2748 |
|---|---|
| Socket | SOC |
| RAM | DDR4 3200MHz SDRAM · 2 slots · up to 64GB |
| Storage | 2× SATA III · M.2 M-Key (2242/2280) |
| GPU | AMD Integrated Vega GCN |
| PCI/PCIe expansion slots | 1 |
Connectivity & I/O
| COM | 6× RS-232/422/485 |
|---|---|
| LAN | 2× 10/100/1000 Mbps Realtek 8111H |
| USB | 4× USB USB 3.2 Gen 2 · 2× USB USB 3.2 Gen 1 · 2× USB USB 2.0 |
| Display outputs | 2× HDMI 2.0 · 2× DP++ (via USB Type-C) · 1× eDP |
| Expansion | 1× PCIe · 1× M.2 M-Key · 1× M.2 E-Key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| AIMB-B2000-00YE | AIMB-B2000 wallmount chassis w/o adaptor |
|---|---|
| 1960089783T001 | CPU Cooler (CPU TDP 54W, V2748/V2546, H: 58.3mm) |
| 1960089784T001 | CPU Cooler (CPU TDP 35W, V2718/V2516, H: 45mm) |
| 1700026162-01 | USB 2.0 cable with two ports, 30 cm with bracket |
| 20706WX9HS0147 | img W10 19HL AIMB-229 64b 1809 ENU |
| 20706WX9VS0151 | img W10 19VL AIMB-229 64b 1809 ENU |
| 20706WX9ES0162 | img W10 19EL AIMB-229 64b 1809 ENU |
| 20706U20DS0037 | img Ubun20.4 AIMB-229 64b 2004 ENU |
