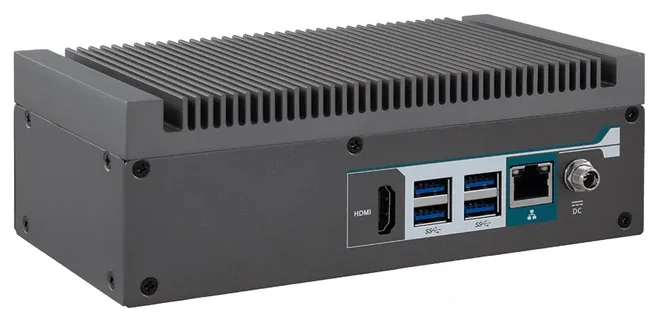

AEC-2001-08

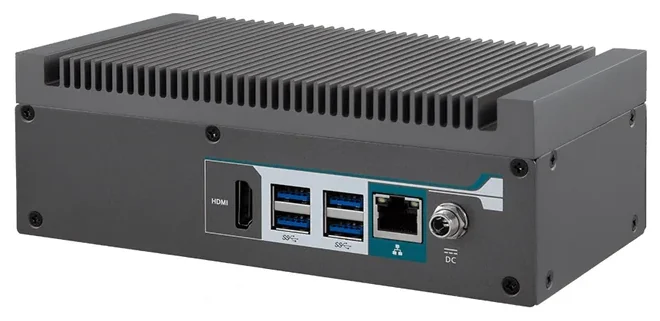

Box-type embedded AI computer, wide operating temperature -20°C~65°C with airflow support, wide-range DC 12~24V input, wall-mount — NVIDIA Jetson Orin Nano 8GB platform, with CAN bus for industrial/vehicle applications.
- Operating temperature range -20°C ~ 65°C (TDP 25W, with 0.63 m/s airflow)
- Wide-range DC input 12~24V, body size 180 x 96 x 60.9 mm, wall-mount
- NVIDIA Jetson Orin Nano 8GB LPDDR5 platform, 67 TOPS performance, supports Super Mode

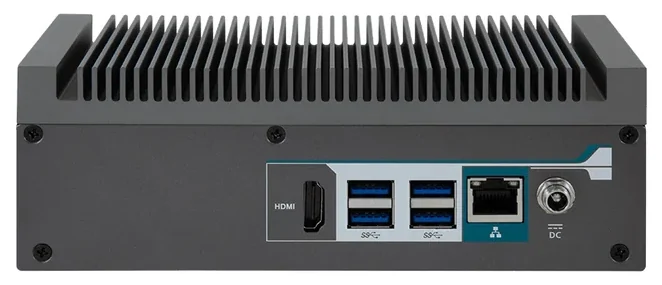

- 1 x GbE, 4 x USB 3.2, 1 x HDMI 2.0, CAN 2.0, M.2 expansion slot for SSD/WiFi
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AEC-2001-08 within 4 working hours.
Industrial factors
| Power input | 12~24V |
|---|---|
| Mounting | Wallmount |
| Dimensions (mm) | 180 x 96 x 60.9 |
| Weight (kg) | 1.25 |
Computing
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit |
|---|---|
| RAM | LPDDR5 · up to 8GB |
| Storage | M.2 M-Key (2280) NVMe SSD 128GB (default), optional up to 2TB |
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CUDA cores | 1024 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× GbE |
|---|---|
| USB | 1× USB USB 2.0 Type-C (recovery) · 4× USB USB 3.2 Gen1 Type-A |
| Display outputs | 1× HDMI 2.0 |

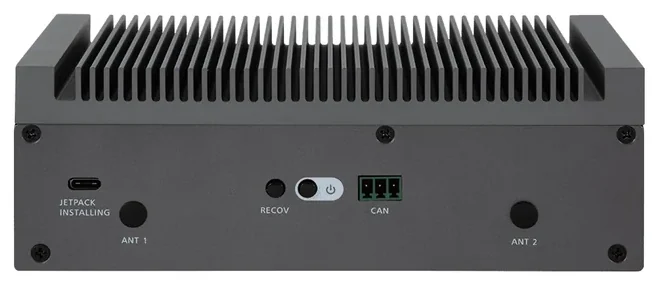

| Expansion | 1× M.2 M-key 2280 · 1× M.2 E-key 2230 · 1× CAN 2.0 · OOB |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.

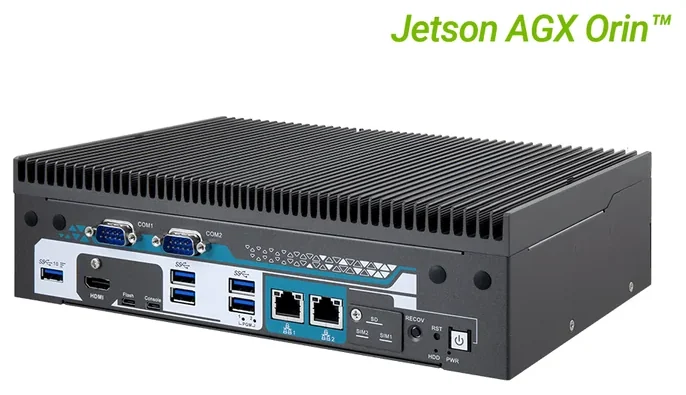

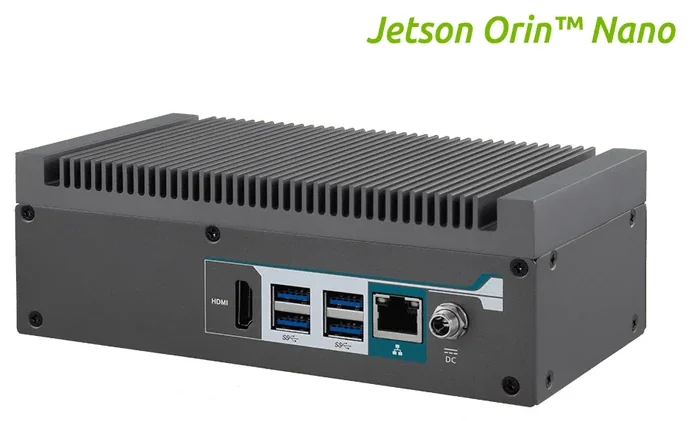

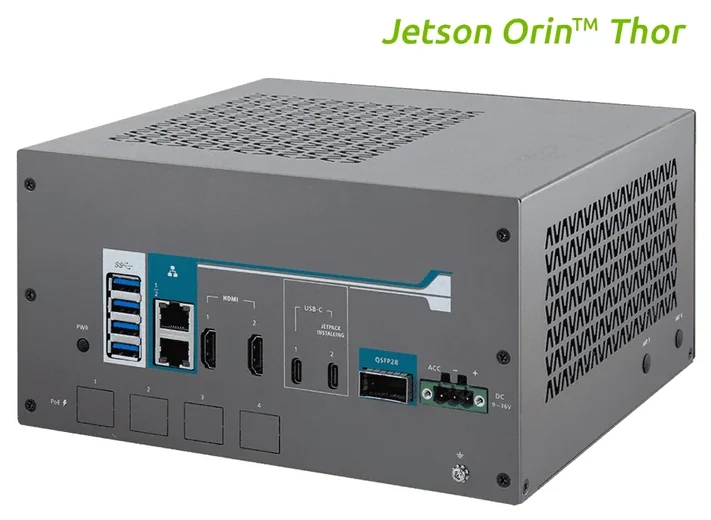

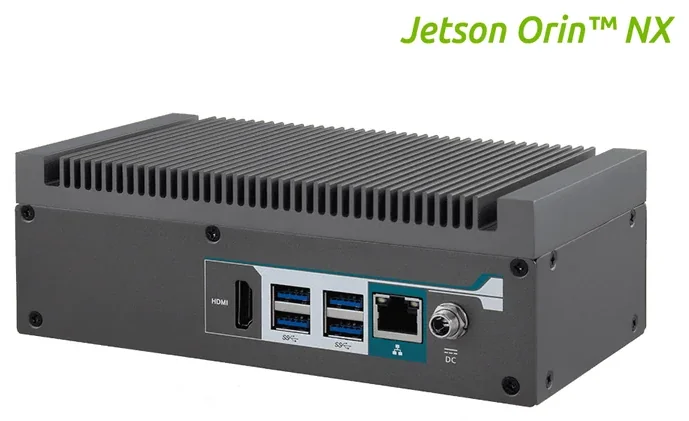

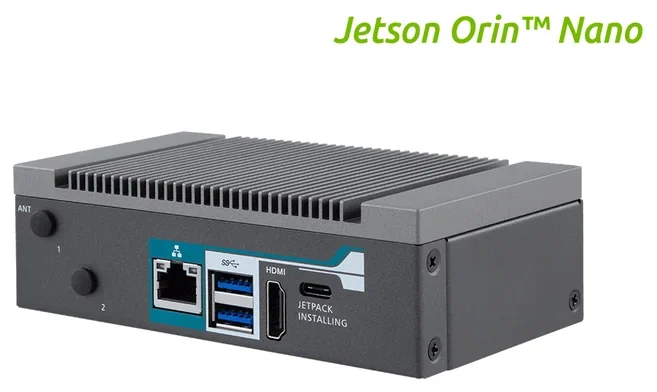

Other configurations in the AEC-2000 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
