AEC-2000-4GB

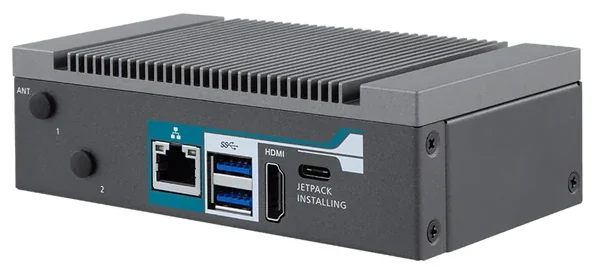

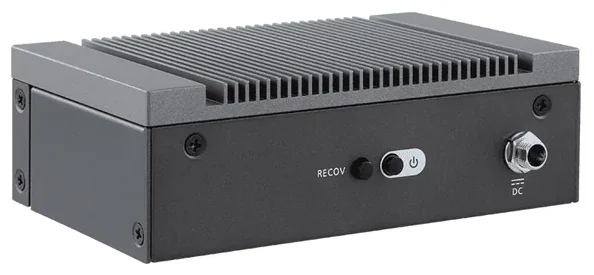

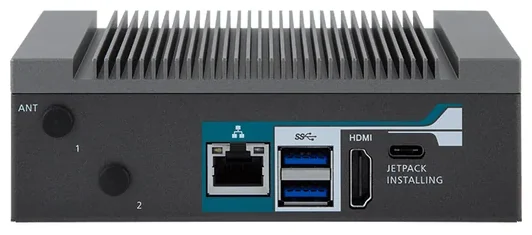

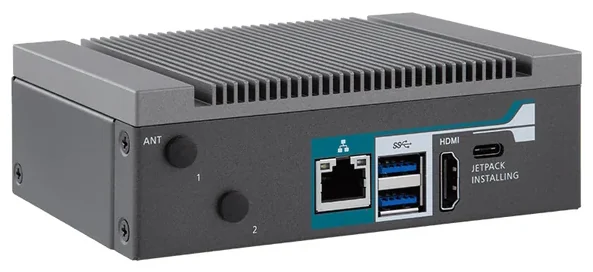

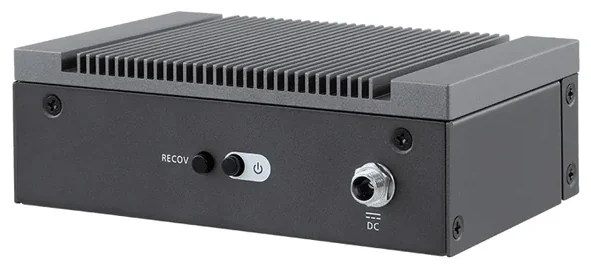

Compact box-type embedded AI computer, wide operating temperature -25°C~50°C with airflow support, wide-range DC 9~24V input, wall-mount — NVIDIA Jetson Orin Nano 4GB platform for edge AI applications.
- Operating temperature range -25°C ~ 50°C (with 0.63 m/s airflow), suitable for installation in non-air-conditioned locations
- Wide-range DC input 9~24V, compact body 130 x 82 x 49 mm, wall-mount
- NVIDIA Jetson Orin Nano 4GB LPDDR5 platform, supports Super Mode for AI inference
- 1 x GbE, 2 x USB 3.2, 1 x HDMI 2.0, M.2 expansion slot for SSD/WiFi
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model AEC-2000-4GB within 4 working hours.
Industrial factors
| Operating temperature range | -25 ~ 50 °C (0.63 m/s air flow) |
|---|---|
| Power input | 9~24V |
| Mounting | Wallmount |
| Dimensions (mm) | 130 x 82 x 49 |
| Weight (kg) | 2 |
| Vibration resistance | Category 4 — MIL-STD-810G Method 514.6 Procedure I (TBA) |
| Certifications | CE, FCC |
Computing
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|---|---|
| RAM | LPDDR5 · up to 4GB |
| Storage | M.2 Key M (2280) NVMe SSD 128GB |
| GPU | 512-core NVIDIA Ampere architecture GPU with 16 Tensor cores |
| CUDA cores | 512 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× GbE |
|---|---|
| USB | 1× USB USB 2.0 Type-C (recovery) · 2× USB USB 3.2 Type-A |
| Display outputs | 1× HDMI 2.0 |
| Expansion | 1× M.2 M-Key 2280 · 1× M.2 E-Key 2230 · 1× 2x10-pin header |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Other configurations in the AEC-2000 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
