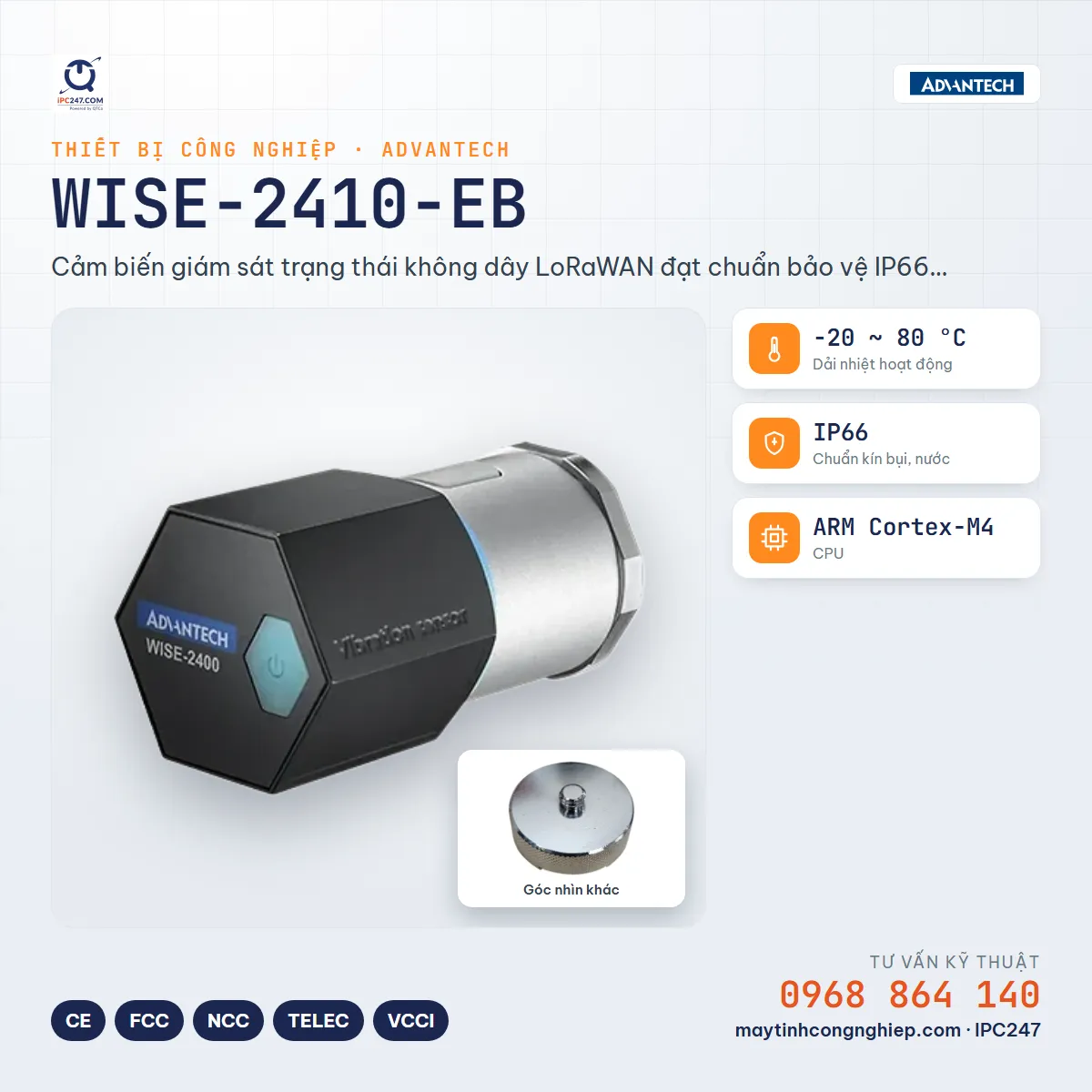

WISE-2410-EB
An IP66-rated wireless LoRaWAN condition monitoring sensor, designed for industrial environments with a wide -20 to 80°C temperature range. The device runs on a 3.6V AA battery with up to 2 years of life, requiring no installation wiring. It integrates an ARM Cortex-M4 processor, a 3-axis accelerometer, and a temperature sensor, and supports edge computation of waveform characteristics.
- LoRaWAN wireless connectivity, EU 863-870 MHz band
- Industrial-grade IP66 water- and dust-resistant design, operating from -20 to 80°C
- Uses a 3.6V AA battery, requiring no wiring, with up to 2 years of battery life
- Integrated 3-axis (X-Y-Z) accelerometer and temperature sensor
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model WISE-2410-EB within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 80 °C (Battery powered) |
|---|---|
| Power input | 3.6 |
| Mounting | Stud mount, Mounting pad, Adhesives |
| Dimensions (mm) | 84.7 x 48.3 |
| IP protection rating | IP66 |
| Certifications | CE (RED), FCC, NCC, TELEC, VCCI, BSMI, RCM, ANATEL, ISO 10816/20816 |
Computing
| CPU | ARM Cortex-M4 |
|---|---|
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| USB | 1× USB Micro-B USB |
|---|
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (16 items)
| 9662410AJ00 | WISE-2410-JA Patch |
|---|---|
| 9662410AT00 | WISE-2410-TA AS923 Patch |
| 9662410AK00 | WISE-2410-KA Patch |
| 9662410AZ00 | WISE-2410-ZA AU915 Patch |
| 96632410R00 | WISE-2410-RA Patch |

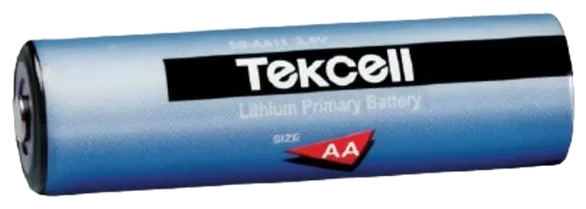

| 1760002647-01 | Bat.Cylindrical 3.6V/2500mAh AA Li/SOCl2 |

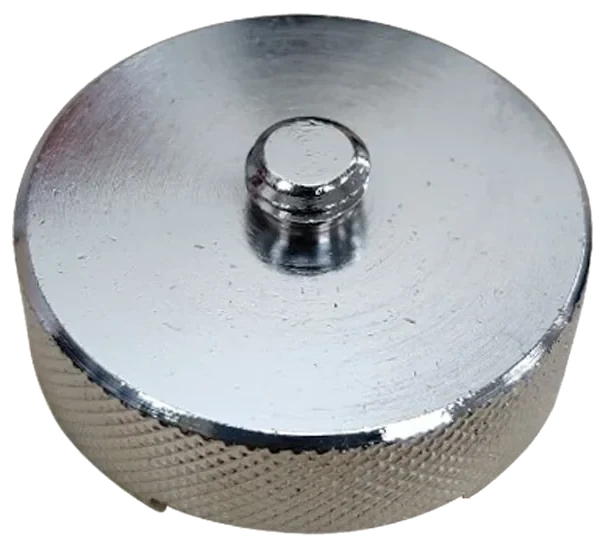

| 25F7000004N000 | Magnet base D30XH9mm for WISE-2410 installation |

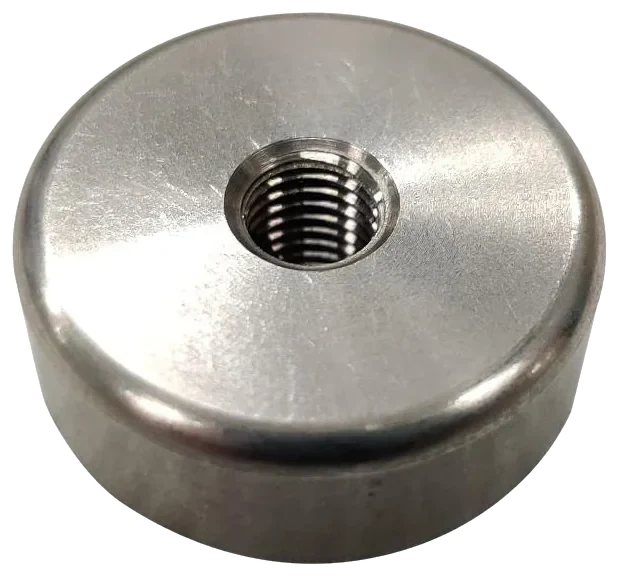

| WISE-2410-MTB01 | Metal base for WISE-2410 installation |
| WISE-6610-NB | LoRaWAN gateway with NA915 MHz |
| WISE-6610-EB | LoRaWAN gateway with EU868 MHz |
| WISE-6610-TB | LoRaWAN gateway with AS923 MHz |
| WISE-6610-JB | LoRaWAN gateway with JP923 MHz |
| WISE-6610-EL-NB | LoRaWAN gateway with NA915 MHz and Edgelink |
| WISE-6610-EL-EB | LoRaWAN gateway with EU868 MHz and Edgelink |
| WISE-6610-EL-TB | LoRaWAN gateway with AS923 MHz and Edgelink |
| WISE-6610-EL-JB | LoRaWAN gateway with JP923 MHz and Edgelink |
