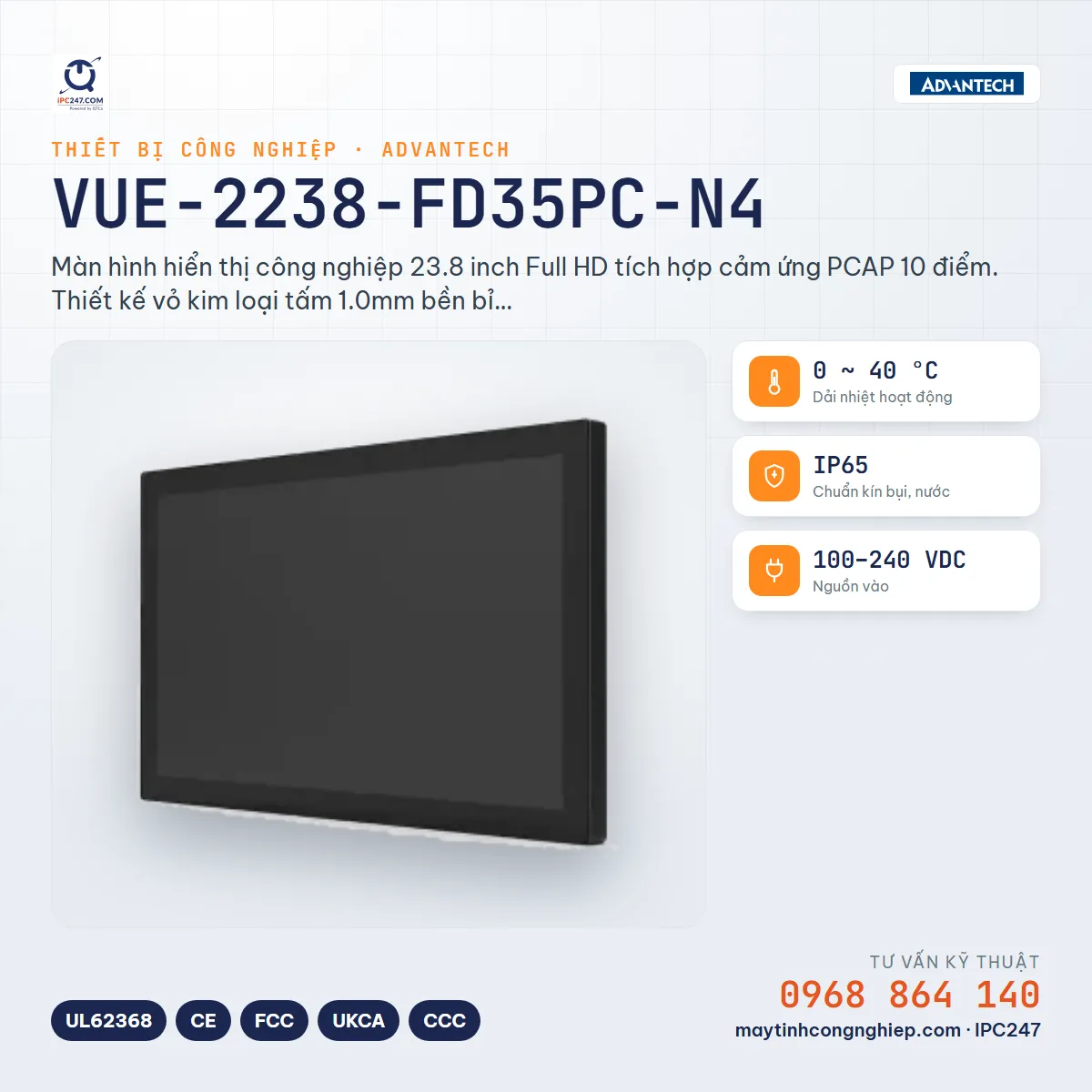

VUE-2238-FD35PC-N4
A 23.8-inch Full HD industrial display monitor with integrated 10-point PCAP touch. Durable 1.0mm sheet-metal housing design, with an IP65 front panel against water/dust and IK08 impact resistance. Supports a 0°C to 40°C operating temperature range, an AC-DC 20V 65W power supply, and a China power cord.
- IP65 water-resistant front panel with high-level IK08 impact resistance
- 10-point PCAP multi-touch capacitive touch, supporting bare-hand, gloved, and stylus operation
- Sturdy 1.0 mm sheet-metal housing (black) for industrial applications
- 23.8-inch Full HD display with a fully flat panel and AG anti-glare treatment
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model VUE-2238-FD35PC-N4 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | 100-240VAC |
| Mounting | VESA grid 100 x 100 mm, Side mount bracket |
| Dimensions (mm) | 585 x 353 x 55 |
| Weight (kg) | 6.2 |
| IP protection rating | Front IP65 |
| Certifications | IEC/EN 60950+62368, UL62368, CE, FCC, UKCA, CCC, BSMI |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| USB | 1× USB USB 3.0 Type-B (Touch) · 2× USB USB 3.0 Type-A |
|---|---|
| Display outputs | 1× VGA · 1× HDMI · 1× DVI-D · 1× DisplayPort |
Display
| Screen size | 23.8" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 350 |
| Touch | Projected Capacitive Touch (PCAP), 10 points |
| Frame type | 16:9 |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (3 items)
| 96OT-A15DEE-B0 | Active Stylus Pen for VUE-2000 series, Black |
|---|---|
| 96OT-SD-10H10-XL | Desktop Stand for VUE-2000, VESA100x100, Large, support up to 10kg |
| 96OT-CM-V2K238 | Cable management kit for VUE-2238 |
