VUE-2238-FD35MA-N0

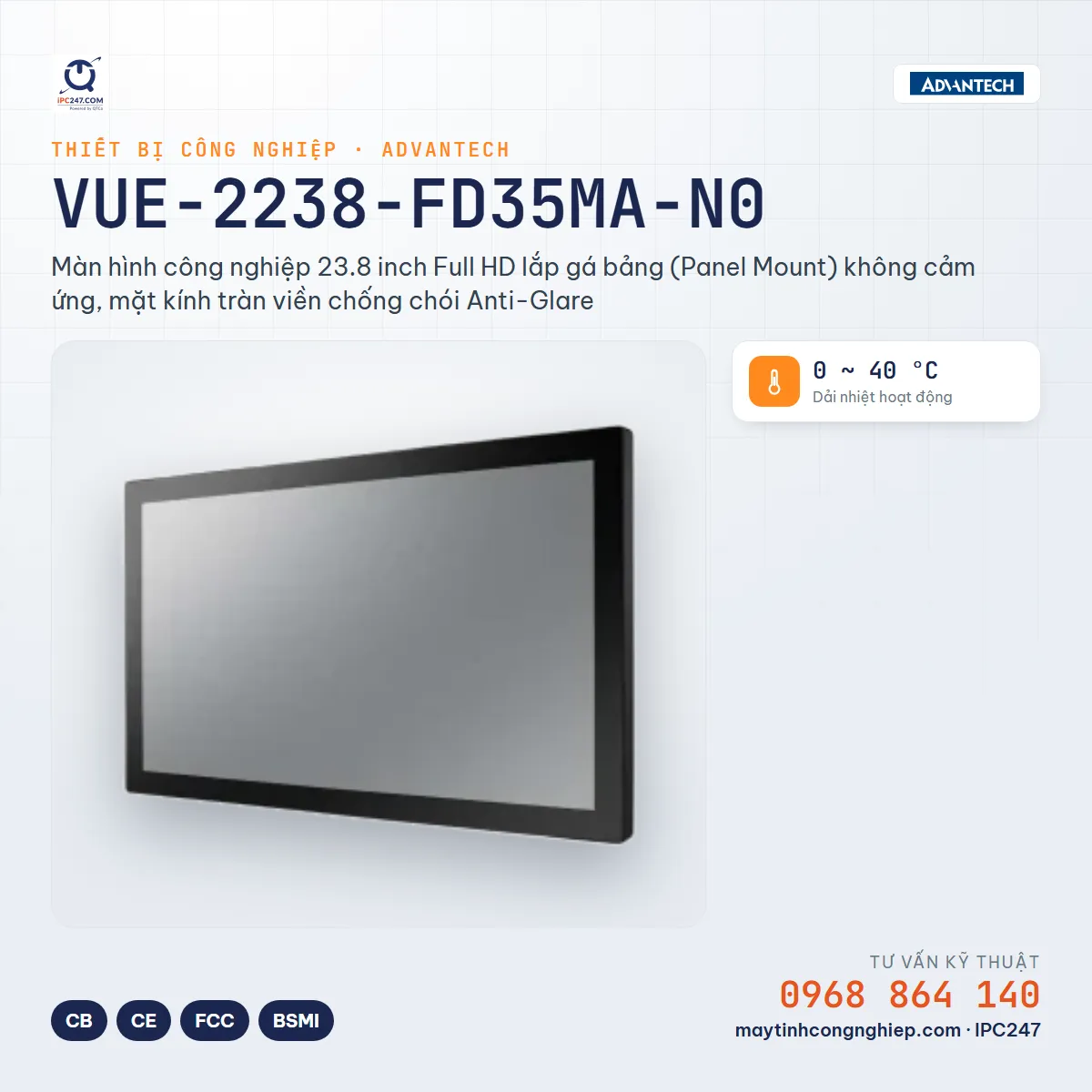

A 23.8-inch Full HD industrial panel-mount monitor (non-touch) with an anti-glare full-flat glass design. Operates across a 0~40°C temperature range with a standard industrial 24VDC power input.
- Operates from 0°C to 40°C, with industrial-grade components ensuring durable operation
- Standard industrial 24VDC power supply via an external 60W AC-to-DC power adapter
- Flexible mounting via 100x100mm VESA standard or a 64mm side-mount bracket
- 23.8-inch FHD (1920x1080) display, 350 nits brightness, anti-glare (AG) surface treatment
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model VUE-2238-FD35MA-N0 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | 24VDC |
| Mounting | VESA 100 x 100 mm, Side mount screw hole (64 mm) |
| Dimensions (mm) | 584.42 x 352.42 x 55.14 |
| Weight (kg) | 6.2 |
| Certifications | CB, CE, FCC, BSMI |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| USB | 2× USB USB 3.0 Type-A |
|---|---|
| Display outputs | 1× VGA · 1× HDMI · 1× DVI-D · 1× DisplayPort |
Display
| Screen size | 23.8" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 350 |
| Touch | N/A |
| Frame type | 16:9 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| 96OT-A15DEE-B0 | Active Stylus Pen for VUE-2000 series, Black |
|---|---|
| 96OT-SD-10H10-XL | Desktop Stand for VUE-2000, VESA100x100, Large, support up to 10kg |
| 96OT-CM-V2K238 | Cable management kit for VUE-2238 |
| XTYT-FSP060-DAAN3 | Power adapter 100-240V 60W 24V |
