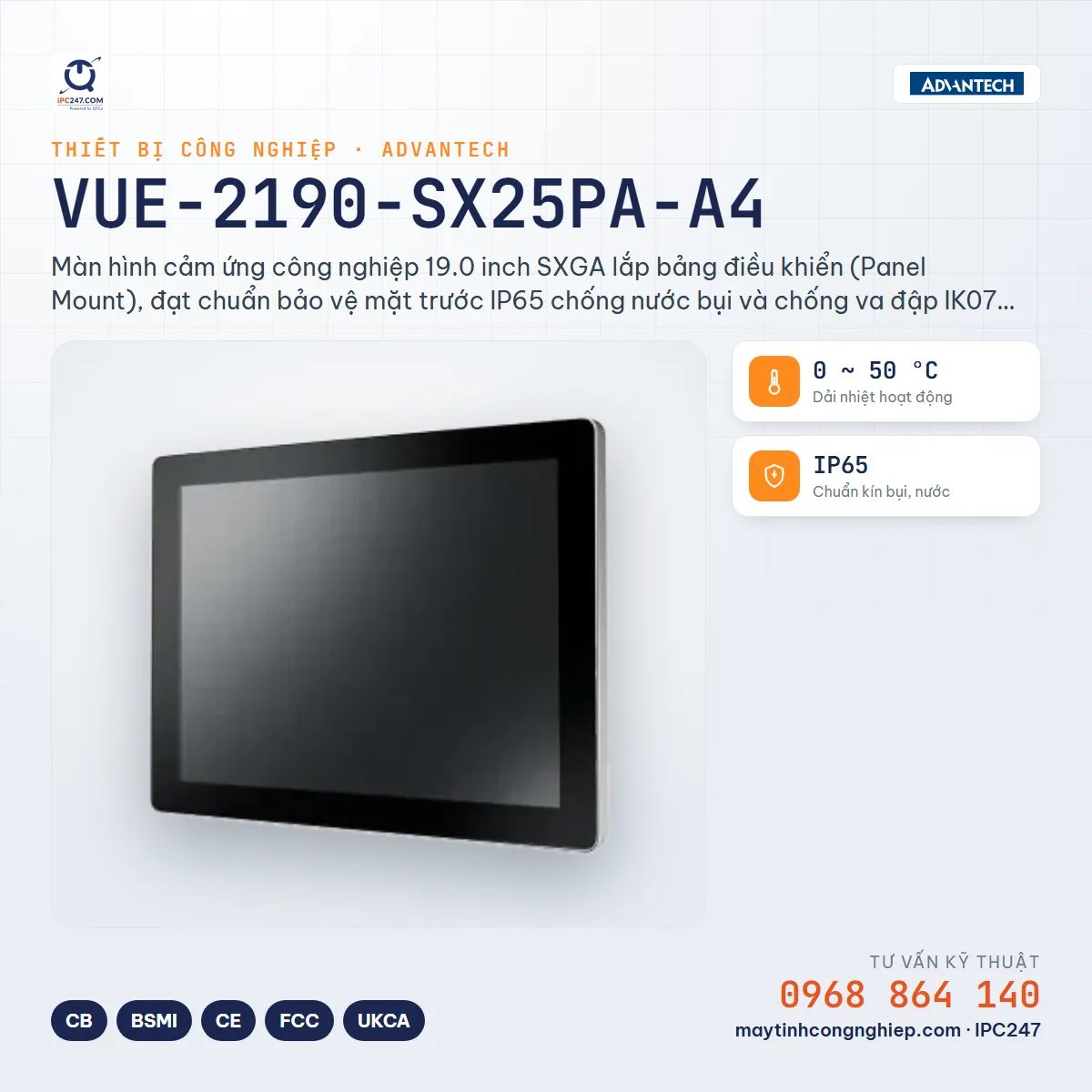

VUE-2190-SX25PA-A4
A 19.0-inch SXGA industrial panel-mount touch monitor with IP65 front-panel protection against water and dust and IK07 impact resistance, supporting a 0~50°C operating temperature range, equipped with versatile VGA, DVI-D, and HDMI connectivity plus a power cord for the Japan, Korea, Australia, and Middle East markets.
- IP65 front-panel protection against water and dust, plus high-level IK07 impact resistance
- Modern, elegant full-flat cover glass design
- Operating temperature range of 0°C ~ 50°C and operating humidity of 10% - 90%
- 19.0-inch SXGA 5:4 display with anti-glare cover glass for optimal visibility
reference price (estimated by segment) · updated 2026-08-09
19,300,000 ₫ – 35,500,000 ₫
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model VUE-2190-SX25PA-A4 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 50 °C |
|---|---|
| Power input | 12 |
| Mounting | Panel Mount, VESA 100 x 100 mm |
| Dimensions (mm) | 423.60 x 348.60 x 46.50 |
| Weight (kg) | 5 |
| IP protection rating | IP65 Compliant Front side |
| Certifications | CB, BSMI, CE, FCC, UKCA, CCC |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| USB | 1× USB USB Type-B (Touch function) |
|---|---|
| Display outputs | 1× VGA · 1× DVI-D · 1× HDMI |
Display
| Screen size | 19" |
|---|---|
| Resolution | 1280 x 1024 (SXGA) |
| Brightness (nit) | 250 |
| Touch | Projected Capacitive Touch (PCAP), 10 Points |
| Frame type | 5:4 |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| Power Adapter (1.8M, Black) | |
| Power cord (1.8M, Black, incl. Japan, Korea, Australia, and Middle East Power Cord) | |
| VGA Cable (1.8M, Black) | |
| DVI cable (1.8M, Black) | |
| HDMI cable (1.8M, Black) | |
| USB cable (1.8M, Black), for touch function | |
| Side mount bracket kit (steel*4pcs, with 8pcs M4X5 screws and 8pcs M4 screws) | |
| Startup manual (Paper) |
