UTC-W1962A
19.5-inch Panel PC, die-cast aluminum frame, fanless design, IP65-rated front panel, 0-50°C operating temperature range (extended option). Standard 12V DC power (optional wide 9-36V range), supports AT/ATX mode. Uses Intel Celeron J1900 CPU, 6 COM ports, 6 USB ports for industrial applications.
- Die-cast aluminum frame, fanless design, IP65-rated front panel
- 0~50°C operating temperature range, extended option available
- Standard 12V DC power, optional wide 9-36V range, supports AT & ATX power modes
- Wireless-ready design, Mini-PCIe expansion slot
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (extended temperature range optional) |
|---|---|
| Power input | 12V DC standard, 9-36V DC optional |
| Power connector | 3-pin Phoenix connector |
| Mounting | VESA Bracket (optional) |

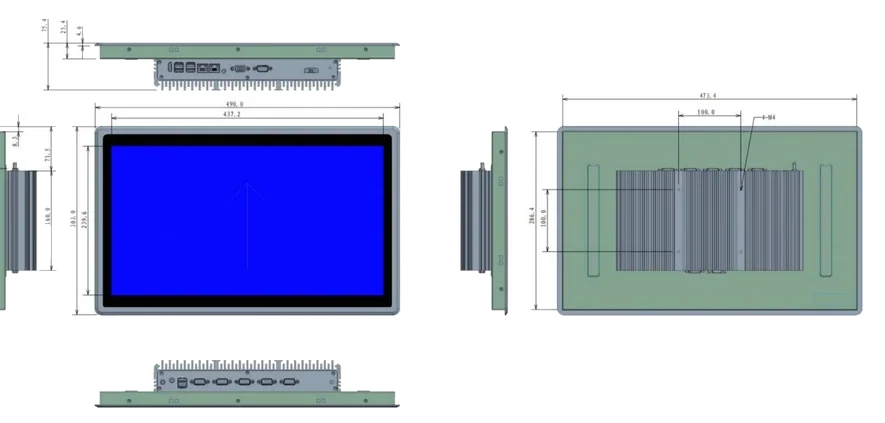

| Dimensions (mm) | 490 x 303 x 75.4 (cutout 473.4 x 286.4) |
| Weight (kg) | 8 |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, RoHS |
Computing
| CPU | Intel Celeron J1900 (Bay Trail-D) |
|---|---|
| RAM | DDR3L · Single Socket slots · up to 8GB |
| Storage | mSATA SSD Full Size · SATA 2.5" SSD |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 6× RS232, DB9 (2x RS485/RS422 optional) |
|---|---|
| LAN | 2× 10/100/1000Mbps |
| USB | 5× USB USB 2.0 · 1× USB USB 3.0 |
| Display outputs | 1× HDMI · 1× VGA |
| Expansion | 1× Mini-PCIe |
Display
| Screen size | 19.5" |
|---|---|
| Resolution | 1920x1080 |
| Brightness (nit) | 300 |
| Touch | Capacitive Touch |
| Frame type | 16:9 |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (2 items)
| VESA Bracket | |
| Power Cable 3-pin 200cm |
