UTC-542IP-ATB0E
The 42.5-inch Ubiquitous Touch Computer industrial touch computer has a fanless cooling design, is shock-resistant, resistant to 0.5G vibration, has an IP65 front panel, supports a 100~240V AC power input, and 200 mm VESA mounting. The unit is equipped with an 11th Gen Intel Core i5-1145G7E processor and 8GB RAM.
- IP65 / NEMA4 front panel protection against dust and water
- Durable fanless design for industrial environments
- Withstands 0.5G vibration and 5G shock
- Supports a flexible 100~240V AC power input range
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | 100~240V |
| Power connector | 24V, 9.59A |
| Mounting | VESA 200 mm |
| Dimensions (mm) | 1016.9 x 605.2 x 60.5 |
| Weight (kg) | 24.6 |
| Vibration resistance | 0.5G |
| IP protection rating | IP65 (Front Panel) |
| Certifications | CE, FCC, UL, CB, BSMI |
Computing
| CPU | Intel Core i5-1145G7E |
|---|---|
| RAM | DDR4-3200 · 2 slots · up to 64GB |
| Storage | 2.5 SATA SSD bay · M.2 M-Key 2280 (PCIe x4 Gen.4 for PCIe SSD), optional SATA |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232 (RS-422/485) |
|---|---|
| LAN | 2× GbE LAN1: Intel i219LM, LAN2: Intel i210AT/IT |
| USB | 4× USB USB 3.2 Gen 2x1 10Gbps · 1× USB USB Type-C (USB 3.2 Gen 2x2 20Gbps, support DP1.4a via Alt. Mode) · 1× USB USB 2.0 (Side Port) |
| Display outputs | 1× HDMI · 1× DP |
| Expansion | 1× M.2 E-Key 2230 · 1× M.2 B-Key 3042 · 1× M.2 M-Key 2280 |
Display
| Screen size | 42.5" |
|---|---|
| Resolution | 1920 x 1080 |
| Brightness (nit) | 450 |
| Touch | Projected Capacitive Touch Panel (Pcap. Flat Glass) |
| Frame type | 16:9 widescreen |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| 1702002605 | Power cord 2P FRANCE 10A/16A 220V 1.83M 90D |
|---|---|
| 1702002600 | Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D |
| 1700000596-11 | Power Cord (China) CCC,10A 250V, 3P 1830mm |
| 1700032693-11 | Power Cord UK BSI 2P 10A 250V 180cm 18AWG |

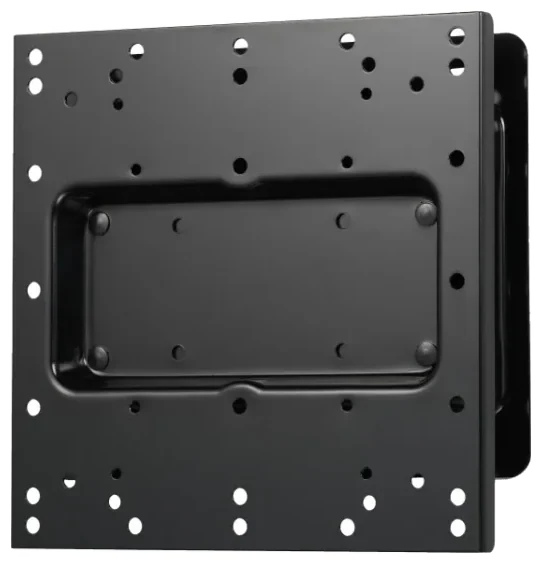

| ARES-12290-L202000 | Wall Mount kit for UTC-532 |
| UTC-H01-STANDE | H-shaped floor stand |
| UTC-WIFI-A5E | AIW-163BR 802.11ax with BT5.2, PCIe-USB, Realtek 8852BE, M.2 2230 |
| UTC-WIFI-A6E | EWM-W179,802.11ax/ac/b/g/n, 2T2R, BT5.2, M.2 |
Other configurations in the UTC-500 series
Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.
