Máy tính cảm ứng công nghiệp Advantech UTC-515GR

Panel PC Advantech UTC-500

UTC-515GR-ATB0E

Máy tính cảm ứng công nghiệp All-in-One 15.6 inch thiết kế không quạt, tiêu chuẩn chống nước bụi IP65 mặt trước, dải nhiệt hoạt động rộng, khung vỏ nhôm đùn chắc chắn, trang bị vi xử lý Intel Pentium N4200, RAM 4GB và màn hình cảm ứng điện trở 5 dây.

Kháng nước và bụi bẩn đạt chuẩn IP65 mặt trước
Thiết kế khung nhôm đùn nguyên khối, không quạt tản nhiệt giúp hoạt động êm ái và tin cậy
Màn hình rộng 15.6 inch hỗ trợ cả hướng hiển thị ngang và dọc
Thiết kế rãnh cạnh bên cho phép lắp đặt linh hoạt các thiết bị ngoại vi

giá tham khảo · updated 2026-08-09

25.600.000đ – 41.800.000đ

This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.

Get configuration advice Compare this machine Find equivalent products

Or leave your phone number — an engineer will quote model UTC-515GR-ATB0E within 4 working hours.

Industrial factors

Operating temperature range	0 ~ 40 °C
Power input	12VDC
Power connector	DC Input Jack
Mounting	VESA 100 x 100 mm
Dimensions (mm)	390 x 240 x 45
Weight (kg)	4.85
Vibration resistance	1Grms với HDD, 2Grms với SSD (5 ~ 500Hz) — IEC 60068-2-64
IP protection rating	IP65 (mặt trước)
Certifications	CE (RED Compliance), EN 61000-6-2: 2005 / AC: 2005, FCC, UL, CB, CCC

Computing

CPU	Intel Pentium N4200
RAM	DDR3L 1867 MHz · 1 slots · up to 8GB
Storage	1× 2.5" SATA HDD/SSD Bay
PCI/PCIe expansion slots	0

Connectivity & I/O

COM	2× RS-232 (RS-422/485 tùy chọn)
LAN	2× 10/100/1000 Mbps Intel I210AT
USB	2× USB 2.0 · 2× USB 3.0
Display outputs	1× VGA · 1× HDMI
Expansion	1× MiniPCIe · 1× M.2

Display

Screen size	15.6"
Resolution	1366 x 768
Brightness (nit)	400
Touch	Analog Resistive 5-wire
Frame type	Nhôm đùn
Front IP rating	IP65

Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.

We only use this number to answer your request.

Optional accessories & modules (18 items)

1702002600	Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D
1702002605	Power Cord 2P FRANCE 10A/16A 220V 1.83M 90D
1700000596	Power Cord (China) CCC,10A 250V, 3P 1830mm
1700018704	Power Cord UK BSI 2P 10A 250V 180cm 18AWG
1960060674N001	IO Cover for UTC-515 series
UTC-P01-A1E	5M Camera Module For UTC-5XX (USB connection)
UTC-P02-A0E	Magnet Strip Reader For UTC-5XX (USB connection)

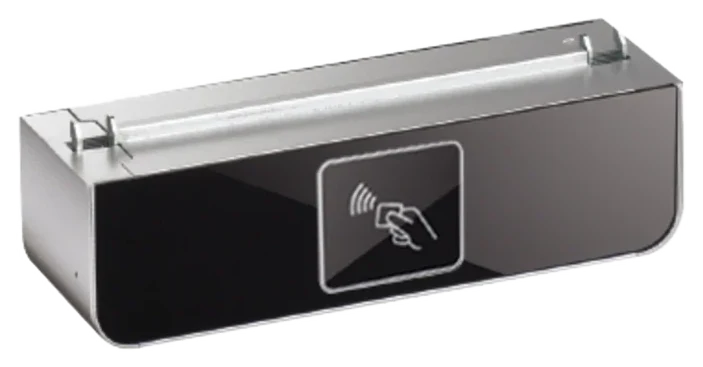

UTC-P03-A1E	RFID Reader For UTC-5XX (USB connection)
UTC-P06-A2E	Smart Card Reader For UTC-5XX (USB connection)
UTC-P07-A4E	2D Barcode Module (Honeywell) for UTC-500 Series (USB connection)
96PD-00824	UTK-700 Desktop Stand (w/o Printer)
96PD-00825	UTK-700 Extension Tower (For 96PD-00824 only)
UTC-T01-STAND	Triangle shape floor stand
UTC-H01-STANDE	H-shaped floor stand
ARES-2424X-S170201	Table Stand,100x100/75x75
ARES-12250-L101000	Wall Mount, 75/100mm
UTC-WIFI-A5E	AIW-163BR 802.11ax with BT, PCIe-USB, Realtek 8852BE, M.2 2230
UTC-WIFI-A6E	EWM-W179, 802.11ax/ac/b/g/n, 2T2R, BT5.2, M.2

Other configurations in the UTC-500 series

Same chassis, same mounting — they differ in screen size and CPU. If the model above isn’t quite right, switching to one of these is usually enough.

UTC-510DP-ATB1E 10.1″ · Celeron J1900 UTC-510GP-ATB1E 10.1″ · Pentium N4200 UTC-510GP-ATN1E 10.1″ · Pentium N4200 UTC-510JP-ATB0E 10.1″ · Celeron J6412 UTC-510KP-ATB0E 10.1″ · Atom N97 UTC-510KP-ATB1E 10.1″ · Core i3-N305 UTC-515D-PE 15.6″ · Celeron J1900 UTC-515D-RE 15.6″ · Celeron J1900

See the whole UTC-500 series and compare configurations →

Equivalent products from other series

Different series — some even a different brand — but the same machine type with closely matching key specs. We cross-check compatibility against the manufacturer’s documentation before quoting.

CV-W115C-R11/P1301-X7425E-R10 Cincoze CV-100/P1301

15.6″ · Atom x7425E · 2× COM · 2× LAN · -40 ~ 70 °C
