Maytinhcongnghiep
USC-M10P-GTC00

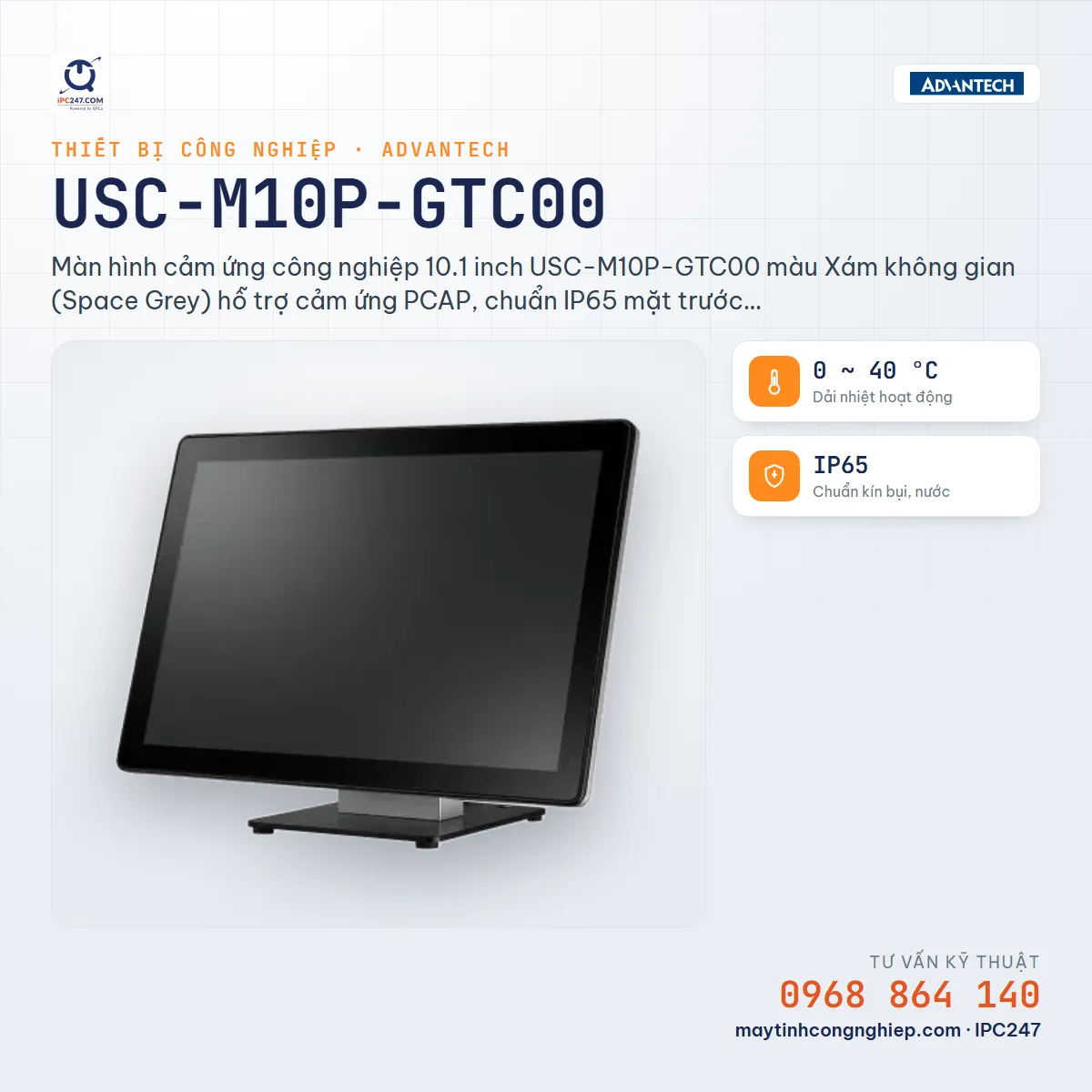

10.1-inch industrial touch display USC-M10P-GTC00 in Space Grey with PCAP touch, IP65 front protection, VESA 75x75mm mounting, DC 12V power and 0 ~ 40°C operating temperature range.
- Front-panel IP65 water and dust protection
- DC 12V power, operating temperature range 0 ~ 40°C
- Compatible with VESA mounting standard (75 x 75 mm) and wall mounting
- 10.1-inch PCAP touch TFT LCD, 1280 x 800 resolution, 350 cd/m2 brightness
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model USC-M10P-GTC00 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | 12 |
| Mounting | VESA (75 x 75 mm), Wall mounting |
| Dimensions (mm) | 244.4 x 163 x 27 |
| IP protection rating | IP65 (front panel) |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| Display outputs | 1× HDMI · 1× USB-C |
|---|
Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280 x 800 |
| Brightness (nit) | 350 |
| Touch | PCAP |
| Frame type | Flat bezel-less |
| Front IP rating | IP65 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (13 items)
| 1700035496-01 | M cable USB-C 24P(M)/USB-C 24P(M) 50cm lock 3.2 |
|---|---|
| 1700033357-01 | M cable USB-C 24P(M)/USB-C 24P(M) 200cm USB3.1 |
| 1700033729-11 | M cable USB-A 4P(M)/USB-C 24P 65cm |
| 1700028438-01 | M cable HDMI 19P/HDMI 19P 180cm |
| 96PSA-A36W12V5-3 | ADP A/D 100-240V 36W 12V C6 DC JACK 62368 |
| 96CB-POWER-B-1.8MB | RW0.75, CCC, black/3L, 180 cm |
| 1700001524 | Power cable 3P, UL, 10A, 125V, 180 cm (US, TW) |
| 170203183C | Power cable 3P, 10A, 250V, 183 cm (EU) |
| 1700018553 | Power cable 3P, SAA, 2.5A, 250V, 183 cm (Australia) |
| 1700025113-11 | Power cable, ISI, 3P, 2.5A, 250V, 180 cm (India) |
| 1700018409 | Power cable, KCC, 2P, 2.5A, 250V, 183 cm (Korea, Russia) |
| 170203180A | Power cable, BSI, 3P, 2.5A, 250V, 183 cm (UK) |
| 1700008921 | Power cable, PSE, 3P, 7A, 125V, 180 cm (Japan) |
