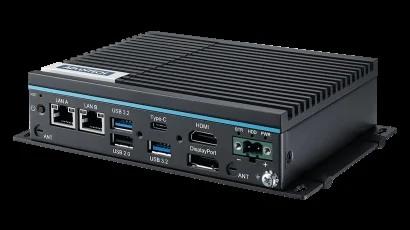

UNO-2372V3-I2N1A
Compact modular industrial embedded computer with fanless passive-cooling design, durable operation in harsh environments with a wide -20 to 60°C temperature range and DC 10-36V power input. Equipped with an Intel Atom x7433RE processor, DDR5 memory and flexible iDoor expansion.
- Compact modular design, fanless cooling, high stability
- Wide -20 ~ 60°C operating temperature range (with 0.7m/s airflow)
- Wide power input range from 10 to 36 VDC
- 50G shock resistance and 2Grms vibration resistance
reference price · updated 2026-08-09
21,300,000 ₫ – 34,900,000 ₫
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model UNO-2372V3-I2N1A within 4 working hours.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (with 0.7m/s airflow) |
|---|---|
| Power input | 10 ~ 36 VDC |
| Power connector | 1 x 2-pin terminal block |
| Mounting | Stand, Wall, VESA, DIN rail |
| Dimensions (mm) | 150 x 105 x 38 (Single-stack) / 150 x 105 x 75 (Double-stack) |
| Weight (kg) | 0.8 |
| Vibration resistance | 2Grms — IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis (SSD) |
| IP protection rating | IP40 |
| Certifications | CE, FCC, UL, CCC, BSMI |
Computing
| CPU | Intel Atom x7433RE |
|---|---|
| RAM | DDR5 · 1 slots · up to 16GB |
| Storage | M.2 M key (2242, NVMe, PCIe Gen3 x2) · M.2 B key (3042/3052, PCIe Gen3 x1, USB 3.2/2.0, SATA 3.0) · 2.5" SATA SSD |
| GPU | Intel UHD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 2× 2500 Mbps Intel i226v |
| USB | 2× USB USB 3.2 Gen 2 Type-A · 1× USB USB 2.0 Type-A · 1× USB USB 3.2 Gen 2 Type-C (DP1.4a Alt mode) |
| DIO | 8 in / 0 out |
| Display outputs | 1× HDMI · 1× DisplayPort 1.4a · 1× USB Type-C (DP1.4a Alt mode) |
| Expansion | 1× M.2 B key (3042, 3052, PCIe Gen3 x1, USB 3.2/2.0, SATA 3.0) · 1× M.2 E key (2230, PCIe Gen3 x1, USB 2.0) · 1× Nano SIM card slot (4FF) · 1× iDoor |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (25 items)
| 96PSA-A60W24T2-3 | A/D 100 ~ 240V 60W 24V C14 cord end terminal power adapter |
|---|---|
| 1702002600 | Power cable, US plug, 1.8 m |
| 1702002605 | Power cable, EU plug, 1.8 m |
| 1702031801-11 | Power cable, UK plug, 1.8 m |
| 1700000596-11 | Power cable, China plug, 1.8 m |
| 1702031836 | Power cable, Australia plug, 1.8m |
| 1700027329-31 | M Cable SATA 22P/SATA 7P+1x4P-2.5 120mm for 2.5" SSD (when install 2.5" SSD in the first stack) |
| 1700023485-01 | SATA Cable 15P/1x4P-2.5 15cm (for install 2.5" SSD in the second stack) |
| 1700013095-01 | SATA Cable 22P/SATA 7P+1x4P-2.5 12cm (for install 2.5" SSD in the second stack) |
| UNO-2000G-DMKAE | UNO-2000 DIN-rail kit |
| UNO-2000G-VMKAE | UNO-2000 VESA mount kit |
| UNO-2000-LKAE | Cable locking kit, 10 units per pack |
| 1990029436N030 | CPU Thermal Pad |
| 1990042457N000 | RAM Thermal Pad |
| 1990042456N000 | M.2 M key Thermal Pad |
| 98R12372002 | M.2 B Key Thermal kit |
| 98R12372003 | M.2 E Key thermal kit |
| UNO-2372V3-EKA | UNO-2372 V3 2nd stack expansion module for 1x iDoor |
| PCM-34D2R2-AE | 2-Port Isolated RS-232, M.2 B key (2242, USB), DB9 |
| PCM-34D2R4-AE | 2-Port Isolated RS-422/485, M.2 B key (2242, USB), DB9 |
| PCM-34D4R2-AE | 4-Port Non-Isolated RS-232, M.2 B key (2242, USB), DB37 cable |
| PCM-34D4R4-AE | 4-Port Non-Isolated RS-422/485, M.2 B key (2242,USB), DB37 cable |
| PCM-34R1TP-AE | 1-Port 2.5Gigabit Ethernet, Intel i225 B+M key (3042, PCIex1) |
| PCM-34R2GL-AE | 2-Port Gigabit Ethernet, Intel I350, B+M Key (2242, PCIex1) |
| PCM-37D24DI-AE | 24ch Isolation Digital I/O, 16DI/ 8DO, DB37 x1, B+M Key (3042, PCIex1) |
