- 0~60°COperating temp
- IP65Ingress rating
- FanlessCooling
- 12–24 VDCPower input
- 2COM ports
- 4LAN ports

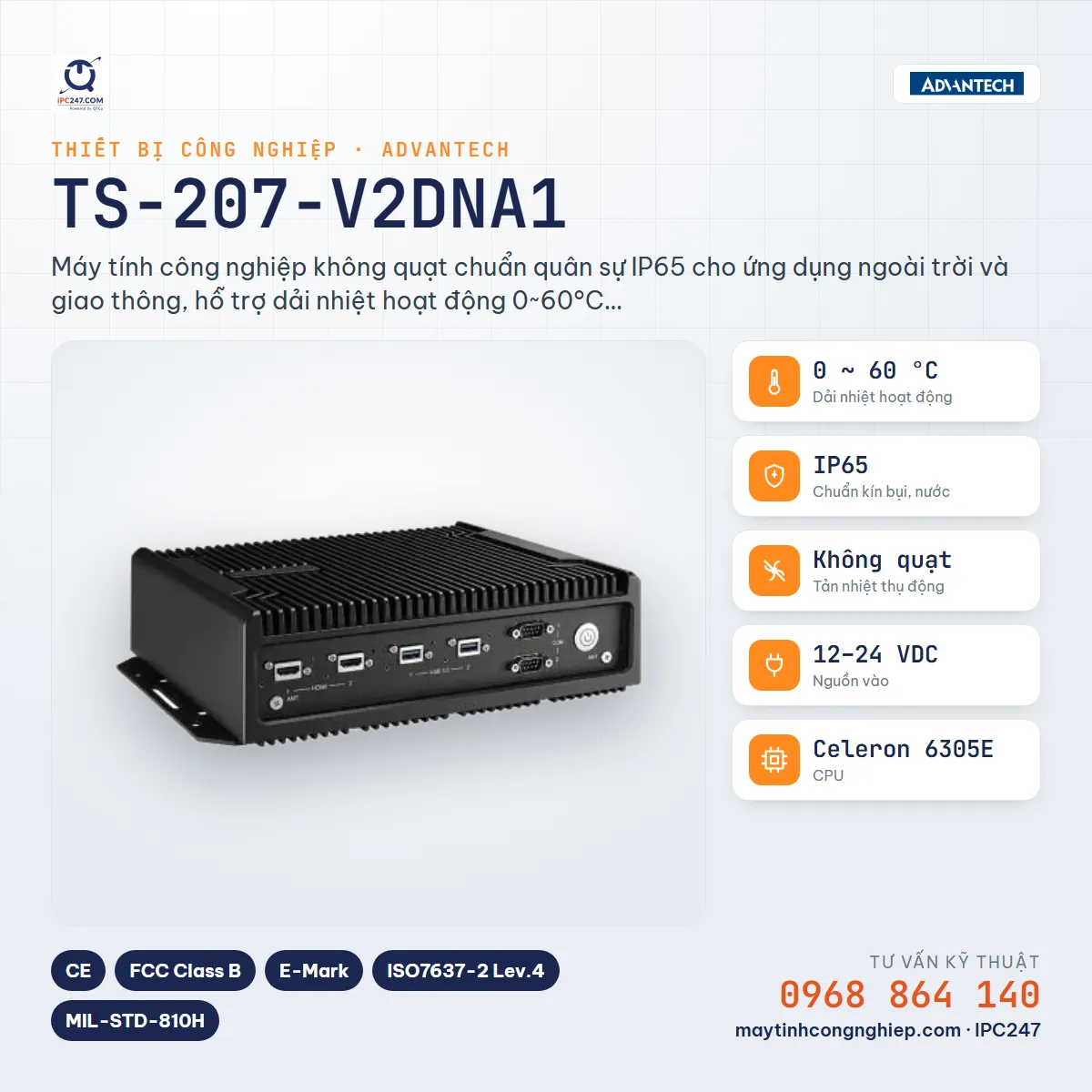

TS-207-V2DNA1
IP65-rated, military-grade fanless industrial computer for outdoor and transportation applications, supporting a 0~60°C operating temperature range, dedicated +12/24VDC vehicle power with integrated Vehicle Power Ignition, water-resistant M12 Ethernet connectivity, and an Intel Celeron 6305E processor.
- IP65-rated protective housing meeting MIL-STD-810H and IEC 60721-3-5 shock/vibration standards
- Fanless cooling design operating across a temperature range from 0 to 60°C
- Intelligent Vehicle Power Ignition Control for smart in-vehicle power management
- E-Mark (E13) and ISO7637-2 Lev.4 certified for In-Vehicle applications
reference price (estimated by segment) · updated 2026-08-09
35,500,000 ₫ – 65,200,000 ₫
This is a reference range for the barebone unit, excluding RAM and storage. IPC247 engineers advise on a full configuration for your use case.
Or leave your phone number — an engineer will quote model TS-207-V2DNA1 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 60 °C (Standard) |
|---|---|
| Power input | 12/24VDC |
| Mounting | Desk, Wall-mounting |
| Dimensions (mm) | 280 x 81 x 230 mm (without wall-mounting) / 316 x 81 x 230 mm (with wall-mounting) |
| Vibration resistance | IEC 60721-3-5 (Vehicle-5M3), MIL-STD-810H method 514.8 (Category 4) — MIL-STD-810H |
| IP protection rating | IP65 |
| Certifications | CE, FCC Class B, E-Mark (E13), ISO7637-2 Lev.4, MIL-STD-810H, IEC 60721-3-5 |
Computing
| CPU | Intel Celeron 6305E |
|---|---|
| RAM | DDR4 · 1 slots · up to 32GB |
| Storage | SATA-III · mSATA |
| GPU | Intel Iris Xe Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 4× 10/100/1000 Mbps |
| USB | 2× USB USB 3.0/2.0 · 2× USB USB 2.0 (M12) |
| Display outputs | 2× HDMI 2.0b |
| Expansion | 1× mPCIe · 1× mPCIe/mSATA · 1× M.2 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (13 items)
| 96PSA-A120W24T2-3 | Power adapter A/D 100-240V 120W 24V C14 CORD |
|---|---|
| 96PSA-A150W24T2-4 | Power adapter A/D 100-240V 150W 24V C14 CORD |
| 1700033565-01 | Adapter cable for power adapter (M12 to terminal block) |
| 1700029010-01 | Adapter cable for USB 2.0 (M12 to USB-A) |
| 1700028852-01 | Adapter cable for LAN (M12 to RJ45) |
| 1652001524 | Terminal block 6p 5.00mm for power adapter |
| 1702002600 | Power Cable 3-pin 180cm, USA type |
| 1702002605-02 | Power Cable 3-pin 183cm, Europe type |
| 1700018704 | Power Cable 3-pin 183cm, UK type |
| 96PD-MUSBRAHD3241 | Amphenol waterproof boot style hood for USB/HDMI connector |
| 968AG00019 | Amphenol waterproof cap for DB9/15 connector |
| 1990023703S000 | Amphenol waterproof cap for M12 male connector |
| 1960106834N000, 1700029224-01, 1931000590, 1930000686-11, 19350304A0 | SATA cable, SATA power and 2.5" HDD mounting kit |
