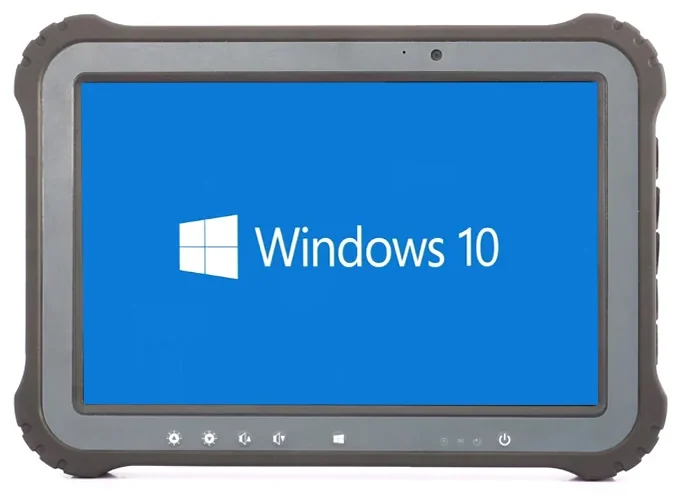

TPC-1062A-1
Industrial tablet 10.1 inch, fanless design reducing dust-related failures, front panel rated IP65 against water/dust, MIL-STD-810G shock/vibration rated, Li-ion backup battery lasting 10-12 hours, suited to industrial field operation.
- Fanless design, low power consumption, reduces fan dust-buildup failures
- Front panel rated IP65 against water/dust ingress
- MIL-STD-810G / MIL-STD-461F shock and vibration rated
- High-capacity Li-ion battery, 10-12 hours backup on power loss
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -10 ~ 50 °C (extend temperature optional) |
|---|---|
| Power input | 19V DC |
| Power connector | 2 Pin Aviation Connector |
| Vibration resistance | 5-19Hz/1.0mm Amplitude; 19-200Hz/1.0g Acceleration |
| IP protection rating | IP65 (front panel) |
| Certifications | MIL-STD-810G, MIL-STD-461F |
Computing
| CPU | Intel J1900 |
|---|---|
| RAM | DDR3L · up to 4GB |
| Storage | mSATA SSD |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS232 |
|---|---|
| LAN | 1× 10/100/1000Mbps Realtek 8111E |
| USB | 1× USB USB3.0 · 1× USB USB2.0 |
| Display outputs | 1× HDMI |
| Expansion | Optional module |
Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280x800 |
| Brightness (nit) | 400 |
| Touch | Projected Capacitive Touch, 2-10 touch points |
| Front IP rating | IP65 |
