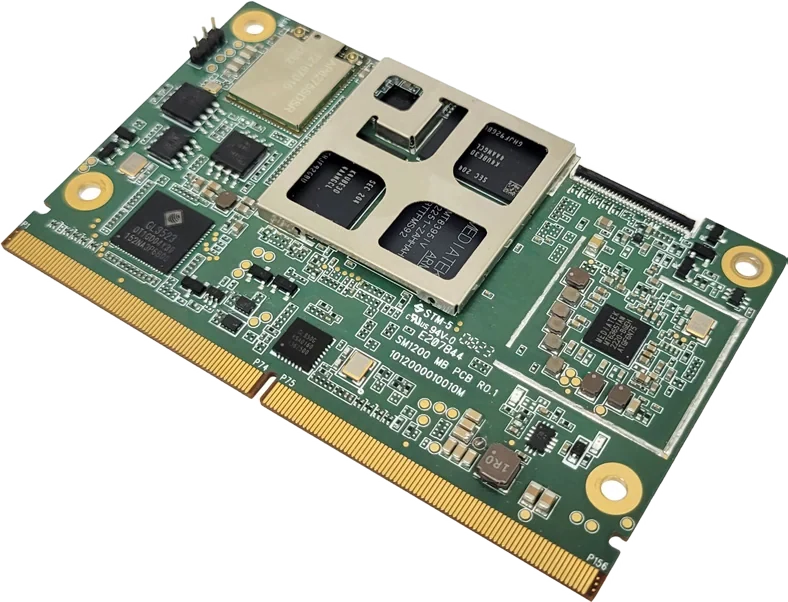

MaytinhcongnghiepSM1200
SOM module built to the SMARC 2.1.1 standard using a MediaTek Genio 1200 octa-core chip, operates reliably in a -40~85°C temperature range, integrated AI engine up to 4.8 TOPS, suited for industrial embedded designs needing dual 4K graphics and edge AI.
- Wide operating temperature range -40 ~ 85°C
- MediaTek APU AI engine up to 4.8 TOPS
- Supports Dual 4K@60fps, HDMI/DP/eDP
- Compact SMARC 2.1.1 form factor, 82 x 50mm
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model SM1200 within 4 working hours.
Industrial factors
| Operating temperature range | -40 ~ 85 °C |
|---|---|
| Dimensions (mm) | 82 x 50 |
Computing
| CPU | MediaTek Genio 1200 |
|---|---|
| Socket | SMARC 2.1.1 |
| RAM | LPDDR4X · onboard (soldered) slots · up to 8GB |
| GPU | Arm Mali-G57 (5-core) |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 1× UART Debug · 1× UART TX/RX · 1× UART TX/RX/CTS/RTS |
|---|---|
| LAN | 2× 10/100/1000 Mbps |
| USB | 2× USB USB 3.1 Host · 2× USB USB 2.0 Host · 1× USB USB 2.0 Host/Device · 1× USB USB 2.0 (DL Port) |
| Display outputs | 2× MIPI DSI 4-Lane · 1× DisplayPort · 3× MIPI CSI (camera) |
| Expansion | 1× PCIe Gen3 x2 · 1× PCIe Gen2 · 1× SDIO · 2× CAN BUS · M.2 B/E/M-key · 14× GPIO · 1× SPI · 3× I2C |
