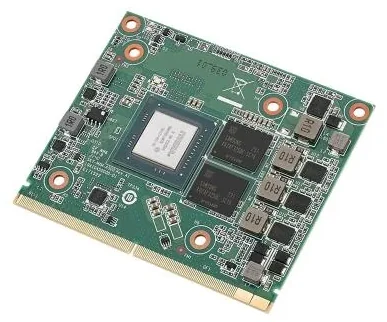

SKY-MXM-A500-4SHA
Industrial GPU module in MXM 3.1 Type A form factor (82 x 70 mm), operating stably across 0~55°C with a maximum power consumption of just 35W. Supports 7~20V power input, headless MS-Hybrid mode design, equipped with an NVIDIA Quadro A500 GPU (2048 CUDA cores, 4GB GDDR6), suited to long-term embedded intelligent transportation systems and industrial AI applications.
- Compact MXM 3.1 Type A module form factor (82 x 70 mm) suited to industrial embedded systems
- Low maximum power consumption of just 35W
- 0~55°C operating temperature range depending on CPU and cooling solution
- Long-term supply lifecycle commitment of up to 5 years
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model SKY-MXM-A500-4SHA within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 55 °C (dependent on CPU and cooler solution) |
|---|---|
| Power input | 7-20V |
| Dimensions (mm) | 82 x 70 |
Computing
| RAM | GDDR6 · up to 4GB |
|---|---|
| GPU | NVIDIA Quadro A500 |
| CUDA cores | 2048 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| Expansion | 1× MXM 3.1 Type A |
|---|
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| 98R1X200010 | Fan Cooler, Aluminum, 69.82(L) x 82(W) x 25.2(H) mm |
|---|---|
| 98R1X050000 | Heat Spreader, Aluminum, 62.35(L) x 82(W) x 4.9(H) mm |
| SKY-MXM-CAR | MXM-Carrier PCIe to MXM Gen3 x 16, 235.95(L) x 162.2(H) mm, 4 x DisplayPort 1.4a |
| SKY-MXM-CARG4 | MXM-Carrier PCIe to MXM PCIe Gen4 x 16, 235.95(L) x 162.2(H) mm, 4 x DisplayPort 1.4a |
