SKY-MXM-5000A-6SDA

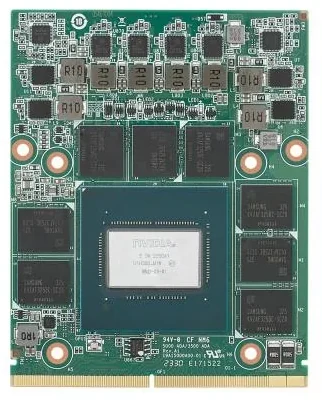

Industrial GPU module in MXM 3.1 Type B+ form factor supporting a wide operating temperature range, ECC GDDR6 memory for data error protection, and a long-term 5-year supply lifecycle. Equipped with an NVIDIA Quadro Embedded 5000 Ada core with 9728 CUDA cores and 4x DisplayPort 1.4a outputs in Discrete Mode.
- Long-term supply lifecycle of up to 5 years
- Supports ECC (Memory Error Correction Code) memory
- MXM 3.1 TYPE B+ form factor (82 x 105 mm) for industrial embedded systems
- NVIDIA Ada Lovelace AD103-950 architecture with 9728 CUDA cores, 76 RT cores, and 304 Tensor cores
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model SKY-MXM-5000A-6SDA within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 55 °C (Depends on CPU and card cooling solutions) |
|---|---|
| Power input | 7~20V |
| Power connector | MXM Gold Finger |
| Dimensions (mm) | 82 x 105 |
Computing
| GPU | NVIDIA Quadro Embedded 5000 Ada |
|---|---|
| CUDA cores | 9728 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| Display outputs | 4× DisplayPort 1.4a |
|---|---|
| Expansion | 1× MXM 3.1 Type B+ |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (3 items)
| 98R1X450010 | Fan Cooler, Aluminum, 110(L) x 102(W) x 36.6(H) mm |
|---|---|
| 98R1X450000 | Heat Spreader, Aluminum, 98(L) x 82(W) x 4.9(H) mm |
| SKY-MXM-CARG4 | MXM-Carrier PCIe to MXM PCIe Gen4 x16, 235.95(L) x 162.2(H) mm, 4 x DisplayPort 1.4a |
