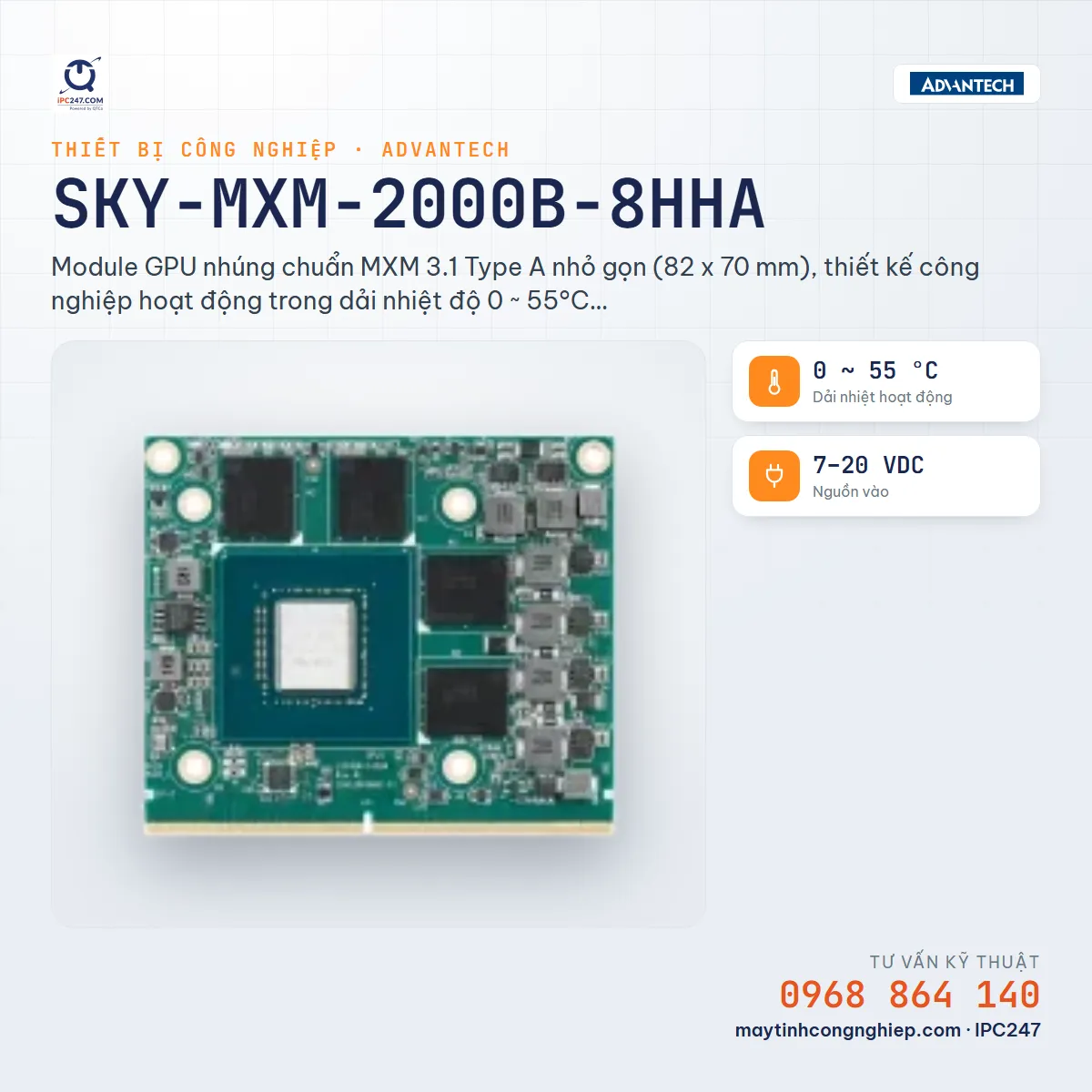

SKY-MXM-2000B-8HHA
Compact embedded GPU module in MXM 3.1 Type A form factor (82 x 70 mm), industrial design operating across 0~55°C, maximum power consumption of 60W with a 7V-20V power range. Equipped with an NVIDIA RTX PRO Embedded 2000B GPU on the Blackwell architecture, 3328 CUDA cores, 8GB GDDR7 ECC memory, and PCIe Gen5 x8 support, with a Headless design (no direct display output, running in MS-Hybrid Mode).
- NVIDIA Blackwell architecture in MXM 3.1 Type A form factor (82 x 70 mm)
- 3328 CUDA cores, 104 RT cores, and 26 5th-gen Tensor cores (FP4 precision)
- 8GB GDDR7 memory, 384 GB/s bandwidth, with ECC support
- Headless design (MS-Hybrid Mode)
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 55 °C (dependent on CPU and cooler solution) |
|---|---|
| Power input | 7V-20V |
| Dimensions (mm) | 82 x 70 x 4.8 |
Computing
| GPU | NVIDIA RTX PRO Embedded 2000B (GB206-950-A1) |
|---|---|
| CUDA cores | 3328 |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| Expansion | 1× MXM 3.1 |
|---|
