SB-142-2J64

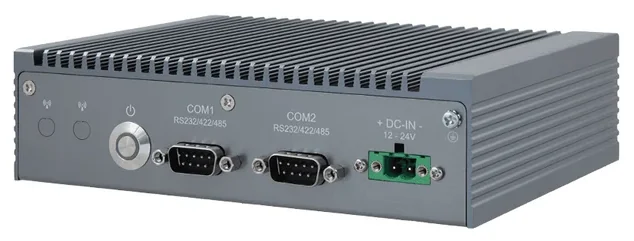

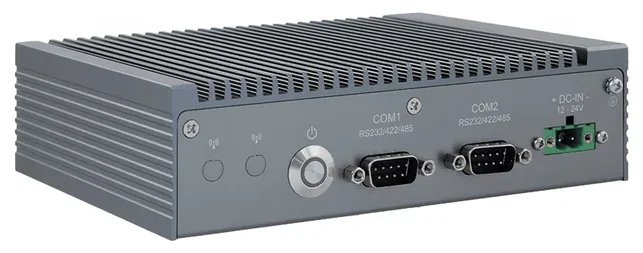

Fanless barebone industrial computer, operating temperature range -20 to 60°C, wide 12-24V DC power input with overvoltage and reverse-polarity protection, one-piece aluminum chassis for vibration and shock resistance, wall/VESA/DIN-rail mount — powered by an Intel Celeron J6412 Elkhart Lake CPU, DDR4 3200MHz RAM up to 32GB, 4 LAN ports (1 GbE + 3 x 2.5GbE), 3G/4G SIM support.
- Fanless, operating temperature range -20 to 60°C
- Wide 12-24V DC input, overvoltage and reverse-polarity protection
- One-piece aluminum chassis, resists 2Grms vibration and 10G shock, optional wall/VESA/DIN-rail mount
- 4 LAN ports comprising 1 GbE and 3 x 2.5GbE
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 60 °C (ambient w/ air flow (WT RAM & SSD)) |
|---|---|
| Power input | 12-24V |
| Power connector | 2-pin phoenix connector |
| Mounting | Wall-mount, VESA-mount (optional), DIN-Rail (optional, SPA VESA BRACKET + SPA BOX PC DIN RAIL KIT) |
| Dimensions (mm) | 165 x 125 x 45 |
| Weight (kg) | 0.9 |
| Vibration resistance | 5~500Hz, 2Grms — operation |
| Certifications | CE, FCC |
Computing
| CPU | Intel® Celeron® J6412 CPU Elkhart Lake (2.0 GHz/2.6GHz) |
|---|---|
| Chipset | Integrated in CPU |
| RAM | DDR4 3200MHz SO-DIMM · 1 slots · up to 32GB |
| Storage | M.2 M Key 2242 (SATA signal) |
| GPU | Intel® UHD Graphics for 10th Gen Intel® Processors |
| PCI/PCIe expansion slots | 0 |

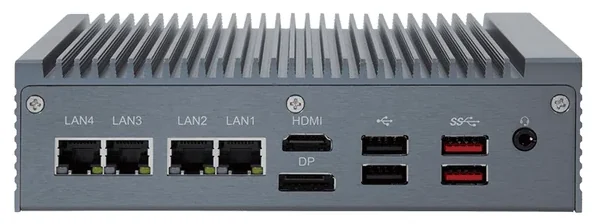

Connectivity & I/O
| COM | 2× RS232/422/485 (default RS232), auto flow control |
|---|---|
| LAN | 1× GbE Intel® I210-AT · 3× 2.5GbE Intel® I226-V |
| USB | 2× USB USB 3.1 · 2× USB USB 2.0 |
| Display outputs | 1× HDMI · 1× DP |
| Expansion | 1× MiniPCIe · 1× M.2 E Key 2230 · 1× SIM Card socket |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (7 items)
| SPA BOX PC DIN RAIL KIT | DIN Rail Bracket w/Screw, 35mm W25, 25X47.8mm |
|---|---|
| SPA VESA BRACKET | SECC, 165 x 115 x 10.5mm, FOR SB-142-2J64, SB-244-1J64 |
| PAC-60W-FSP-SPA-US R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ US POWER CORD |
| PAC-60W-FSP-SPA-EU R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ EU POWER CORD |
| PAC-60W-FSP-SPA-UK R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ UK POWER CORD |
| PAC-60W-FSP-SPA-IN R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ IN POWER CORD |
| PAC-60W-FSP-SPA-JP R1.0 | AC/DC Adapter Kit (w/ UKCA), 12V, 60W, 2 WIRE w/ JP POWER CORD |
