PoE-DO8

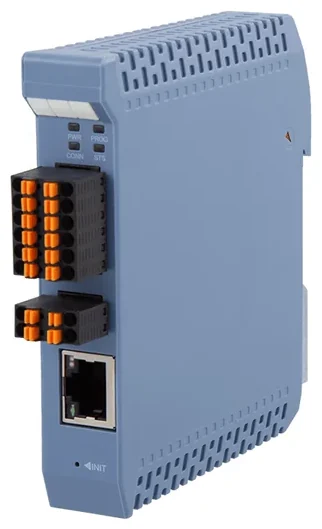

Isolated 8-channel digital output control module, PoE PD-powered, suited for industrial installation with -25~70°C operating temperature. NPN output 500mA/channel, Modbus TCP over Ethernet, supports control via web server.
- 8 NPN digital output channels, 500mA/channel
- 2500 Vrms isolation, powered via PoE PD
- Operating temperature -25 ~ 70°C suited for industrial environments
- Modbus TCP over 10/100 Ethernet
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model PoE-DO8 within 4 working hours.
Industrial factors
| Operating temperature range | -25 ~ 70 °C |
|---|---|
| Power input | 10 ~ 60 VDC |
| Power connector | Ethernet (PoE PD) |
| Dimensions (mm) | 20 x 100 x 95 mm |
| Weight (kg) | 0.065 |
Computing
| PCI/PCIe expansion slots | 0 |
|---|
Connectivity & I/O
| LAN | 1× 10/100 Based-T Ethernet PoE |
|---|---|
| DIO | 0 in / 8 out (optically isolated) |
