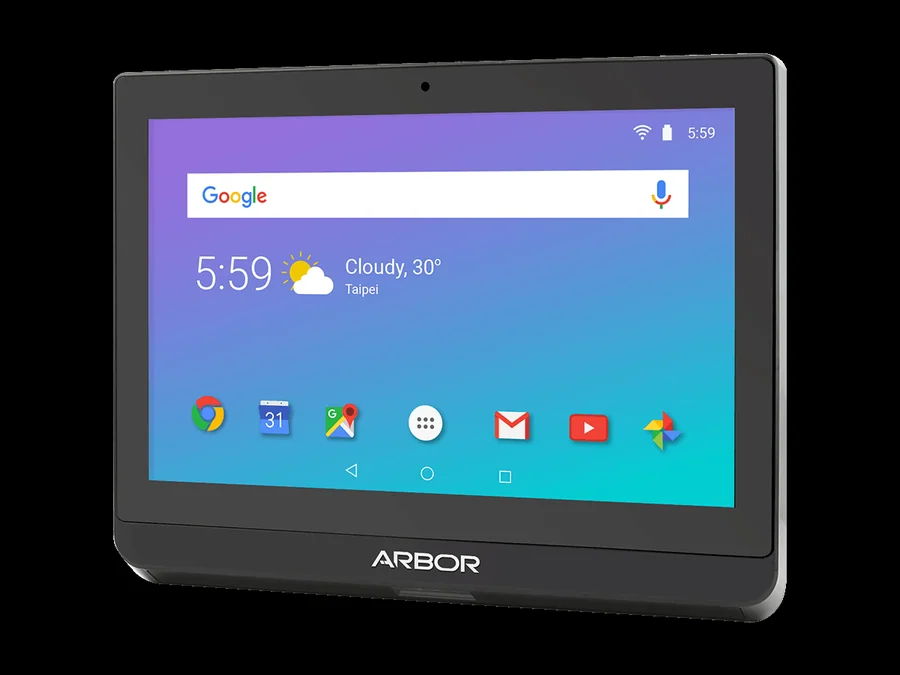

PC1017
10.1" Android-based retail price checker, operating temperature range 0~40°C, IP54 protection rating, supports PoE (PD) power or a 12V/2.5A DC adapter, VESA-75 mounting. ARM Quad-Core Cortex-A35 1.5GHz processor, 2GB DDR4 RAM (up to 4GB), 10-point capacitive touch screen.
- IP54 protection rating, operating temperature range 0~40°C
- Flexible power: PoE (PD) or 12V/2.5A DC adapter, VESA-75 mounting
- 10.1" 10-point capacitive touch screen, 350 cd/m² brightness
- ARM Quad-Core Cortex-A35 1.5GHz CPU, 2GB DDR4 RAM (up to 4GB), Android 8.1
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model PC1017 within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | DC 12V/2.5A or PoE input |
| Power connector | PoE PD (RJ-45) or DC jack via adapter |
| Mounting | VESA-75 |
| Dimensions (mm) | 248.34 x 194.43 x 35.2 |
| Weight (kg) | 0.662 |
| Vibration resistance | 1 Grms/5~500Hz/random operation |
| IP protection rating | IP54 (compliance design) |
| Certifications | CE, FCC Part 15 Subpart C |
Computing
| CPU | ARM Quad-Core Cortex-A35 1.5GHz (SoC) |
|---|---|
| RAM | DDR4 soldered onboard · up to 4GB |
| Storage | eMMC 16GB Flash soldered onboard |
| GPU | Mali-G31 GPU |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× 10/100M (RJ-45) PoE |
|---|---|
| USB | 2× USB USB 2.0 Type-A |
Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280 x 800 (WXGA) |
| Brightness (nit) | 350 |
| Touch | 10-point Projected Capacitive Multi-Touch |
| Frame type | TFT, MIPI type |
| Front IP rating | IP54 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| Power Adapter | Universal power adapter, 12V/5A |
|---|---|
| RFID & NFC-1017 | RFID & NFC module kit |
| Barcode Scanner | 1D/2D barcode scanner |
| Camera | 2MP front-facing camera |
