P1001-R10

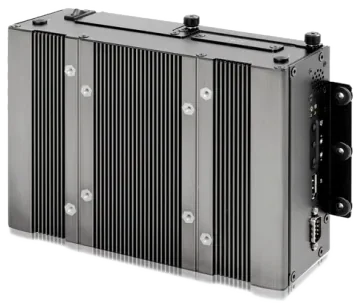

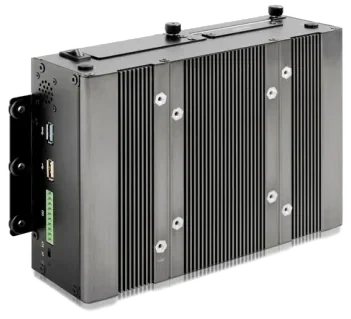

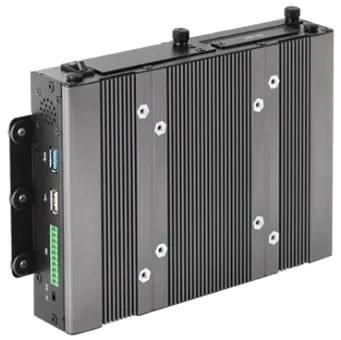

Cincoze P1001-R10 fanless industrial computer module, slim design, supports CDS technology, wide operating temperature range -20°C to 70°C, 9~48 VDC power range, equipped with an Intel Atom E3845 Quad Core processor.
- Slim fanless design with an extruded aluminum housing combined with heavy-duty metal, strong impact and vibration resistance
- Wide operating temperature range from -20°C to 70°C, wide 9~48 VDC power input range
- Supports diverse mounting methods: Wall Mounting, VESA Mounting, CDS Mounting
- Cincoze's proprietary CDS (Convertible Display System) technology enables flexible connection, configuration and upgrade to a Panel PC
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (Ambient with Air Flow, with Industrial Grade Peripherals) |
|---|---|
| Power input | 9~48 VDC |
| Power connector | 3-pin Terminal Block Connector |
| Mounting | Wall Mounting, VESA Mounting, CDS Mounting |
| Dimensions (mm) | 204.5 x 149 x 37.5 |
| Weight (kg) | 1.34 |
| Vibration resistance | 1 Grms, 5-500 Hz, 3 Axes — IEC60068-2-64 |
| Certifications | CE, UKCA, FCC, ICES-003 Class A, CISPR 32 Class A, EN/BS EN 55032 Class A, EN/BS EN IEC 61000-3-2 Class A, EN/BS EN 61000-3-3, FCC 47 CFR Part 15B Class A, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-6, EN/IEC 61000-4-8, EN/IEC 61000-4-11 |
Computing
| CPU | Intel Atom E3845 |
|---|---|
| Socket | Onboard |
| RAM | DDR3L 1066/1333 MHz · 1 slots · up to 8GB |
| Storage | 2.5" SATA HDD/SSD bay · CFast Socket · SIM Card Socket |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 |
|---|---|
| LAN | 2× GbE Intel I210 |
| USB | 1× USB USB 3.2 Gen1 · 3× USB USB 2.0 |
| DIO | 4 in / 4 out (optically isolated) |

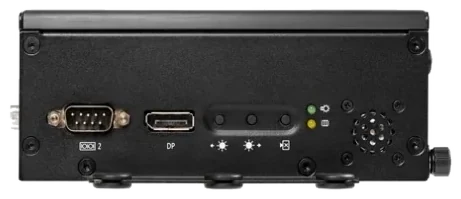

| Display outputs | 1× VGA · 1× DisplayPort |
| Expansion | 1× Mini-PCIe |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (10 items)
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x DB9 Cable (for P1001E only) |
|---|---|
| MEC-LAN-M102 | Mini-PCIe Module with 2x LAN Ports (for P1001E only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.0 Ports, 2x 30cm cable (for P1001E only) |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout (for P1001E only) |
| UB0311 | Universal Bracket with 2x RJ45 Cutout (for P1001E only) |
| UB0314 | Universal Bracket with 2x USB Cutout (for P1001E only) |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
