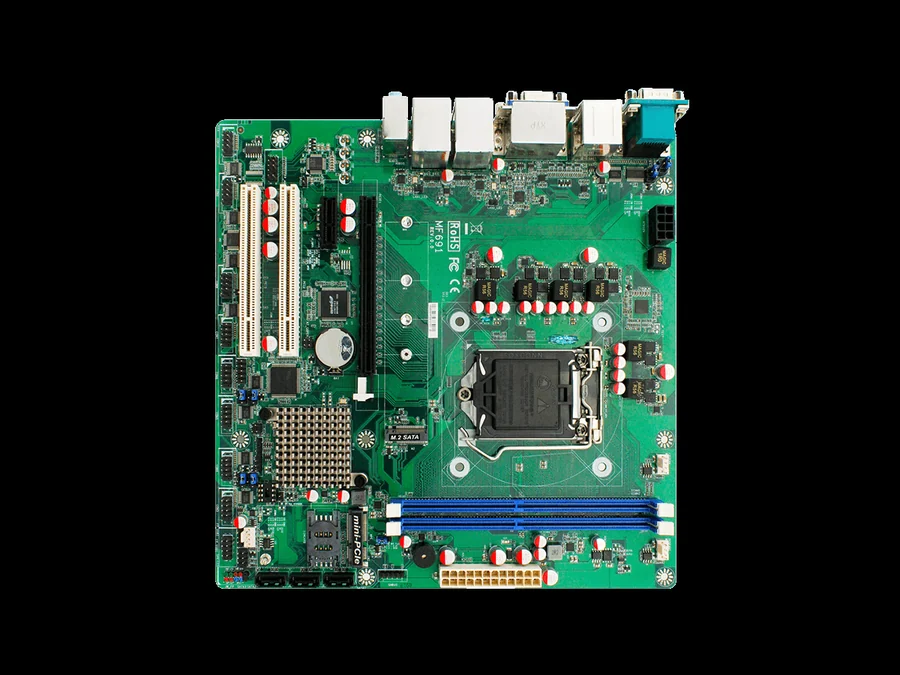

MB-i89Q9
Industrial Micro-ATX standard motherboard, operating temperature range 0~60°C, humidity 10~90% non-condensing, powered via 24-pin+8-pin ATX connector. Supports 7th/6th Gen Intel Core CPUs on LGA1151 socket, DDR4 RAM up to 32GB, two Gigabit Ethernet ports, up to 10x serial ports, expansion slots including PCIe x16, PCIe x1, and 2x PCI, VGA, DVI-D, and HDMI output.
- Supports 7th/6th Gen Intel Core CPUs on LGA1151 socket
- Integrated 2x Gigabit Ethernet ports
- 1x PCIe x16 slot, 1x PCIe x1 slot, 2x PCI slots
- 10x serial ports, 1x Mini-card slot, 1x M.2 slot for SSD
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 60 °C |
|---|---|
| Power connector | 24-pin + 8-pin ATX power connector |
| Dimensions (mm) | 244 x 244 (9.6" x 9.6") |
Computing
| CPU | Intel Core i7/i5/i3 / Pentium (LGA1151) |
|---|---|
| Chipset | Intel PCH H110 |
| Socket | LGA1151 |
| RAM | DDR4 Long-DIMM non-ECC 2133MHz · 2 slots · up to 32GB |
| Storage | 3× SATA 600MB/s · NGFF M.2 M-key cho SSD |
| GPU | Intel HD Graphics (integrated) |
| PCI/PCIe expansion slots | 2 |
Connectivity & I/O
| COM | 9× RS-232 · 1× RS-232/422/485 |
|---|---|
| LAN | 2× Gigabit Realtek RTL8111 |
| USB | 4× USB USB 3.0/2.0 · 5× USB USB 2.0 |
| Display outputs | 1× VGA · 1× DVI-D · 1× HDMI |
| Expansion | 1× PCIe x16 Gen 2.0 · 1× PCIe x1 Gen 2.0 · 2× PCI · 1× Mini-card (Full Size) · 1× SIM card holder |
