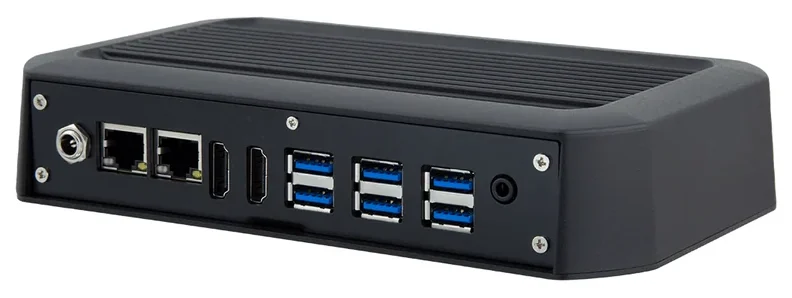

IEC-3366-1135G7-2U1S
Fanless digital signage player, 0~40°C operating temperature range, 10-95%@60°C humidity, compact DC 12V power (950g). OEM variant adds an RS-232 port (trading down to 2 USB ports). Intel Core i5-1135G7 processor (Tiger Lake-UP3), DDR4 dual-channel RAM up to 64GB.

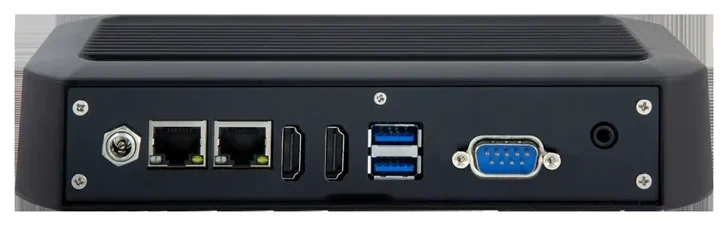

- OEM variant: adds 1 RS-232 DB-9 port, at the cost of only 2 USB ports (down from 6)
- Dual HDMI output up to 4096x2160@30Hz
- 0~40°C operating temperature ambient w/ air flow, 10G/20G shock resistance
- Fanless design, compact 198.5 x 124 x 38.7mm size, 950g weight
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 40 °C (ambient w/ air flow) |
|---|---|
| Power input | 12V |
| Power connector | 12VDC, 5A, 60W, 2.5φ JACK, AC/DC Adaptor with power cord |

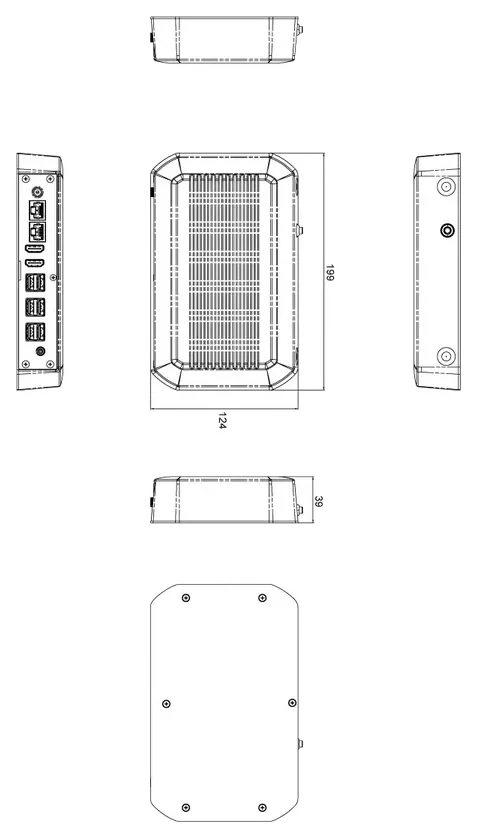

| Dimensions (mm) | 198.5 x 124 x 38.7 |
| Weight (kg) | 0.95 |
| Vibration resistance | 1.0Grms, random, 5~500Hz, 1 Oct./min, 1hr/axis, operation — IEC 60068-2-64 |
| Certifications | CE, FCC |
Computing
| CPU | Intel Core i5-1135G7 |
|---|---|
| Socket | Soldered onboard |
| RAM | DDR4 SO-DIMM 260-pin, 3200MHz · 2 slots · up to 64GB |
| GPU | Intel Iris Xe / UHD Graphics (depending on CPU SKU) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 1× RS-232, DB-9 male (by OEM request, replaces 4 USB 3.0 ports) |
|---|---|
| LAN | 2× GbE Intel GbE controller |
| USB | 2× USB USB 3.0 |
| Display outputs | 2× HDMI |
| Expansion | 1× M.2 E-Key · 1× M.2 B-Key |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (6 items)
| 4GB SO-DIMM | DDR4-2666 4GB SO-DIMM Memory module |
|---|---|
| 8GB SO-DIMM | DDR4-2666 8GB SO-DIMM Memory module |
| 16GB SO-DIMM | DDR4-2666 16GB SO-DIMM Memory module |
| 256GB SSD | 256GB M.2 2280 SSD PCIe Gen3x4 |
| 512GB SSD | 512GB M.2 2280 SSD PCIe Gen3x4 |
| 1TB SSD | 1TB M.2 2280 SSD PCIe Gen3x4 |
