G1017M

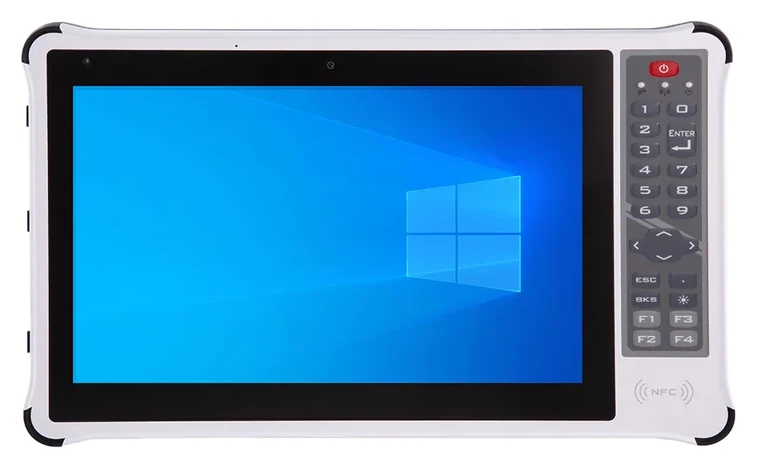

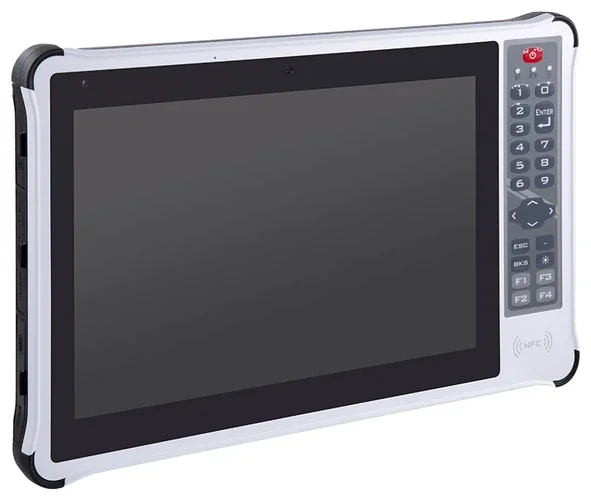

10.1-inch industrial tablet rated IP-54 for dust/water resistance and 1m drop resistance, with a physical numeric keypad design for warehouse and mobile POS applications. Intel Pentium N6415 processor, DDR4 RAM expandable to 16GB, integrated RFID/NFC reader.
- IP-54 rated, 1m drop resistance
- Integrated physical numeric keypad for fast operation, suitable for mobile POS/warehouse use
- Supports 13.56MHz RFID/NFC reader (ISO/IEC 14443 Type A&B)
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2 connectivity
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Or leave your phone number — an engineer will quote model G1017M within 4 working hours.
Industrial factors
| Operating temperature range | 0 ~ 40 °C |
|---|---|
| Power input | AC: 100~240VAC, 1.5A, 50-60Hz; DC out: 19VDC, 3.42A, 65W |
| Dimensions (mm) | 301 (W) x 187 (H) x 18 (D) |
| Weight (kg) | 1.06 |
| Vibration resistance | Operation: 20~1000Hz@1grms; Transportation: 20~1000Hz@3grms |
| IP protection rating | IP-54, 1m (3.3ft.) drop-resistance |
| Certifications | CE, FCC |
Computing
| CPU | Intel® Pentium N6415 |
|---|---|
| Storage | eMMC 64GB (integrated) · M.2 for storage device |
| GPU | Integrated Intel® UHD Graphics controller |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| LAN | 1× RJ-45 port (optional) |
|---|---|
| USB | 1× USB 3.0 Type-A · 1× USB Type-C (USB data transfer only) |
| Display outputs | 1× mini HDMI |
| Expansion | 1× microSD · 1× M.2 |
Display
| Screen size | 10.1" |
|---|---|
| Resolution | 1280 x 800 |
| Brightness (nit) | 350 |
| Touch | 10-point projected capacitive multi-touch |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (4 items)
| Adapter AC/DC, 19V, 3.42A, 65W, 1500mm, 2.5φ JACK | |
| Power cord: CBL,POWER,IEC320 C5 TO JP TYPE or CBL,POWER,QUEEN PUO TO EU TYPE | |
| G1052-HPC | Shoulder Strap Assy |
| DTC-1017 R0.1(T/R) | Cradle DTC-1017 R0.1(T/R) |
