- -20~70°COperating temp
- FanlessCooling
- 9–36 VDCPower input
- 4COM ports
- 3LAN ports

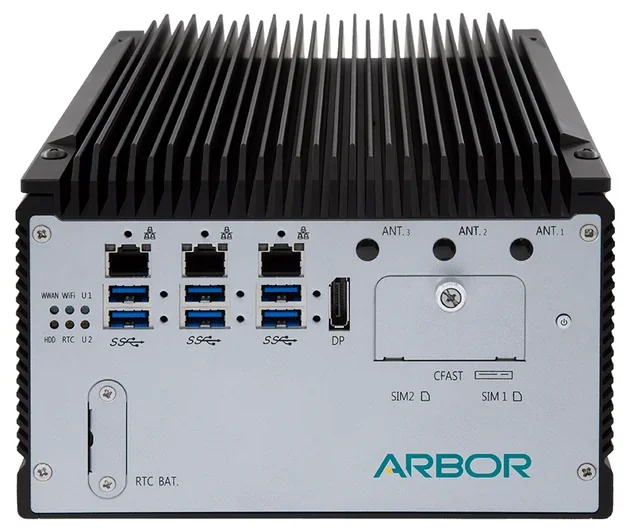

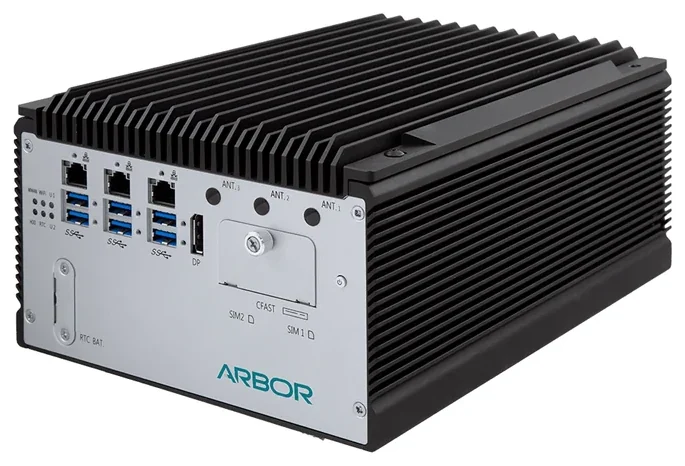

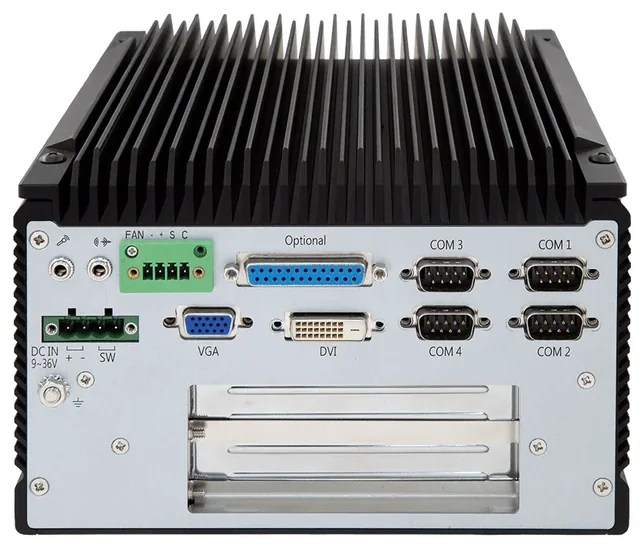

FPC-8213(W)
Fanless industrial computer with aluminum chassis, wide-range 9~36V DC input, operating temperature up to 70°C depending on CPU configuration, with 2 PCI slots for legacy expansion cards, suitable for industrial applications requiring compatibility with existing PCI devices.
- Fanless design, aluminum alloy chassis, wide-range 9~36V DC input
- Operating temperature -20~70°C (35W TDP CPU, fanless) or -20~55°C (65W TDP CPU, fanless)
- Vibration resistance 3 Grms/5~500Hz and shock resistance 40G (11ms) with SSD
- 2 PCI slots for legacy expansion cards, supports RAID 0/1
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -20 ~ 70 °C (-20~70°C ambient w/ air flow (CPU TDP 35W, fanless); -20~55°C (CPU TDP 65W, fanless)) |
|---|---|
| Power input | 9~36V |
| Power connector | 4-pin terminal block, combined with remote power on/off switch |
| Mounting | Wall-mount |
| Dimensions (mm) | 195 x 268 x 125 mm |
| Weight (kg) | 5.8 |
| Vibration resistance | 3 Grms/5~500Hz/random operation w/ SSD |
| Certifications | CE, FCC Class A |
Computing
| RAM | DDR5 SO-DIMM 4800/5600MHz · 2 slots · up to 96GB |
|---|---|
| Storage | 2× 2.5” drive bay (optional RAID0,1, BTO) · CFast socket (outside accessible) |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 2× RS-232/422/485 (DB-9, COM1-2) · 2× RS-232 (DB-9, COM3-4) |
|---|---|
| LAN | 3× 2.5GbE Intel® WGI226V |
| USB | 2× USB USB 3.2 Gen2 (10Gbps) · 4× USB USB 3.2 Gen1 (5Gbps) |
| DIO | 8 in / 8 out |
| Display outputs | 1× VGA (DB-15) · 1× DP · 1× DVI-D |
| Expansion | 1× mini-card (mPCIe) · 1× M.2 E Key · 1× M.2 B key · 2× PCI |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (8 items)
| PAC-120W6B-FSP-ES | 120W AC/DC 19V adapter kit w/ 2-pin/3-pin/4-pin block |
|---|---|
| PAC-180W6C-FSP-ES | 180W AC/DC 24V adapter kit w/ 2-pin/3-pin/4-pin block |
| WMK-7000 | Wall-mount kit for FPC-7XXX Series |
| 240GB SSD | Intel® 2.5” 240GB SATAIII SSD kit |
| MK-5C-8G/16G/32G/48G | DDR5-4800/5600 8GB/16GB/32GB/48GB SDRAM DIMM kit |
| WIFI-IN2550 | Intel AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires |
| ANT-H11 | 1 x 2dBi HSUPA antenna |
| ANT-D11 | 1 x Wi-Fi dual-band 2.4G/5G antenna |
