- 0~50°COperating temp
- IP65Ingress rating
- FanlessCooling

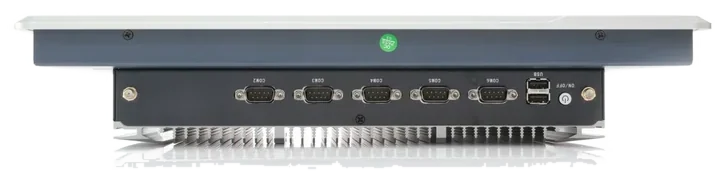

- 5COM ports

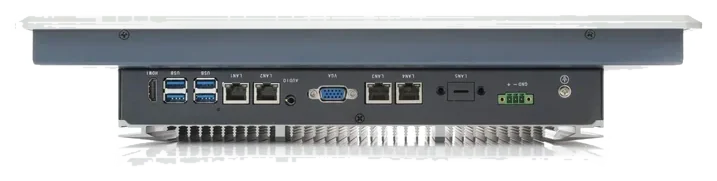

- 4LAN ports
EPC-S1722B
Industrial panel PC 17 inch, fanless design, front panel rated IP65, vibration-resistant 6063 aluminum alloy frame, 0~50°C operating range (optional -40~70°C). Supports 4 Gigabit LAN ports via CESIPC's LEGO Mode architecture. Equipped with Intel Celeron J1900 CPU.
- Front panel rated IP65
- 4 Gigabit LAN ports (Intel I210) via LEGO Mode architecture
- 6063 aluminum alloy frame, fanless design
- Operating range 0~50°C, optional extended -40~70°C
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | 0 ~ 50 °C (extended temperature -40~70°C optional) |
|---|---|
| Mounting | Wall Mount, VESA Mount |

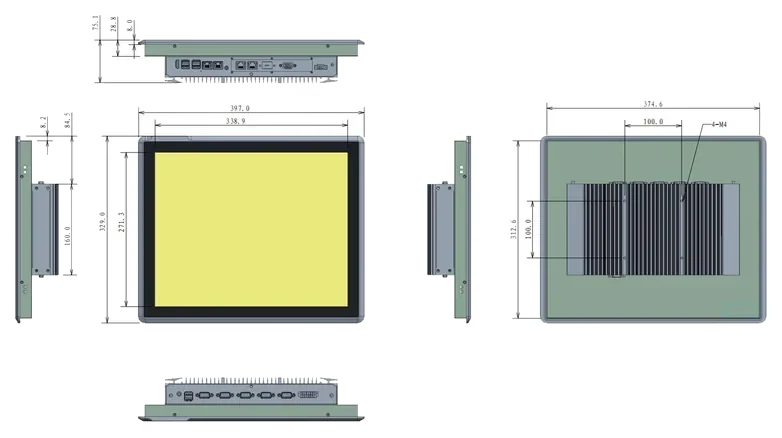

| Dimensions (mm) | 397.0(W)x329.0(D)x75.1(H) |
| Weight (kg) | 5.78 |
| IP protection rating | IP65 (front panel) |
| Certifications | CE, FCC (theo EN 55032 & EN 55035), EN IEC 61000-3-2, ISO9001:2015 |
Computing
| CPU | Celeron J1900 |
|---|---|
| RAM | DDR3L · up to 8GB |
| GPU | Intel HD Graphics |
| PCI/PCIe expansion slots | 0 |
Connectivity & I/O
| COM | 5× RS232 |
|---|---|
| LAN | 4× Gigabit Intel I210 |
| USB | 5× USB USB 2.0 · 1× USB USB 3.0 |
| Display outputs | 1× VGA · 1× HDMI |
Display
| Screen size | 17" |
|---|---|
| Resolution | 1024x768 (4:3) |
| Brightness (nit) | 300 |
| Touch | Projected Capacitive Touch (Resistive 5-wire optional) |
| Front IP rating | IP65 |
