EmETXe-i87M2-5700EQ

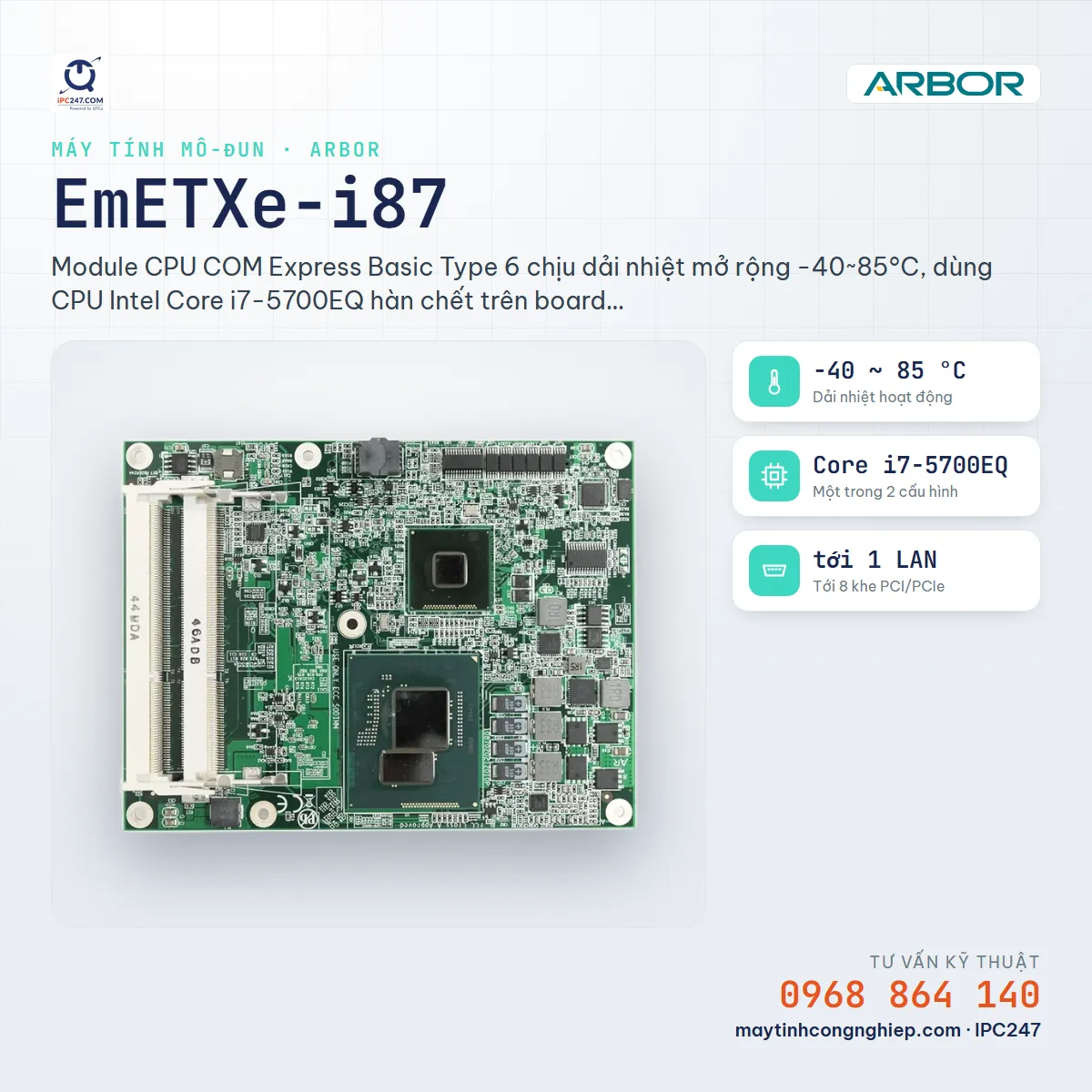

COM Express Basic Type 6 CPU module tolerating an extended -40~85°C temperature range, uses an Intel Core i7-5700EQ CPU soldered onboard, supports ECC RAM and 3 independent displays, suited for industrial equipment requiring high data reliability.
- Extended -40~85°C operating temperature range
- Supports ECC RAM (DDR3L)
- Supports 3 independent displays (dual 24-bit LVDS, Analog RGB, 3x DDI)
- Integrated Gigabit Ethernet
Contact us for a quote. We don’t have enough basis to publish a reference range for this model — we quote precisely once we know the configuration you need.
Industrial factors
| Operating temperature range | -40 ~ 85 °C |
|---|---|
| Power connector | COM Express connector |
| Dimensions (mm) | 125 x 95 |
Computing
| CPU | Intel Core i7-5700EQ |
|---|---|
| Chipset | Intel PCH QM87 |
| Socket | soldered onboard (no socket) |
| RAM | DDR3L 1600MHz · 2 x SO-DIMM slots · up to 16GB |
| Storage | 4× SATA - 2 ports 600MB/s + 2 ports 300MB/s, RAID 0/1/5/10 supported |
| GPU | Intel HD Graphics Gen 7.5 (integrated) |
| PCI/PCIe expansion slots | 7 |
Connectivity & I/O
| LAN | 1× Gigabit Intel i218LM PCIe GbE PHY |
|---|---|
| USB | 8× USB USB 2.0 · 4× USB USB 3.0 |
| Display outputs | 1× LVDS 24-bit (dual channel) · 1× Analog RGB · 3× DDI |
| Expansion | 1× PCIe x16 Gen3 · 6× PCIe x1 Gen2 |
Need a complete-set price with RAM, storage and mounting accessories for this model? Leave your number — an engineer will reply within 4 working hours.
We only use this number to answer your request.
Optional accessories & modules (3 items)
| HS-87M2-C2 | Cooler 125x95x34mm |
|---|---|
| PBE-1702 | COM Express Type 6 evaluation carrier board (ATX form factor) |
| CBK-04-1702-00 | Cable kit: 1x SATA cable, 2x COM-port cables, 1x USB cable |
