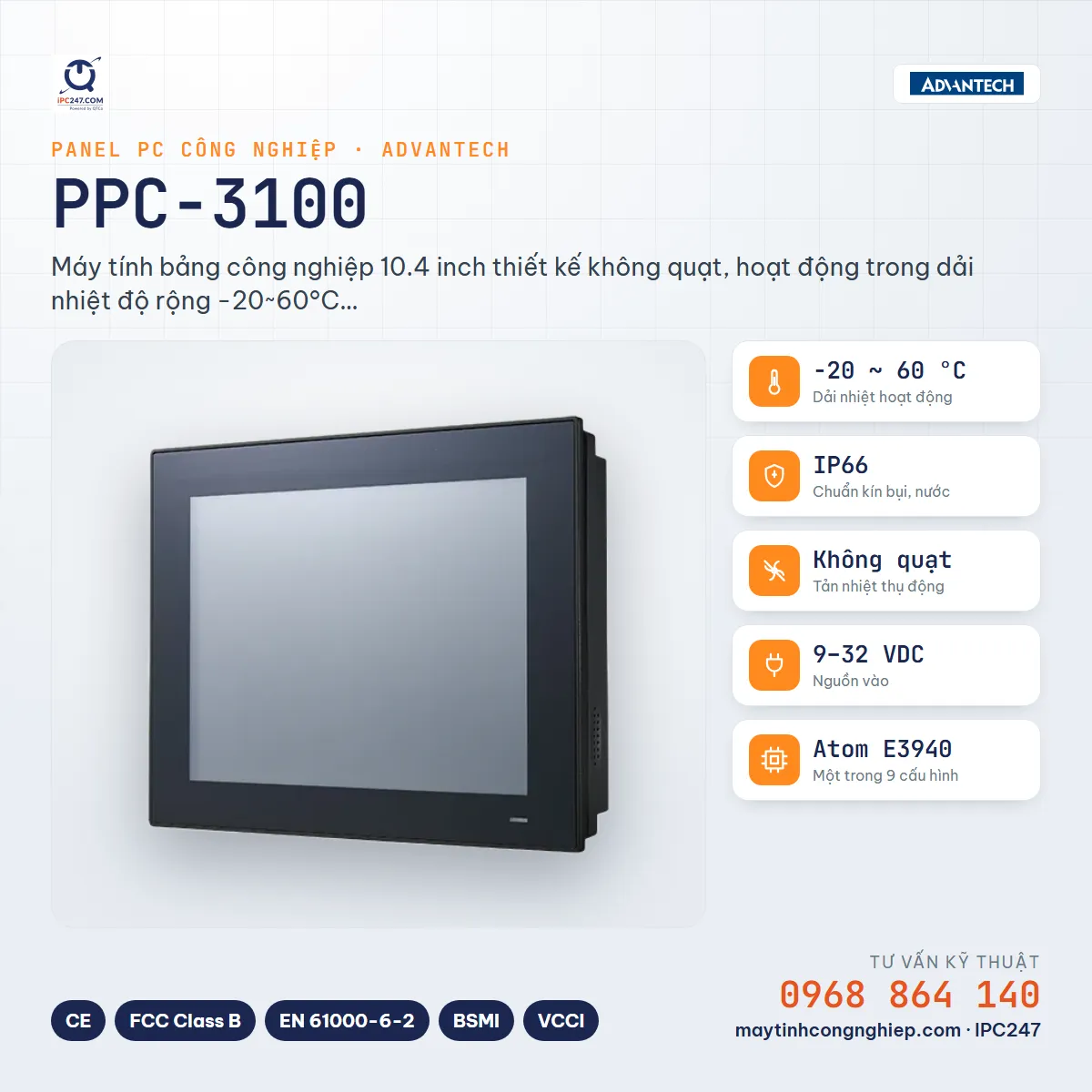

MaytinhcongnghiepPPC-3100
One series, 9 configurations. The configurations differ in 5 screen sizes, 6 CPU options, 2 touch types — everything else is identical.
Display and computer in one unit, mounted straight onto the cabinet face.
- -20~60°COperating temp
- IP66Ingress rating
- FanlessCooling
- up to 6COM ports
- up to 2LAN ports
- up to 1PCIe slots
True for every configuration in the series
The items below stay the same whichever configuration you pick — no need to re-check after choosing.
- LAN ports
- 2 ports
- Power over Ethernet
- No PoE
- Digital I/O (DIO)
- No
- Cooling
- Fanless (passive)
Choose a configuration
Filter quickly, then click a model number for the full specs. Not sure which one, send us your installation conditions and our engineers will pick for you.
Showing 9 / 9 configurations
| Select for comparison | Model number | Display | CPU | Environment | Ports · I/O | Reference price |
|---|---|---|---|---|---|---|
| PPC-3100-RE9B | 10.4″ · 800 x 600 400 nit · Resistive | Atom E3940 | -20~60°C · IP66 (FRONT PANEL) Fanless · 9–32 VDC | 5 COM · 2 LAN — | ||
| PPC-3100S-PC | 10.4″ · 1024 x 768 350 nit · Capacitive | Celeron N2930 | 0~50°C · IP66 (FRONT PANEL) Fanless · 12–24 VDC | 2 COM · 2 LAN — | ||
| PPC-3100S-RB | 10.4″ · 800 x 600 400 nit · Resistive | Celeron N2930 | 0~50°C · IP66 (FRONT PANEL) Fanless · 12–24 VDC | 2 COM · 2 LAN — | ||
| PPC-3120-RE9B | 12.1″ · 1024 x 768 600 nit · Resistive | Atom E3940 | -20~60°C · IP66 (FRONT PANEL) Fanless · 9–32 VDC | 5 COM · 2 LAN — | ||
| PPC-3150-RJ90B | 15″ · 1024 x 768 300 nit · Resistive | Celeron J1900 | 0~50°C · IP65 (FRONT PANEL) Fanless · 12–24 VDC | 6 COM · 2 LAN — | ||
| PPC-3150SW-PN4B | 15.6″ · 1366 x 768 400 nit · Capacitive | Pentium N4200 | 0~50°C · IP66 FRONT PANEL Fanless · 12–24 VDC | 2 COM · 2 LAN — | ||
| PPC-3151W-P75A | 15.6″ · 1920 x 1080 450 nit · Capacitive | Core i5-7300U | 0~50°C · IP66 FRONT PANEL Fanless · 9–32 VDC | 3 COM · 2 LAN · 1 PCIe — | ||
| PPC-3151W-P77A | 15.6″ · 1920 x 1080 450 nit · Capacitive | Core i7-7600U | 0~50°C · IP66 FRONT PANEL Fanless · 9–32 VDC | 3 COM · 2 LAN · 1 PCIe — | ||
| PPC-3180SW-PN4B | 18.5″ · 1366 x 768 450 nit · Capacitive | Pentium N4200 | 0~50°C · IP66 (FRONT PANEL) Fanless · 12–24 VDC | 2 COM · 2 LAN — |
No configuration matches these filters. Remove a condition, or ask an engineer — the version you need may be orderable even if it is not on the site.
Tick 2–3 configurations in the first column to put them side by side — the comparison page highlights exactly the cells that differ, so you don’t have to scan every row.
Not sure which configuration fits?
Describe the installation site — temperature, vibration, power supply, devices to connect — and IPC247 engineers will build a complete configuration for those conditions.
